Transparency
Social-Emotional
the transparency makes possible cooperation and communication throughout, all important life-skills for children to learn.
14 meters of jumping heaven! The Small Suspension Bridge is an immediate attraction for children of all ages, it is the wildest, bouncy running track there is. Children will repeatedly...
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
1493 cm
Width
384 cm
Height
417 cm
14 meters of jumping heaven! The Small Suspension Bridge is an immediate attraction for children of all ages, it is the wildest, bouncy running track there is. Children will repeatedly jump, run and bounce over the bridge. There is room for breaks, too, seated, standing or even lying. The open sides allows for jumping in and out. Apart from training cardo, jumping and other weight bearing activities build bone density which is built up during childhood to last the entire life. As bones will get brittle with time, children should take any chance to jump and run. On the Small Suspension bridge, this is made fun and playful. The bouncy membrane makes children feel the movements of all the other children on it, thanks to the sturdy rope suspensions. This enhances the awareness and consideration of others, both important social skills.
This product, Small Suspension Bridge, 14m (COR62140), is provided by KOMPAN Canada.
Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armouring made of woven polyester. The armouring and the two surface layers result in a total thickness of 7.5 mm.
The steel structure are hot dip galvanised inside and outside with lead free zinc. The galvanisation has excellent corrosion resistance in outside environments and requires low maintenance.
Through KOMPAN Variant Team, you can choose between additional 7 rope colours and customize your solution. The assortment is a wide span of colours ranking from elegant and expressive black or natural and toned-down hemp colour, to a range of attractive and eye-catching signal colours.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR621401-1101
2596.06
Total CO₂ emission (kg CO₂e)
3.25
CO₂e/kg (kg CO₂e/kg)
37.24%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
COROCORD™ rope playground
Product line
COROCORD™ Play Bridges
Product number
COR62140
Activities
Balance
Bounce
Sensory
Socialize
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)
Dimensions
Length
1493 cm
Width
384 cm
Height
417 cm

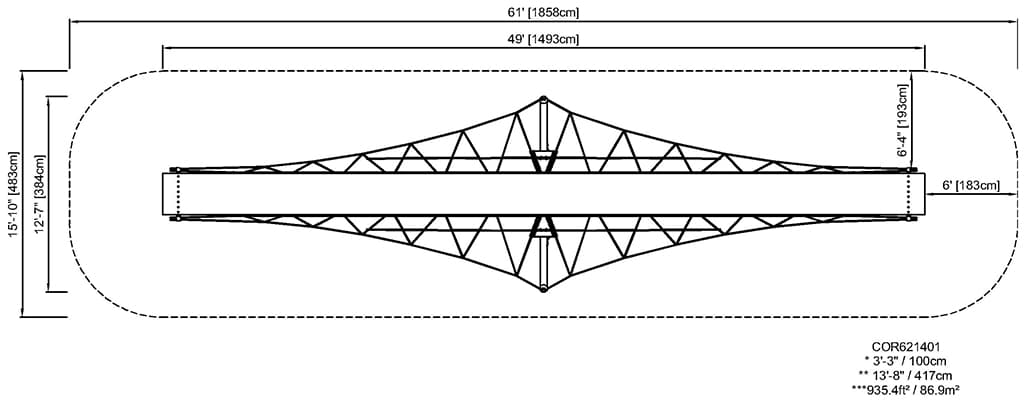

Safety Zone Length
1858 cm
Safety Zone Width
483 cm
Warranties and certificates
Corocord rope
10 years
S-Clamps
10 years
Hot dip galvanised steel
Lifetime
Membrane
2 years
Spare parts guaranteed
10 years
Certificates
(CSA) CSA Z614 - COMPLIANT
Installation information

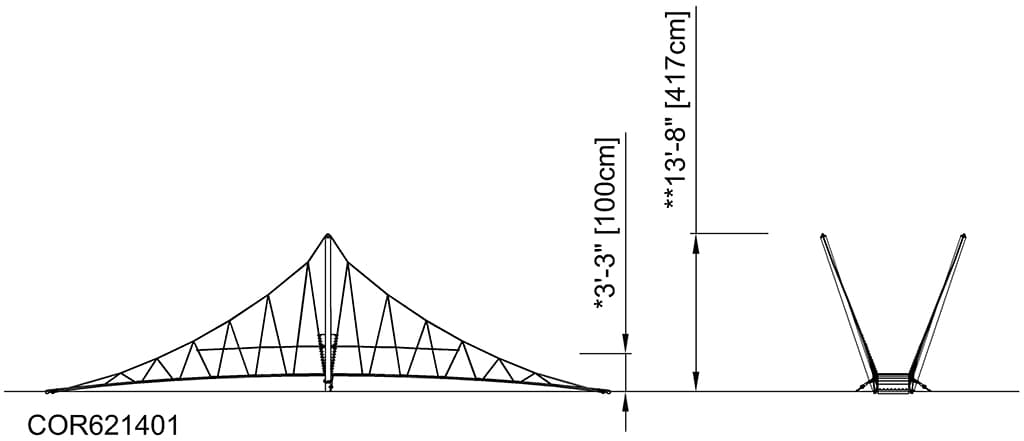

Max. fall height
100 cm
Safety surfacing area
86.9 m²
Anchoring options
In-ground
Downloads
Tender specifications
Looking for tender specifications for this product?
