GXY960

Supernova

QR Code for Kompan EN/INT frontpage

Try our AR-app

Supernova

Colour LIME

Loading Designer

GXY960

Supernova

  • Gallery
  • Play values
  • Specifications
  • Features
The large, slanting, rotating ring with 7 divided areas motivates children to explore Supernova's countless play options: turning, spinning, balancing – seated, lying, standing, alone or with friends. The 7 areas of the ring inspire a multitude of different games-with-rules. The many play opportunities and the open ground level design makes it possible for all abilities to be included in play. Rough-and-tumble play is on, and the pushing of the ring and running train the children's arm and leg muscles and cardio. The jumping on and off of the rotating ring builds bone density. The Supernova trains the sense of balance and space, which is crucial for being able to sit still or navigate traffic safely. Children help one another and invent games. These stimulate the child's social-emotional skills and cognition, empathy, cooperation skills and logical thinking.

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

7 departments/rings

Social-Emotional

turn-taking and cooperation when finding new games. One different colored part makes it possible to count rounds when running, encouraging positive competition. The division into ring sections designates personal space for users who need that.

Cognitive

games-with-rules gets invented, which promotes logical thinking.

Slanting ring

Physical

the inclination develops the sense of balance and muscle strength when walking upwards or pushing the ring into motion. Bone density is built when jumping on and off. Furthermore the cardio gets used when pushing, running. The grooves support grip.

Social-Emotional

the round shape allows assistance all over.

Rotation and gravity

Physical

balance and coordination is used to stay on the ring in motion and walking up- or downwards. This also trains leg and core muscles.

Social-Emotional

cooperation setting the ring in motion. The round shape allows assistance from all sides.

Cognitive

logical thinking, working with gravity when figuring out how to stay on the ring or make it move faster.

Low entry

Social-Emotional

accessible and usable for all abilities and a wide age span.

4 - 12 Years8 Users

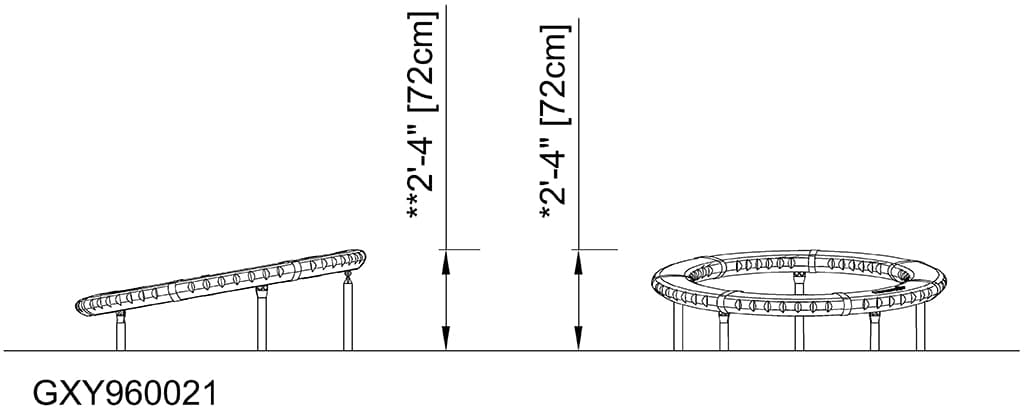

Side View (image)
Foot Print (image)

Length

208 cm

Width

208 cm

Height

72 cm

Specifications

The large, slanting, rotating ring with 7 divided areas motivates children to explore Supernova's countless play options: turning, spinning, balancing – seated, lying, standing, alone or with friends. The 7 areas of the ring inspire a multitude of different games-with-rules. The many play opportunities and the open ground level design makes it possible for all abilities to be included in play. Rough-and-tumble play is on, and the pushing of the ring and running train the children's arm and leg muscles and cardio. The jumping on and off of the rotating ring builds bone density. The Supernova trains the sense of balance and space, which is crucial for being able to sit still or navigate traffic safely. Children help one another and invent games. These stimulate the child's social-emotional skills and cognition, empathy, cooperation skills and logical thinking.

This product, Supernova (GXY960), is provided by KOMPAN Canada.

Key Features

GXY_Supernova angle

The Supernova is a unique carousel with no centre point placed in an angle of 10° which makes it turn when children walks the ring. The outside ring diameter is 208cm and the upper point is 60cm above ground level.

GXY_Segments

The 7 ring segments are made of low density PE made from 33% post-consumer recycled materials with excellent impact strength and usable within a large temperature span. Each segment has integrated handholds on both sides and non-skid top surface for safe usage.

GXY_Roller system

The Supernova is designed with a lifetime lubricated maintenance free roller system of vertical and horizontal rollers. The roller system is fully closed and sealed by two rubber lists.

GXY_Legs

The Supernova is designed with 5 legs with hot dip galvanised surfacing treatment. The galvanisation has excellent corrosion resistance in outside environments and requires low maintenance.

PE Sand Stone Material Text

The sand colored variant is made of rotomolded stone mixed PE made from 33% post consumer materials with a non skid surface texture. Minor differences in the stone mix visuality of the material are to be expected.

Dynamic greenline

GreenLine versions in teal color are designed with molded PE parts which consist of 33% recycled post-consumer ocean waste. Ocean waste is collected from the maritime industry, such as fishing nets, ropes and trawls.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

GXY960012-3417

427.58

Total CO₂ emission (kg CO₂e)

2.82

CO₂e/kg (kg CO₂e/kg)

44.71%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
