Curved climbing wall
Physical
children develop their cross-body coordination, proprioception and leg, arm and hand strength. Climbing on a curved surface challenges muscles.
With its quirky angles and shapes, KUMA encourages exploration amongst 6-12 year-olds. The curved climbing structure has varying degrees of difficulty and intensely trains children's coordination, proprioception, and sense of...
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
723 cm
Width
281 cm

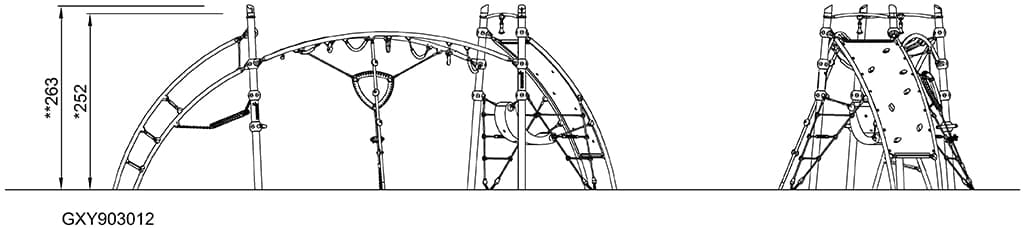

Height
265 cm
With its quirky angles and shapes, KUMA encourages exploration amongst 6-12 year-olds. The curved climbing structure has varying degrees of difficulty and intensely trains children's coordination, proprioception, and sense of balance, and fine motor skills. The curved climbing wall with colour spotted cleats encourages children to race to the top. Explorers are then presented with the opportunity to hang out with friends in the gently-rocking Playshell seat or to tackle the overhead cable ladder to balance on the triangular rocking frames.
This product, Kuma (GXY903), is provided by KOMPAN Australia.
The steel surfaces of GALAXY are hot-dip galvanised inside and outside with lead-free zinc. The galvanisation has excellent corrosion resistance and requires low maintenance.
More substantial play activities are made of 100% recyclable PE. The play shell displayed is moulded in one piece with a minimum 5mm wall thickness. PE has high impact resistance across a wide temperature span which ensures vandal resistance in all locations.
GALAXY climbing triangle with an outer soft layer of PUR and corner brackets of moulded nylon (PA6). The core consists of a powder-coated welded steel frame with integrated corner suspension points. Larger triangles are closed with an 18mm thick Ekogrip® panel that has a top layer of rubber with a non-skid effect.
The curved climbing wall is manufactured from a steel frame and an Ekogrip® panel with unique designed climbing cleats. The Ekogrip® panel is constructed from a 5mm thick PE base with 3 mm top-layer of rubber with a non-skid effect.
The unique designed GALAXY connection ball is produced with an inner circular core of aluminium surrounded by a shell of hard PP with an outer layer of soft TPV rubber. Flexible lead-free aluminium connectors allow for installation in variable angles.
Galaxy products are available in different colour combinations with either hot-dip galvanised steel surface treatment or a powder-coated finish to selected steel components. Colours of the activities are adjusted to support the individual colour combination.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
GXY903012-3717
1747.7
Total CO₂ emission (kg CO₂e)
3.42
CO₂e/kg (kg CO₂e/kg)
35.84%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
6+ Years
Key user group
6 - 12 Years
Capacity
Inclusive
No
Product category
Play Systems
Product line
GALAXY™
Product number
GXY903
Activities
Balance
Climb
Hang in arms
Pull
Sensory
Socialise
Sway
Wonder
Dimensions
Length
723 cm
Width
281 cm
Height
265 cm

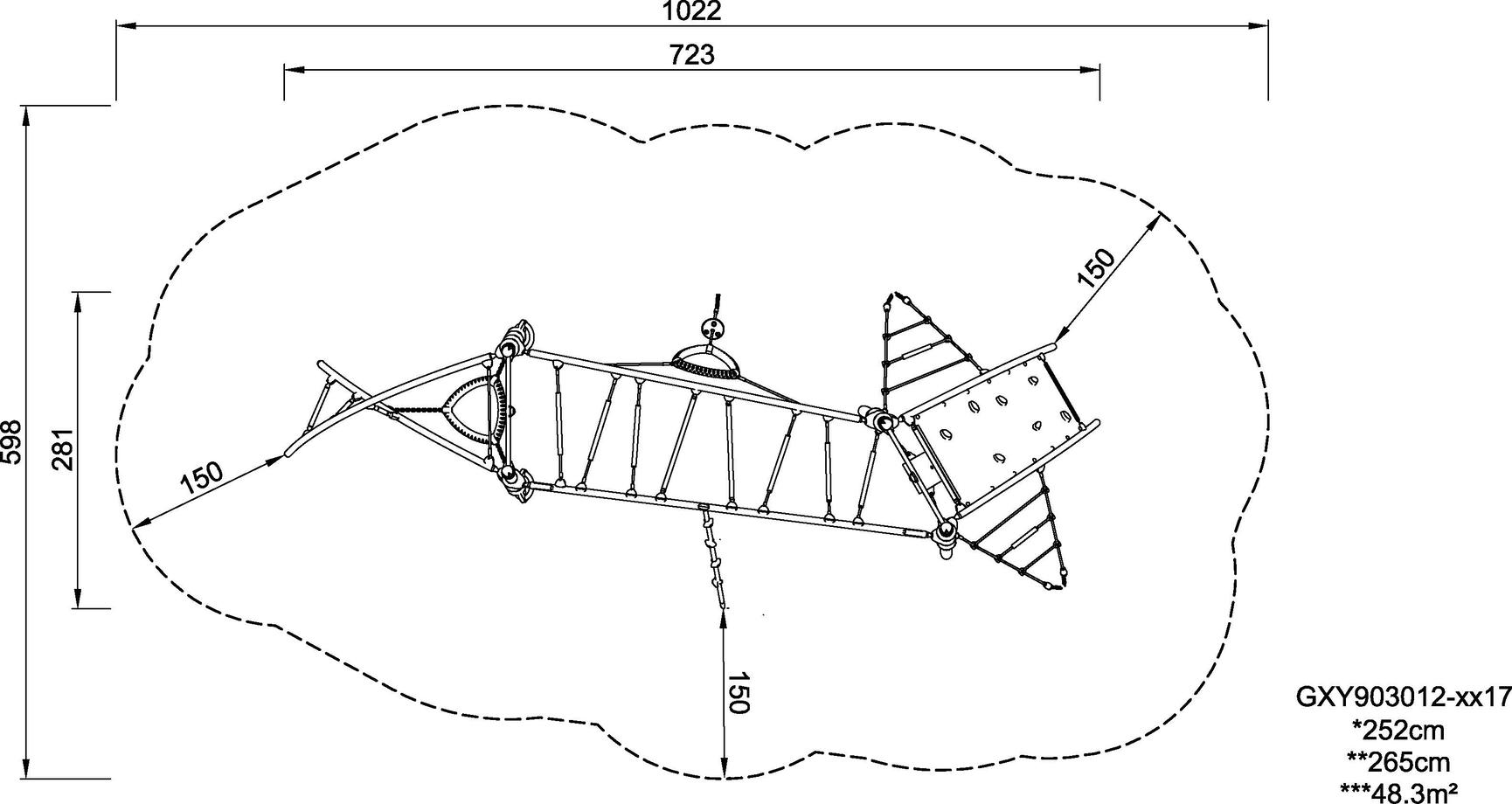

Fall Space Length
1022 cm
Fall Space Width
598 cm
Warranties and certificates
Galvanised Steel
Lifetime
PUR Components
10 years
Galaxy connection ball
5 years
Ropes & Nets
10 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Max. fall height
252 cm
Fall space area
48.3 m²
Anchoring options
In-ground, Surface
Downloads
Tender specifications
