Net bridge, inclined
Physical
walking the open net up or downwards develops balance, spatial awareness and cross coordination.
Social-Emotional
interaction with children outside, socialising. Cooperation and consideration, e.g. when passing others.
This four-tower play structure offers varied creative play for a lot of children. The first tower can be reached via an inclined climbing wall with steps offering a supported climb...
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
513 cm
Width
337 cm

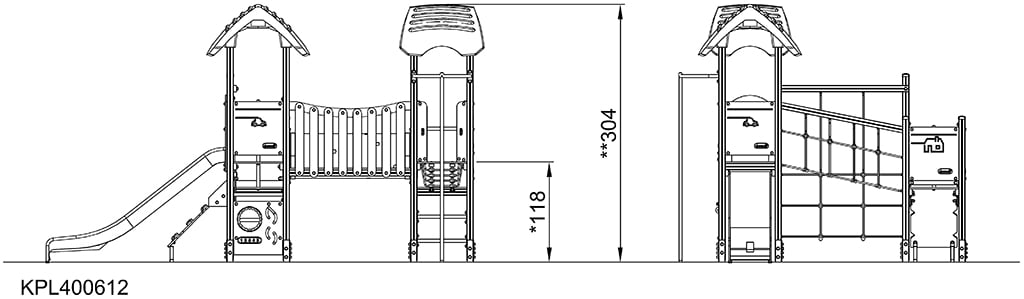

Height
304 cm
This four-tower play structure offers varied creative play for a lot of children. The first tower can be reached via an inclined climbing wall with steps offering a supported climb up to a higher level. From here a tunnel leads to the play net up to the next level. The fireman's pole offers a fast egress to the ground. Alternatively, a bridge can be crossed from where a classic slide can take the child to the ground or the child can pass the net with big meshes back to start. The level changes and inclinations of the structure train the child's sense of balance and spatial awareness which are crucial for judging distances in day-to-day life, for instance, when crossing the road.
This product, Four Tower w. Climbing Wall, Tunnel & Bridges (KPL4006), is provided by KOMPAN Australia.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of a core produced from 100% recycled material.
The main tower posts are available in two types of material: European pine wood posts pressure impregnated Class 3 with Tanalith E preservative, or aluminium with an anodised surface treatment.
Floors and panel activities are manufactured from high-pressure laminate HPL with a thickness 17.8mm and non-skid surface texture.
The large hollow components are made of 100% recyclable PE. The roof displayed is moulded in one piece with minimum 5,5mm wall thickness to ensure high durability in all climates around the world.
The slides can be chosen in six different colours and three materials: Straight or curved one-piece moulded PE slides, made from 33% recycled post-consumer materials in different colours. Combined EcoCore™ sides and stainless-steel. Full stainless steel in one piece design for more vandalism proof solutions.
Climbing nets are made of UV-stabilised PP rope with inner steel cable reinforcement. The rope is induction treated to obtain maximum fixation between steel and rope, which provides excellent wear and tear resistance. All rope connectors are made of 100% recyclable PA material.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
KPL400611-0901
748.57
Total CO₂ emission (kg CO₂e)
1.51
CO₂e/kg (kg CO₂e/kg)
32.89%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
2+ Years
Key user group
2 - 6 Years
Capacity
Inclusive
No
Product category
Play Systems
Product line
Simply Play
Product number
KPL4006
Activities
Balance
Climb
Construct
Crawl
Glide
Hang in arms
Jump
Sensory
Slide
Socialise
Wonder
Dimensions
Length
513 cm
Width
337 cm
Height
304 cm

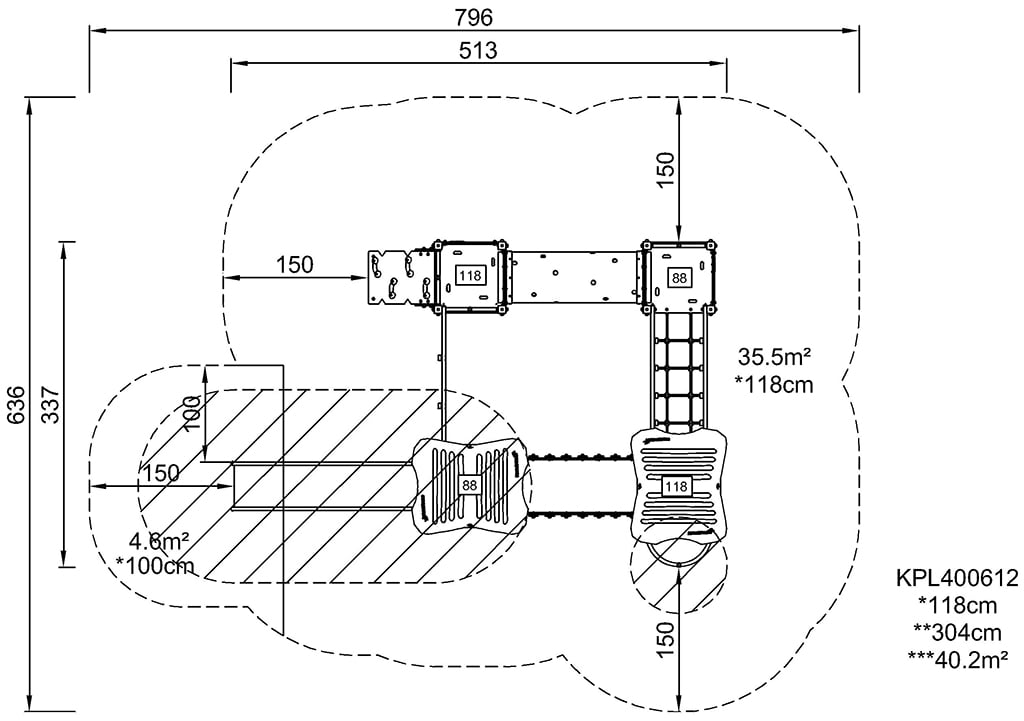

Fall Space Length
846 cm
Fall Space Width
636 cm
Warranties and certificates
EcoCore HDPE
Lifetime
Aluminum
15 years
Pinewood
10 years
Ropes & Nets
10 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Max. fall height
118 cm
Fall space area
40.2 m²
Anchoring options
In-ground, Surface
Downloads
