The playground swing is an ultimate favourite as it can be done individually or together with friends! This swing set combines that joy and adds the possibility of different body positions and group sizes with two single swing seats and one nest swing seat. Swinging trains the children's ABC: agility, balance, and coordination, as well as their spatial awareness. All seats on this frame allow for standing sitting, lying, and jumping off. All these activities support the development of arm, leg, and core muscles and building bone density – the majority of which are built up during the first years of life.
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
balance, coordination and spatial awareness are developed when swinging. The swinging movement trains the arm, leg and core muscles.
the spacious seat allows for many children standing, lying, seated together and is inclusive for all.
'Cause and effect' understanding, rhythm and thinking skills are developed in younger children.
balance, coordination and spatial awareness are trained when swinging. All necessary when judging distances and managing traffic safely.
parallel play invites cooperation and consideration.
'Cause and effect' understanding, managing rhythm and thinking skills for younger children when swinging. Rules games for bigger children.

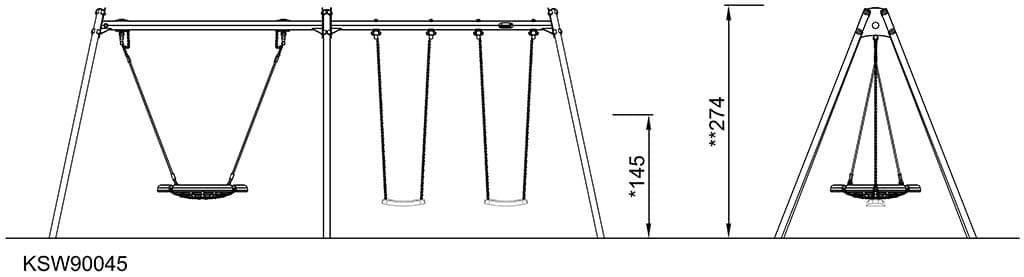

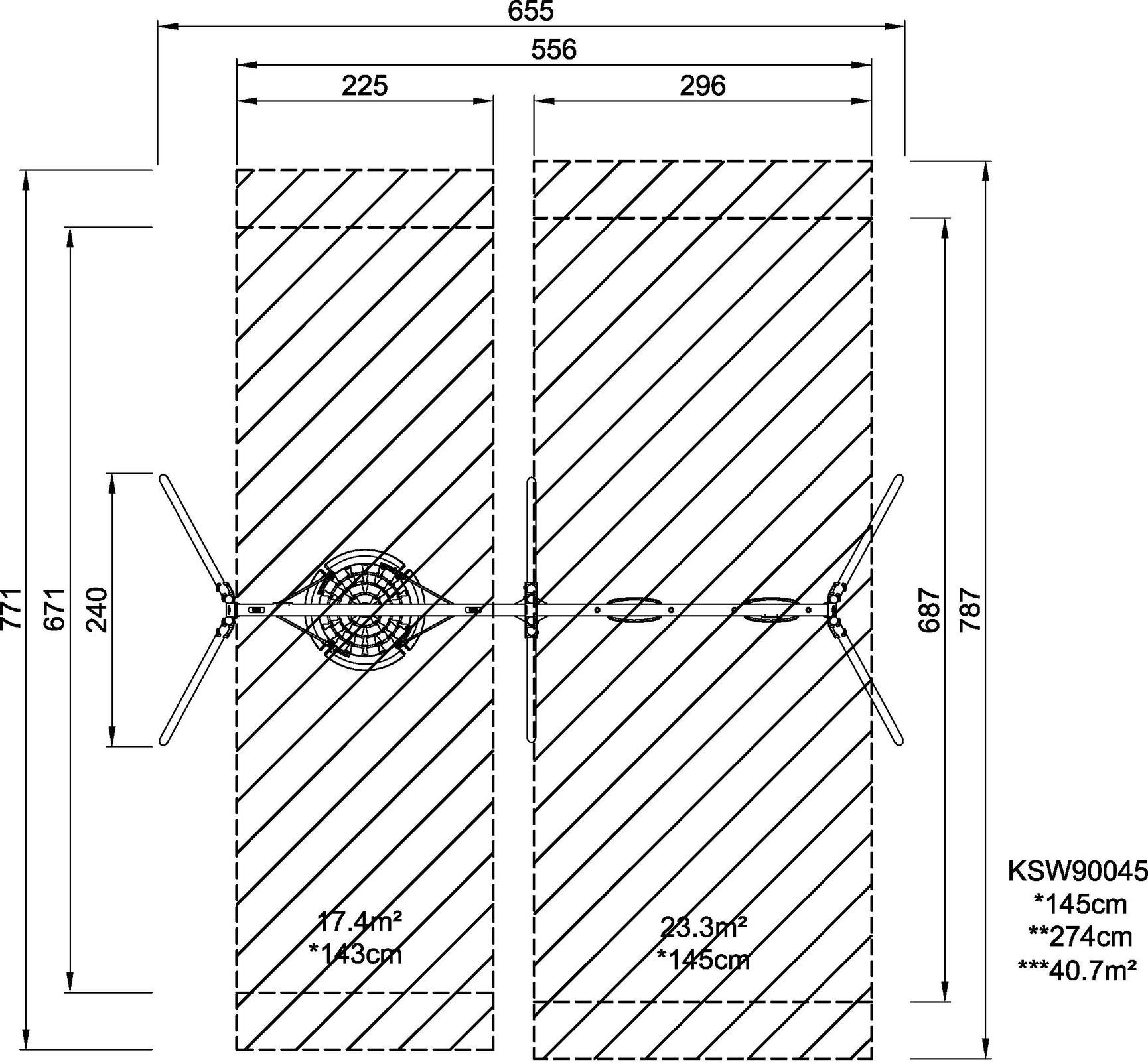

Length
655 cm
Width
240 cm
Height
274 cm
The playground swing is an ultimate favourite as it can be done individually or together with friends! This swing set combines that joy and adds the possibility of different body positions and group sizes with two single swing seats and one nest swing seat. Swinging trains the children's ABC: agility, balance, and coordination, as well as their spatial awareness. All seats on this frame allow for standing sitting, lying, and jumping off. All these activities support the development of arm, leg, and core muscles and building bone density – the majority of which are built up during the first years of life.

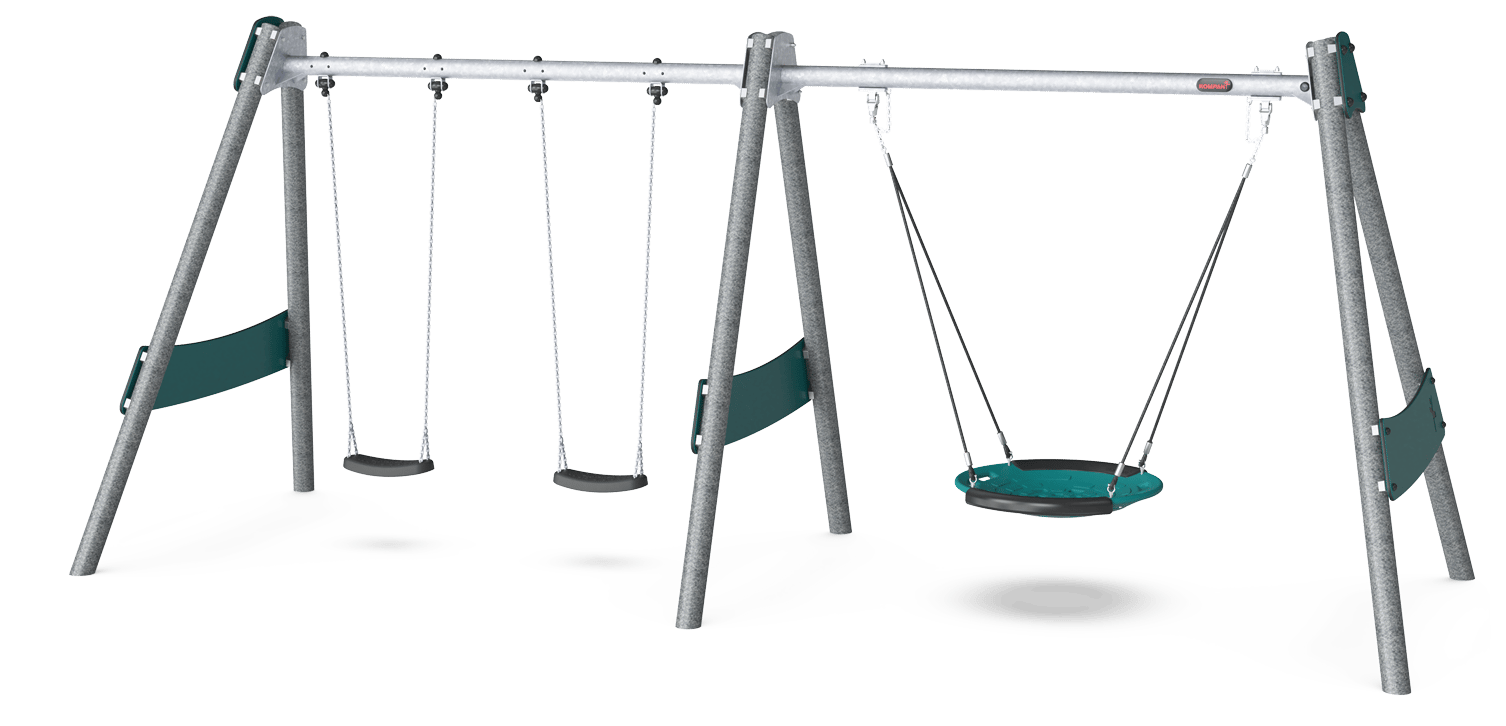

This product, Combi Swing H:2.5m, 100cm Seat (KSW90045), is provided by KOMPAN Australia.
The A-Frame is available with tree post material options: Hot dip galvanized ø70mm steel, impregnated pine wood 95x95mm with hot dip galvanized steel footings or ø120mm TexMade™ posts.
The A-Frame is designed with hot dip galvanized ø100mm crossbar with large steel end plates for strong fixation to the posts. The crossbeam is prepared for all KOMPAN hanger options.
The swing hangers are made of high-quality UV-stabilised nylon (PA6) housing with integrated lifetime sealed ball bearings. The adjustable chains are fixed by a stainless steel hook with a theft-proof snake-eye bolt which is manufactured within an anti-twist house. All seats are fixed with two chains and are available with either standard or anti-wrap suspension.
KOMPAN's swing hangers are heavy-duty and designed with stainless steel and anti-twist functions. The hangers attach to the cross beam on a welded bracket with two bolts. The bearings are embedded with silicone lubricant and need no further lubrication; ensuring low maintenance.
KOMPAN's bird's nest seats have been designed to be light in weight and compliant with global safety standards. The soft, shock-absorbent bumpers has a non-slip surface, making the swing seat extremely user friendly. You can choose between a rope version with reinforced PA rope or a moulded PE version.
KOMPAN GreenLine versions are designed with ultimate environmentally friendly materials with lowest possible CO2e emission factor. TexMade post, EcoCoreTM panels of 95% post-consumer recycled waste and molded PP decks.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
KSW90045-0950
432.33
Total CO₂ emission (kg CO₂e)
1.13
CO₂e/kg (kg CO₂e/kg)
79.2%
Recycled materials
CO₂ friendly
KSW90045-0909
773.2
Total CO₂ emission (kg CO₂e)
3.07
CO₂e/kg (kg CO₂e/kg)
45.46%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
