Platform
Social-Emotional
courage, self-confidence, consideration and turn-taking are built when children share the platform.
Large elevated square start platform with capacity for many waiting users. The long run-up ramp ensures easy access up to the start area when returning the seat to the next...
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
119 cm
Width
316 cm
Height
170 cm
Large elevated square start platform with capacity for many waiting users. The long run-up ramp ensures easy access up to the start area when returning the seat to the next user. The platform is designed to be used for cableways installed on flat surroundings.
This product, Cableway Start Platform (PCM114321), is provided by KOMPAN Australia.
Main posts with hot dip galvanized steel footing are available in different materials: Pressure impregnated pine wood posts. Pre-galvanized inside and outside with powder coated top finish steel posts. Lead free aluminum with color anodized top finish. Greenline TexMade posts of 95% post-consumer recycled PE and textile waste.
All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options. The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.
The steel surfaces are hot-dip galvanised inside and outside with lead-free zinc. The galvanisation has excellent corrosion resistance in outside environments and requires low maintenance.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of a core produced from 100% recycled material.
The ramp deck is made of High Pressure Laminate HPL with a thickness 17.8mm and non skid surface texture according to EN 438-6. KOMPAN HPL has high wearing strength to ensure long lifetime in all climates.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
PCM114321-0901
360.54
Total CO₂ emission (kg CO₂e)
2.22
CO₂e/kg (kg CO₂e/kg)
41.14%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
4+ Years
Key user group
4 - 12 Years
Inclusive
No
Product category
Freestanding Play Equipment
Product line
Cableways & Flying Foxes
Product number
PCM114321
Dimensions
Length
119 cm
Width
316 cm
Height
170 cm

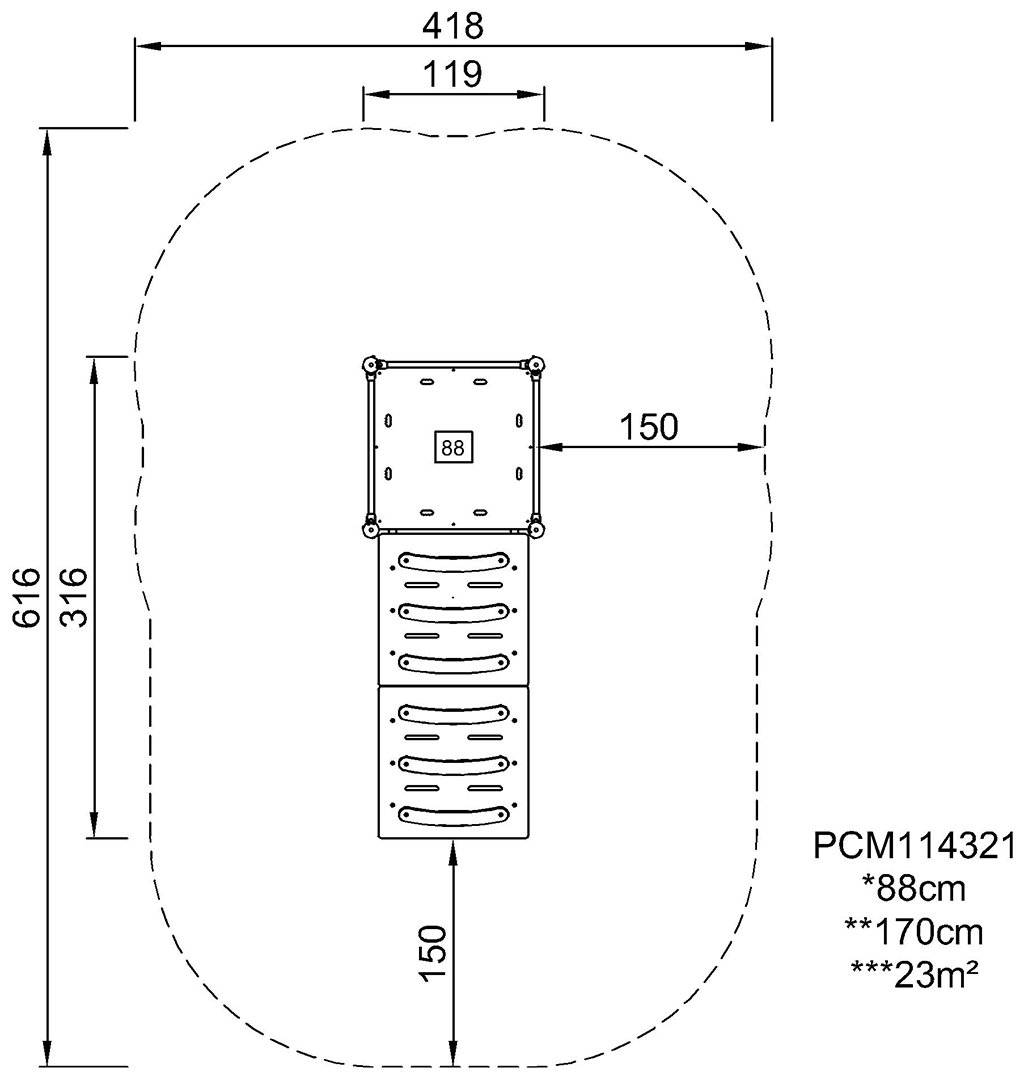

Fall Space Length
616 cm
Fall Space Width
418 cm
Warranties and certificates
Galvanised Steel
Lifetime
Post
10 years
EcoCore HDPE
Lifetime
PP Decks
10 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information

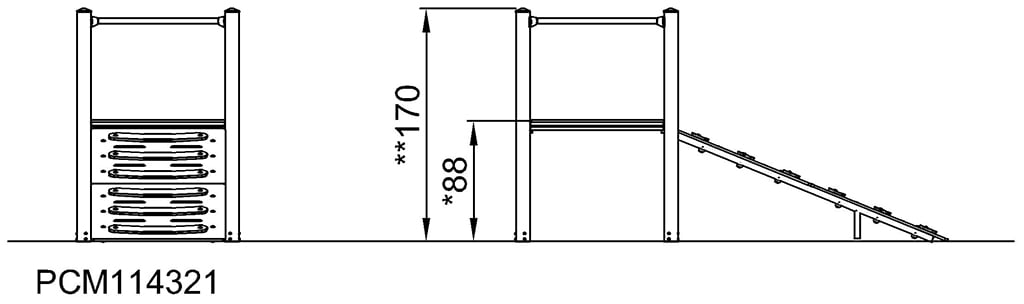

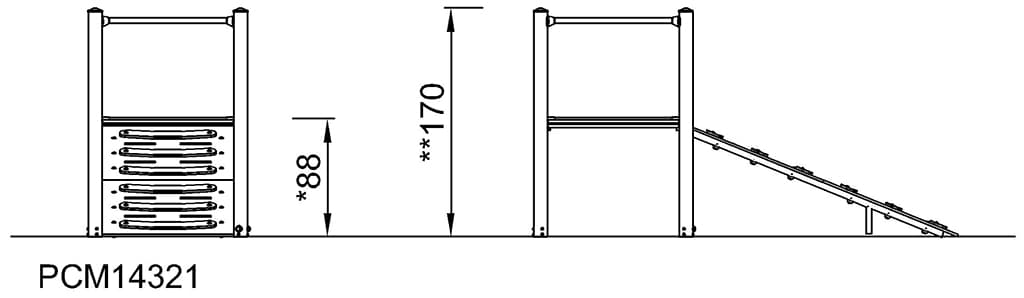

Max. fall height
88 cm
Fall space area
23 m²
Anchoring options
Surface, In-ground
Downloads
