Slide
Physical
develops spatial awareness, sense of balance and trains core muscles when sitting upright going down.
Social-Emotional
empathy stimulated by turn-taking.
The four tower play universe is a magnet for climbing, balancing and rough-and-tumble play. Its transparency and play variation is a haven for older children. The transparency makes it possible...
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

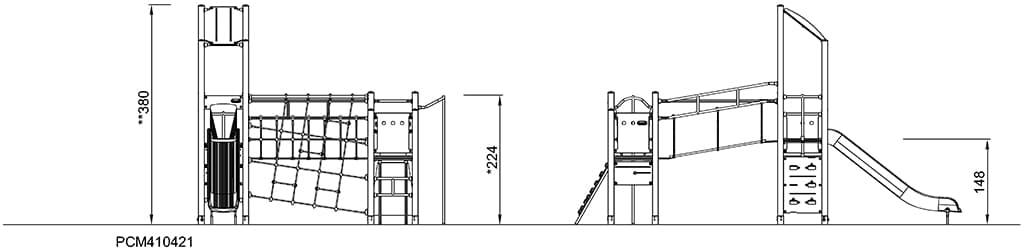

Length
428 cm
Width
669 cm
Height
380 cm
The four tower play universe is a magnet for climbing, balancing and rough-and-tumble play. Its transparency and play variation is a haven for older children. The transparency makes it possible to see all the other children playing, stimulating social interaction and positive competition, making play last for longer. The longer children are playing new games are created such as, do-not-touch-the-ground meaning children test out a wide scope of physical competencies and social skills. The variety of nets and balance links challenge children's agility, balance and cross-coordination whilst allowing for more children to play together in groups. There are varied entry points to the tower, from the fast access stairs and climbing wall to the inclined crawling access, which ensures the tower is suitable for a variety of ages and user abilities.
This product, Four Tower with Bridges (PCM410421), is provided by KOMPAN Australia.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of a core produced from 100% recycled material.
All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options. The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.
Main posts with hot dip galvanized steel footing are available in different materials: Pressure impregnated pine wood posts. Pre-galvanized inside and outside with powder coated top finish steel posts. Lead free aluminum with color anodized top finish.
Activities are made of high-quality stainless steel which is cleaned by a total pickling process after manufacturing to ensure a smooth and clean gliding surface.
The slides can be chosen in six different colours and three materials: Straight or curved one-piece moulded PE slides, made from 33% recycled post-consumer materials in different colours. Combined EcoCore™ sides and stainless-steel. Full stainless steel in one piece design for more vandalism proof solutions.
Wood version of FSC®-certified (FSC®C004450) pine wood with pressure impregnated base treatment and brown painted top finish. Vertical boards and top ends protected by a unique aluminum profile for high outdoor durability.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
PCM410421-0951
1314.1
Total CO₂ emission (kg CO₂e)
1.73
CO₂e/kg (kg CO₂e/kg)
69.77%
Recycled materials
CO₂ friendly
PCM410421-0905
1440.81
Total CO₂ emission (kg CO₂e)
2.37
CO₂e/kg (kg CO₂e/kg)
58.56%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
4+ Years
Key user group
4 - 12 Years
Capacity
Inclusive
No
Product category
Play Systems
Product line
MOMENTS™ Play Systems
Product number
PCM410421
Activities
Balance
Climb
Glide
Hang in arms
Jump
Sensory
Slide
Socialise
Sway
Dimensions
Length
428 cm
Width
669 cm
Height
380 cm

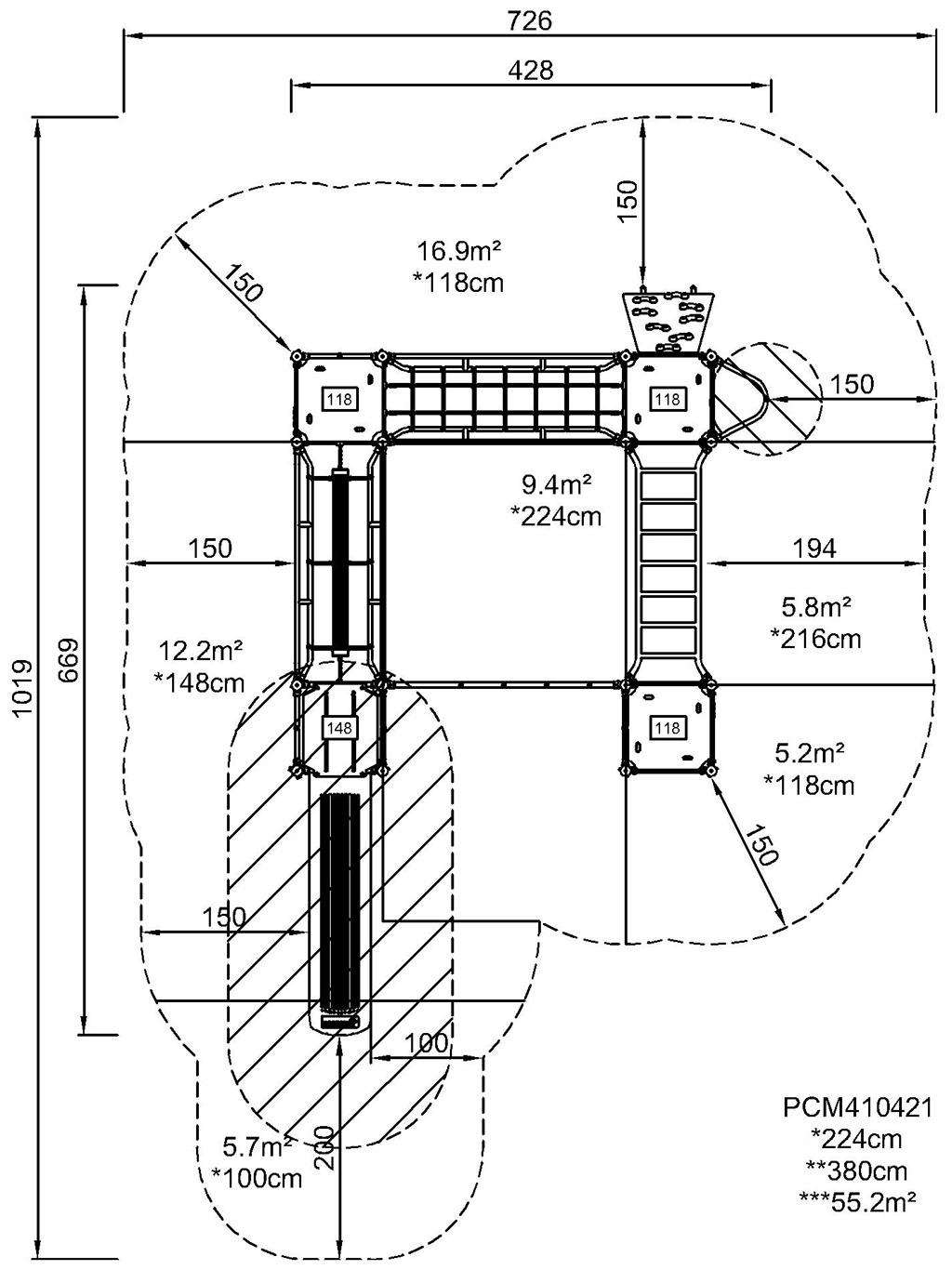

Fall Space Length
726 cm
Fall Space Width
1019 cm
Warranties and certificates
EcoCore HDPE
Lifetime
PP Decks
10 years
Post
10 years
Ropes & Nets
10 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Max. fall height
224 cm
Fall space area
55.2 m²
Anchoring options
Surface, In-ground
Downloads
Tender specifications
Looking for tender specifications for this product?
