Curved slide
Physical
sliding develops spatial awareness and a sense of balance. Furthermore, the core muscles are trained when sitting upright going down.
Social-Emotional
empathy stimulated by turn-taking.
The Mountain Trail is an exciting and multifunctional play structure that attracts play instantly and invites back for more, again and again. From ground level children can crawl the Zig-Zag...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
777 cm
Width
576 cm
Height
399 cm
The Mountain Trail is an exciting and multifunctional play structure that attracts play instantly and invites back for more, again and again. From ground level children can crawl the Zig-Zag Slider and continue through the horizontal nets. Afterwards, they can chill in the nets before moving to the slide for a fun egress back to ground level. Climbing, crawling and balancing the Mountain Trail is a fun challenge which builds the ABC of motor skills: Agility, Balance and Coordination. These are fundamental to children's ability to navigate the world with body confidence. The Musca Spinner whirls around when children enter and put their upper body muscle force into pushing and pulling it around. The many responsive, active play features of the Mountain Trail invite socializing, turn-taking and empathy, important social-emotional skills for life.
This product, Mountain Trail (CRP250802), is provided by KOMPAN Canada.
Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post consumer material from food packing waste.
Colored steel components have a base of hot dip galvanization and a powder coated top finish. This provides an ultimate corrosion resistance in all climates around the world. Other steel surfaces are hot dip galvanized inside and outside with lead free zinc.
Corocord smart clamps are carefully designed in every detail to ensure superior flexibility in high quality aluminum material. The smart clamps are attached around the posts with four steel bolts. Not used attachment points are closed with PA caps.
Molded PE slides made with 33% post-consumer materials in different colors in one-piece design with a wall thickness of minimum 5mm. The PE is tested for UV stability and has excellent impact strength and it is usable within a large temperature span.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
CRP250802-0902
2333.58
Total CO₂ emission (kg CO₂e)
3.11
CO₂e/kg (kg CO₂e/kg)
47.28%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
Order a Catalogue
Talk to an Expert
View Past Projects
Dive Into the Research
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
COROCORD™ rope playground
Product line
COROCORD™ Monkey Trails
Product number
CRP250802
Activities
Balance
Bounce
Climb
Crawl
Hang in arms
Pull
Push
Slide
Spin
Socialize
Sensory
ADA
Elevated activities
2 (1 Required)
Accessible elevated activities
2 (1 Required)
Accessible ground level activities
3 (1 Required)
Accessible ground level play types
2 (1 Required)
Dimensions
Length
777 cm
Width
576 cm
Height
399 cm

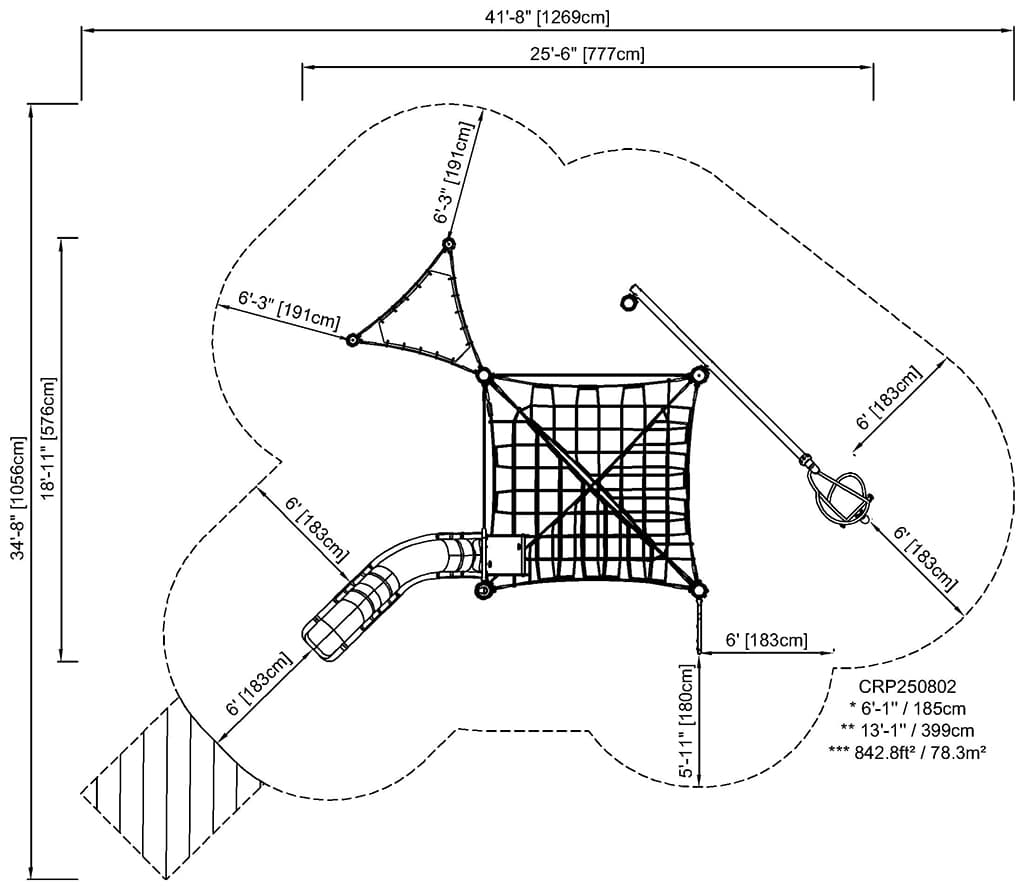

Safety Zone Length
1269 cm
Safety Zone Width
1056 cm
Warranties and certificates
Hot dip galvanised steel
Lifetime
Painted toplayer
10 years
Ropes & nets
10 years
Aluminium clamps
10 years
Spare parts guaranteed
10 years
Certificates
(CSA) CSA Z614 - COMPLIANT
Installation information

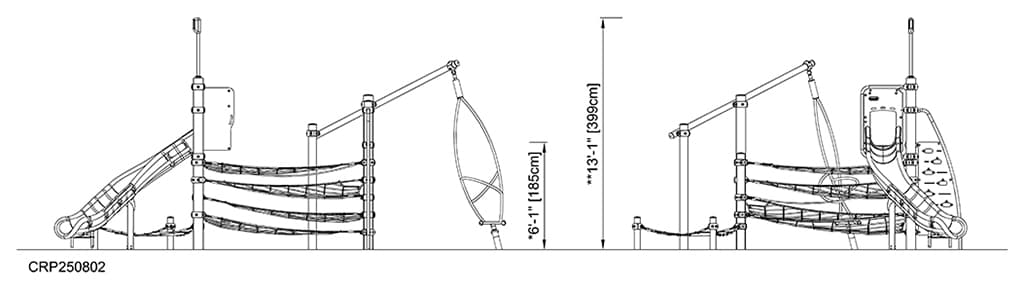

Max. fall height
185 cm
Safety surfacing area
78.3 m²
Anchoring options
Surface, In-ground
