CRP251201

Javan Trail

QR Code for Kompan EN/INT frontpage

Try our AR-app

Javan Trail

Colour ORANGE

Loading Designer

CRP251201

Javan Trail

  • Gallery
  • Play values
  • Specifications
  • Features
The Javan Trail invites thrilling, responsive challenges for children. The variety of play activities makes children come back again and again for more fun. The responsive, swaying ropes call for concentrated movement, adjusting grips and rhythms of climbing. This trains the child’s agility, balance and coordination. These motor skills are fundamental for moving confidently in the world. They build the basis for e.g. concentrating on tasks and sitting still for longer periods. Apart from being great fun, the varied climbing, crawling, tight-rope walking and spinning activities train arm, leg and core muscles. The Propeller Climber provides a fun crawl-and-meet place. The Musca Spinner exhilarates groups of children when pushed into motion. This incorporates an understanding of gravity principles. The cooperative effort supports empathy, turn-taking and self-regulation; skills that help children make friends for life.

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Musca spinner

Physical

balance when standing, sitting and rotating, muscles develop when holding tight.

Social-Emotional

cooperation in getting the spinner to turn.

Vertical climbing net

Physical

children develop cross-body coordination when climbing. Arm, leg and core muscles are strengthened. These are important for posture control and also sitting still.

Social-Emotional

the meshes allow for more children to sit together and talk.

Tightrope

Physical

children train cross-body coordination and muscle strength. The big meshes allow for climbing and crawling through, training proprioception and spatial awareness.

Social-Emotional

the big meshes allow for more children being seated together, sharing.

Coconut rope

Physical

balance and coordination is supported when walking the swaying rope. A good sense of balance transfers to other skills such as sitting still on a chair. Bone density is developed when jumping off.

Social-Emotional

children swaying together on the rope experience their own and others' movements. This spurs cooperation and consideration, e.g. when passing others on the rope.

Zig-zag slider

Physical

muscle strength, balance and coordination when climbing up and down, holding tight.

Climbing wall

Physical

climbing here develops cross coordination, which supports cross-modal perception, necessary for other skills such as reading.

Propeller climber

Physical

support agility, balance and coordination when climbing through. These are important motor skills for moving your body confidently. Arm, leg and core muscles are trained when climbing through the propellers.

Social-Emotional

children cooperate, turn-take and consider each other when they climb through the frames. The frames support playful socializing and meetings for groups of children.

Vertical climbing funnel

Physical

develops cross coordination and trains major muscles when climbing up or down.

Social-Emotional

socializing and friendly competition when climbing up and down with friends.

5 - 12 Years30 Users

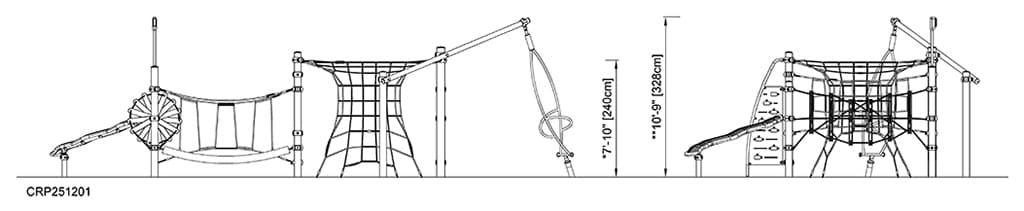

Side View (image)

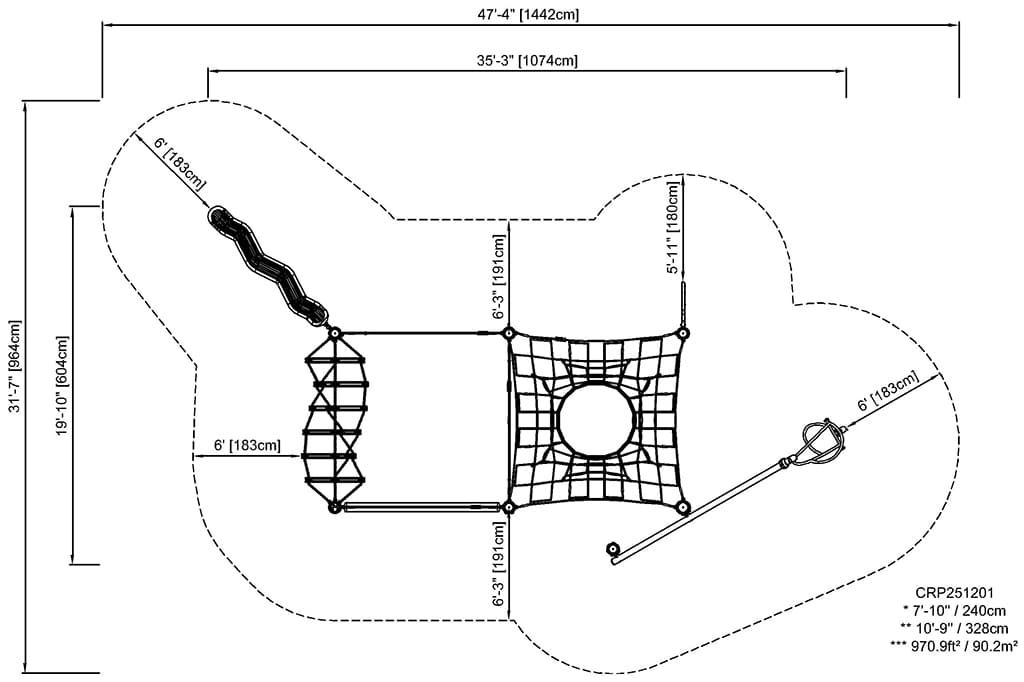

Foot Print (image)

Length

1074 cm

Width

604 cm

Height

328 cm

Specifications

The Javan Trail invites thrilling, responsive challenges for children. The variety of play activities makes children come back again and again for more fun. The responsive, swaying ropes call for concentrated movement, adjusting grips and rhythms of climbing. This trains the child’s agility, balance and coordination. These motor skills are fundamental for moving confidently in the world. They build the basis for e.g. concentrating on tasks and sitting still for longer periods. Apart from being great fun, the varied climbing, crawling, tight-rope walking and spinning activities train arm, leg and core muscles. The Propeller Climber provides a fun crawl-and-meet place. The Musca Spinner exhilarates groups of children when pushed into motion. This incorporates an understanding of gravity principles. The cooperative effort supports empathy, turn-taking and self-regulation; skills that help children make friends for life.

This product, Javan Trail (CRP251201), is provided by KOMPAN Canada.

Key Features

General PES rope

Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand.

COR_S-clamps

Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.

General_EcoCore

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post consumer material from food packing waste.

COR Loops steel

Colored steel components have a base of hot dip galvanization and a powder coated top finish. This provides an ultimate corrosion resistance in all climates around the world. Other steel surfaces are hot dip galvanized inside and outside with lead free zinc.

Corocord CRP Smart Clamps

Corocord smart clamps are carefully designed in every detail to ensure superior flexibility in high quality aluminum material. The smart clamps are attached around the posts with four steel bolts. Not used attachment points are closed with PA caps.

COR_PP rope

The PP rope in coconut style has a diameter of 150 mm. The internal steel wire core has thimbles at both ends, which serve as attachments for the rope to existing connecting elements.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

CRP251201-0903

2745.55

Total CO₂ emission (kg CO₂e)

3.31

CO₂e/kg (kg CO₂e/kg)

48.29%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
