Pipe ladder
Physical
cross coordination and eye-hand coordination are supported when children climb the ladder. The climbing also supports leg and arm muscles.
Social-Emotional
learning about turn taking and cooperation.
This fantastic play tower will inspire young children to play actively, using their muscles to climb to the top and slide to the ground. The variety of access points provide...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
472 cm
Width
448 cm
Height
321 cm
This fantastic play tower will inspire young children to play actively, using their muscles to climb to the top and slide to the ground. The variety of access points provide graded, age-appropriate challenges. They strengthen muscles and help develop cross-coordination skills. Cross-coordination skills enhance children's abilities to use both sides of their brain and supports the internal structures that enable reading and thinking. The desk at ground level extends the play space and attracts children to meet, stay, and play. The double slide is a great team play feature. Sliding supports posture and balance, fundamental motor skills for the child feeling secure in its movements.
This product, Mega Deck (PCM100931), is provided by KOMPAN Canada.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post consumer material from food packing waste.
Main posts with hot dip galvanized steel footing are available in different materials: Pressure impregnated pine wood posts. Pre-galvanized inside and outside with powder coated top finish steel posts. Lead free aluminum with color anodized top finish. Greenline TexMade posts of 95% post-consumer recycled PE and textile waste.
All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options. The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.
The steel surfaces are hot dip galvanised inside and outside with lead free zinc. The galvanisation has excellent corrosion resistance in outside environments and requires low maintenance.
The slides can be chosen in six different colors and three materials: Straight or curved one-piece molded PE slides, made from 33% recycled post-consumer materials in different colours. Combined EcoCore™ sides and stainless-steel. Full stainless steel in one piece design for more vandalism proof solutions.
Wood version of FSC®-certified (FSC®C004450) pine wood with pressure impregnated base treatment and brown painted top finish. Vertical boards and top ends protected by a unique aluminum profile for high outdoor durability.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
PCM100931-0951
784.56
Total CO₂ emission (kg CO₂e)
1.87
CO₂e/kg (kg CO₂e/kg)
58.89%
Recycled materials
CO₂ friendly
PCM100931-0901
843.8
Total CO₂ emission (kg CO₂e)
2.17
CO₂e/kg (kg CO₂e/kg)
53.05%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
Order a Catalogue
Talk to an Expert
View Past Projects
Dive Into the Research
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
2 - 5 Years
Capacity
Product category
Play Systems
Product line
MOMENTS™ Play Systems
Product number
PCM100931
Activities
Balance
Climb
Sensory
Slide
Socialize
ADA
Elevated activities
4 (2 Required)
Accessible elevated activities
4 (2 Required)
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)

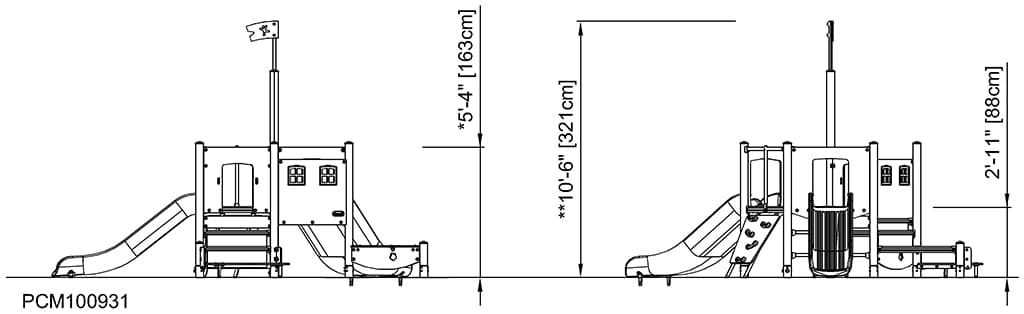

Dimensions
Length
472 cm
Width
448 cm
Height
321 cm

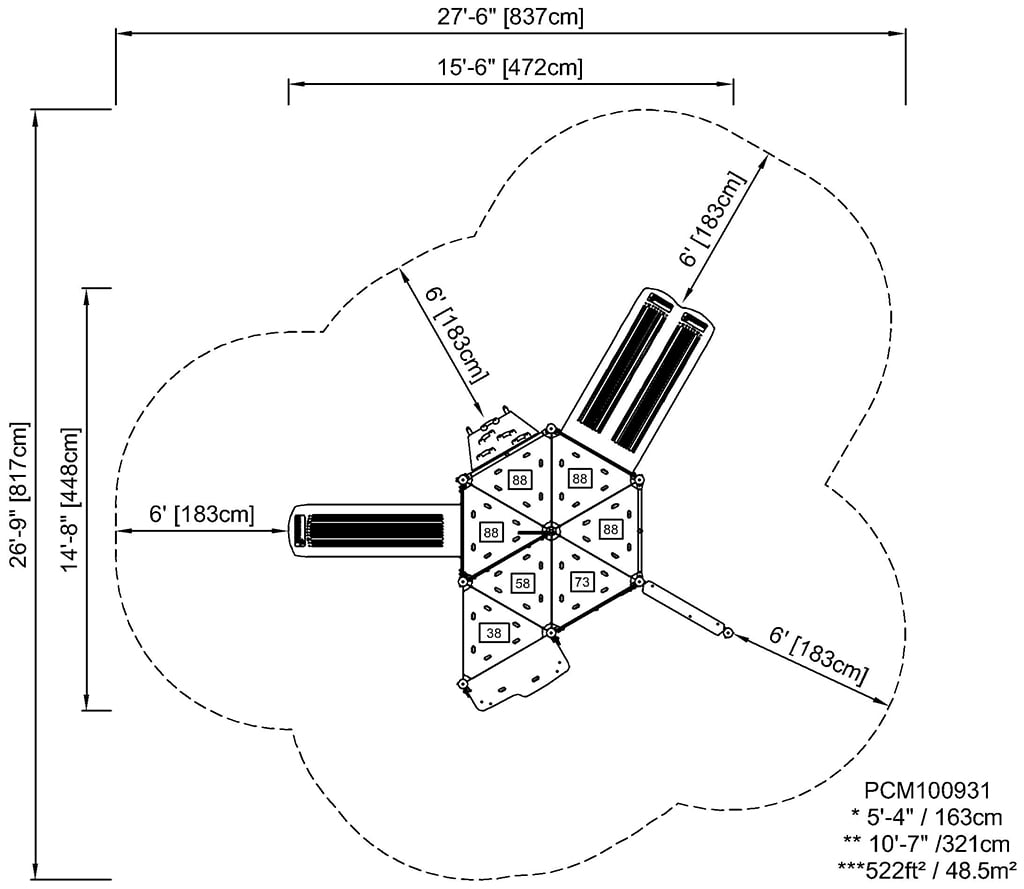

Safety Zone Length
837 cm
Safety Zone Width
817 cm
Warranties and certificates
EcoCore HDPE
Lifetime
Post
10 years
PP Decks
10 years
Spare parts guaranteed
10 years
Certificates
(CSA) CSA Z614 - COMPLIANT
Installation information
Max. fall height
163 cm
Safety surfacing area
48.5 m²
Anchoring options
Surface, In-ground
