The real athletes will go over the high bar and underneath the low bar, while the beginners will do it the other way around. The Over Under obstacle is a great example that everyone can be challenged at their own level. Because the bars are positioned closely to another, a combination of lower body and upper body strength is required to overcome this obstacle.
Photos are for conceptual purpose only. Deviations can occur.
Length
151 cm
Width
566 cm
Height
118 cm
Specifications
The real athletes will go over the high bar and underneath the low bar, while the beginners will do it the other way around. The Over Under obstacle is a great example that everyone can be challenged at their own level. Because the bars are positioned closely to another, a combination of lower body and upper body strength is required to overcome this obstacle.
This product, Over Under (FSW214), is provided by KOMPAN United Kingdom.
Quality that lasts
Post are made of Ø101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.
The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
Bars intended as grips during exercises are made of hot-dip galvanised steel ø38mm. A great diameter to support the wrist when doing dips or handstands.
All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.
The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

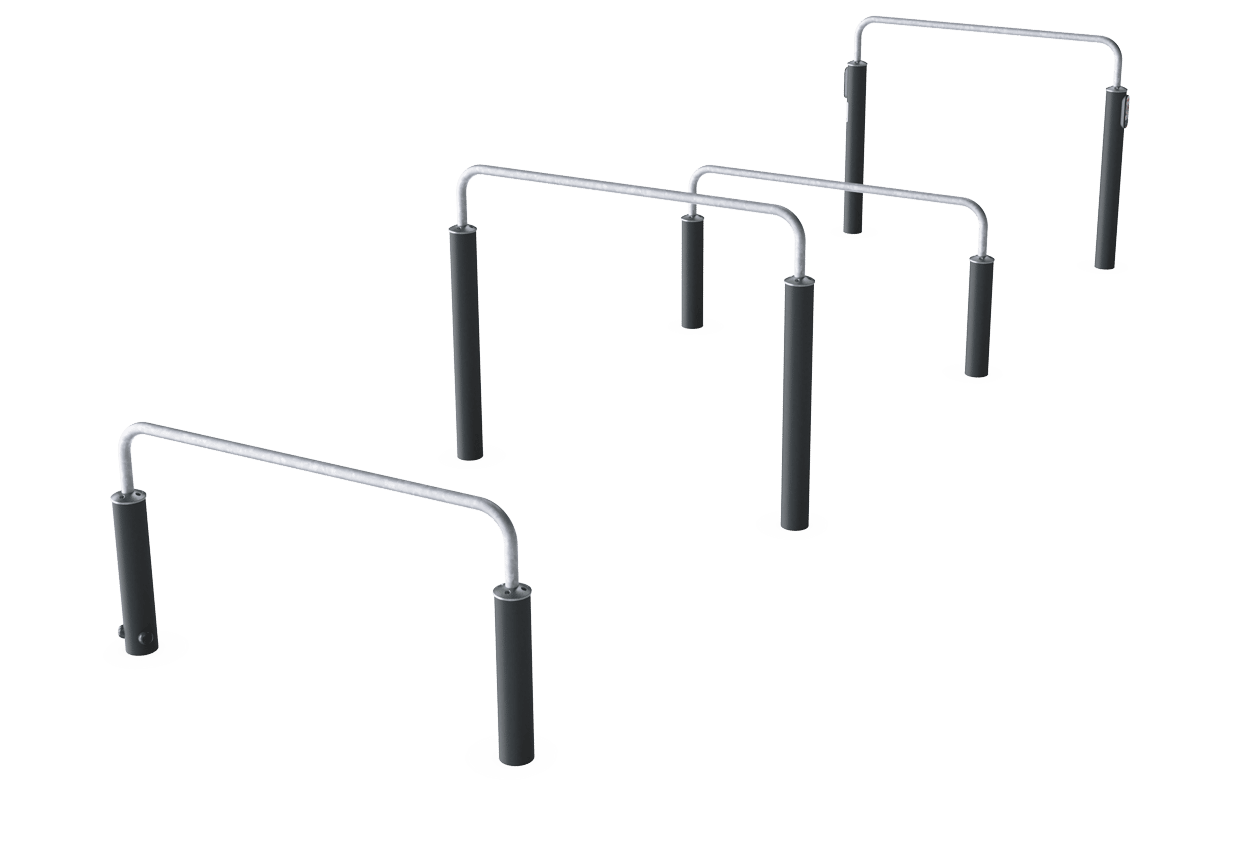

The FSW 214 consist of 4 bars placed at a distance of 175cm. The low bars are 78cm high and the high bars are 118cm high.
CO₂ emission
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
FSW21400-0900
207.36
Total CO₂ emission (kg CO₂e)
2.01
CO₂e/kg (kg CO₂e/kg)
66.53%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
