Climbing grips grid
Cognitive
logical thinking when figuring out routes and memorizing position of grips you can't see when climbing.
BLOQX™ 5 is the formula for hours of thrilling climbing, play and meeting. The combination of iconic, geometrically shaped blocks appeals intensely to older children. With its fine climbing grips,...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
595 cm
Width
246 cm

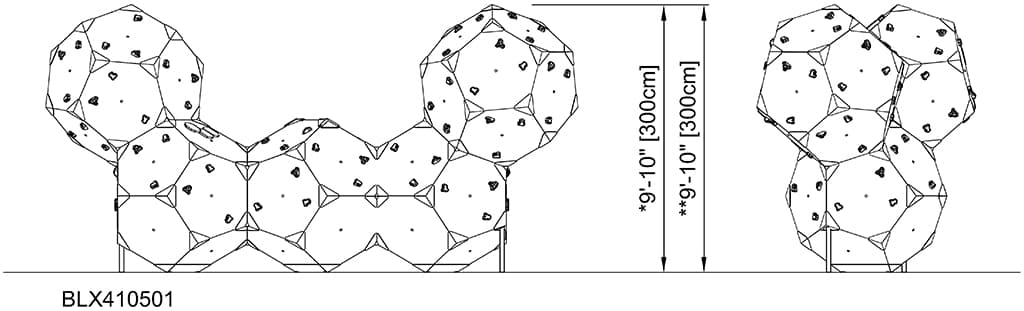

Height
300 cm
BLOQX™ 5 is the formula for hours of thrilling climbing, play and meeting. The combination of iconic, geometrically shaped blocks appeals intensely to older children. With its fine climbing grips, it invites scalable climbing challenges and games to grow with for several children at a time. The design allows room for socializing and exchanges with its ridges and valleys. The possibility for climbers to climb, crawl and balance at their own speed, height and length makes the BLOQX™ a successful gathering place for children at different climbing levels, again and again. The varied grip and panel positions train muscle strength and motor skills such as cross-body coordination and spatial awareness, that positively affect concentration. Social-emotional skills such as helping out are constantly in use. Thinking skills are also trained when figuring out routes.
This product, BLOQX 5 (BLX4105), is provided by KOMPAN United States.
High pressure moulded PP climbing panels with excellent impact strength and usable within a large temperature span. The panel are made from 75% post-consumer recycled materials in bright colors. Teal color is made from 75% ocean waste.The outside surface has an integrated pattern and surface texture that is dirt repellent.
Die-casted corner brackets of high quality lead free aluminium. The corner brackets have nicely rounded edges and countersunk stainless steel screws. For sunny environments the corner brackets can be supplied with optional powder coating which reduced the heat absorption of the brackets.
Climbing Grips are KOMPAN customized design, based on professionally designed climbing grips for optimal play value. The base material is polyester. There are two colors of climbing grips (green & black) and three on each panel. They are rotation secured by a steel pin.
The cubes are supported by a unique designed footing system that secures the correct positioning of the cubes.
To ensure maximum safety in all weather conditions a non-skid safety plate is located when climbing down from the elevated cube. Further, a number of the top corner brackets are covered with soft PUR.
Greenline Bloqx products are built of molded PP panels that consist of 75% recycled post-consumer ocean waste and 25% virgin material. The panels are designed with a unique pattern that provides a non-skid surface texture. GreenLine ensures the lowest possible CO2e emission factor.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
BLX410501-3717
1040.92
Total CO₂ emission (kg CO₂e)
1.85
CO₂e/kg (kg CO₂e/kg)
62.2%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 15 Years
Capacity
Product category
Play Systems
Product line
Bloqx™
Product number
BLX4105
Activities
Balance
Climb
Crawl
Jump
Rules play
Sensory
Socialize
Wonder
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)
Dimensions
Length
595 cm
Width
246 cm
Height
300 cm

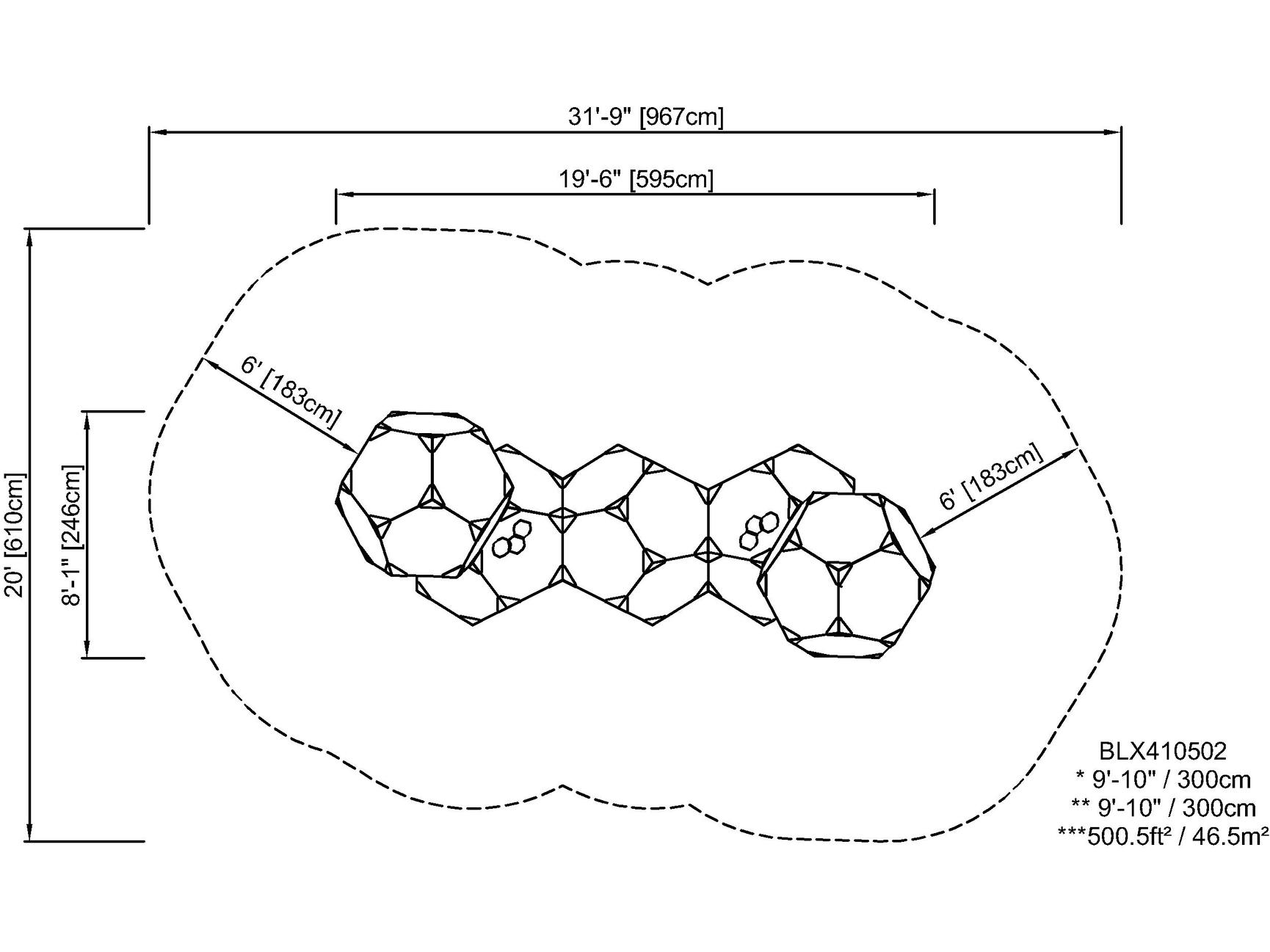

Safety Zone Length
967 cm
Safety Zone Width
610 cm
Warranties and certificates
Climbing panels (PP)
10 Years
Corner brackets
10 Years
Climbing grips
10 Years
Hot dip galvanized steel
Lifetime
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 – PLAY - CERTIFIED
Installation information
Max. fall height
300 cm
Safety surfacing area
46.5 m²
Anchoring options
In-ground, Surface
