Bubble Window
Social-Emotional
invites interaction between outside and inside.
Cognitive
distorts the sound of the voice, developing logical thinking.
WOW! The impressive Quad Cube stands out! The aesthetically pleasing square frames with circular activity openings have immense play appeal. The height is an attraction in its own right. The vastness of varied, multilevel activities will increase play duration and make children come back again and again. Climbing between levels in the varied net climbers, the child trains cross-coordination and proprioception as well as spatial awareness. These are important for the ability to navigate obstacles securely. It also supports self-efficacy and self-esteem which are basic for the ability to build social relationships. Climbing high and using the upper Quad Cube activities is a thrilling challenge that supports children's ability to judge risk. The stomach tickling climbs and slides provide for fun play with a purpose.
The products might not be exactly as shown
Play Value
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
See-through net walls
Social-Emotional
adds a feeling of thrill.
Cognitive
understanding of space and distances when looking out from the varied levels of the cubes.
Wire frame tunnel
Physical
the steep climb in open space trains spatial awareness, cross coordination and muscle strength.
Social-Emotional
sense of height and thrill, turn-taking and consideration of others.
Membrane
Physical
the bouncy membrane develops the sense of balance when the child stands, steps or sits here. A faster way up, due to the extra support of the membrane.
Social-Emotional
a meeting point for retreat from the rope landscape.
Crawl-through hole
Physical
the hole allows for climbing and crawling through, developing cross coordination, proprioception and spatial awareness.
Social-Emotional
cooperation and turn-taking when passing one another.
Cognitive
understanding space, shape and measurements when seeing if the body can fit through the hole.
Long tube slide
Physical
sliding develops spatial awareness and the sense of balance.
Social-Emotional
the height ensures extra speed and thrill. Empathy stimulated by turn-taking and consideration of others. Feeling of security when stopping on extra long slide mouth.
Wheels and arrow panel
Social-Emotional
invites cooperation with play on each side and provides for group and parallel play.
Cognitive
the rotating elements stimulate cause and effect understanding and logical thinking.

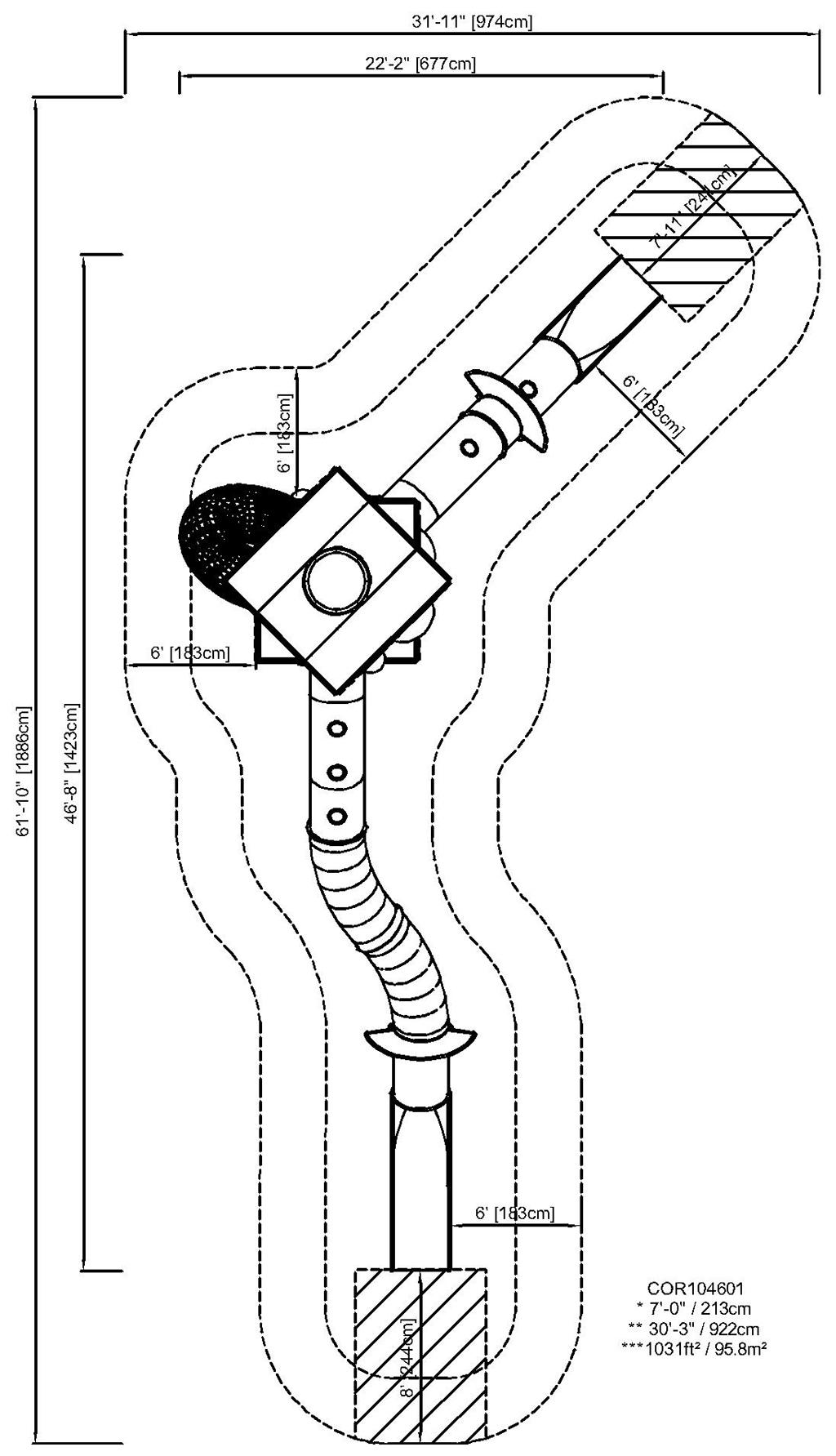

5 - 12 Years45 Users
Length
22' 2"
Width
46' 9"

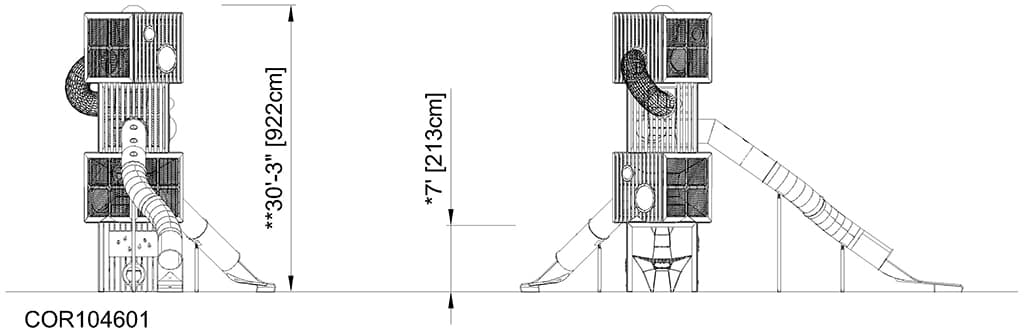

Height
30' 3"
Specifications
WOW! The impressive Quad Cube stands out! The aesthetically pleasing square frames with circular activity openings have immense play appeal. The height is an attraction in its own right. The vastness of varied, multilevel activities will increase play duration and make children come back again and again. Climbing between levels in the varied net climbers, the child trains cross-coordination and proprioception as well as spatial awareness. These are important for the ability to navigate obstacles securely. It also supports self-efficacy and self-esteem which are basic for the ability to build social relationships. Climbing high and using the upper Quad Cube activities is a thrilling challenge that supports children's ability to judge risk. The stomach tickling climbs and slides provide for fun play with a purpose.
This product, Quad Cube (COR10460), is provided by KOMPAN United States.
Key Features
Corocord ropes with 19mm diameter or more are special 'Hercules' - type with galvanized six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The stainless steel components are made of high quality stainless steel in compliance with global playground standards. The steel is glass blasted after manufacturing to ensure a smooth gliding surface.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 7.5 mm.
Panel of 19mm EcoCore™ HDPE. This highly durable, eco-friendly material is not only recyclable after use, but also consists of a core produced from 100% recycled material.
Through the KOMPAN Variant Team, you can choose between additional 7 rope colors and customize your solution. The assortment is a wide span of colors ranking from elegant and expressive black or a natural, neutral hemp color, to a range of attractive and eye-catching signal colors.
CO₂ emission
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR104601-0499
19751.38
Total CO₂ emission (kg CO₂e)
2.58
CO₂e/kg (kg CO₂e/kg)
47.68%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Looking for tender specification texts?
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
How can we help you?
If you have any questions regarding this specific product or your project, we are here to help!
