Membrane
Physical
the bouncy membrane develops the sense of balance when the child stands, steps or sits here. A faster way up, due to the extra support of the membrane.
Social-Emotional
a meeting point for retreat from the rope landscape.
The Super Frisbee will immediately attract children and families to play, and the clever design will inspire variations in stretching, climbing, and navigating that will keep the family at play...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
20' 3"
Width
20' 6"
Height
6' 11"
The Super Frisbee will immediately attract children and families to play, and the clever design will inspire variations in stretching, climbing, and navigating that will keep the family at play for a long time. The structure has something for everyone, at every angle. Everyone can be at the center of the play action. The varied access points provide opportunities for children to strengthen their muscles through climbing, as they are rewarded by the thrill of navigating the height. There are points of differing challenge, that inspire children to return to the structure to challenge themselves each time. At ground level, people of all abilities can participate in the fun and the challenge, which supports a positive attitude toward a healthy lifestyle for all.
This product, Super Frisbee (COR17100), is provided by KOMPAN United States.
Corocord ropes with 19mm diameter or more are special 'Hercules' - type with galvanized six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The metal parts are made of high quality steel, hot dip galvanized inside and outside with lead-free zinc. On the outside, there is an additional layer of powder coating. This ensures both excellent corrosion resistance and colorful design expression.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 7.5 mm.
Fully colored EPDM rubber discs with smooth surface. The moulded EPDM surrounds a hot dip galvanized steel core that ensures both the stability of the discs and durable fixation to the rope.
The aluminium swages of the net are double conical with rounded ends and are as small as safety allows. The overall net design aims at keeping metal parts within the net to an absolute minimum, both in size and number, in order to provide the best possible rope climbing experience.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR171001-1104
3579.31
Total CO₂ emission (kg CO₂e)
2.68
CO₂e/kg (kg CO₂e/kg)
48.82%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
Corocord™ Rope Climbing Playground Equipment
Product line
COROCORD™ Loops
Product number
COR17100
Activities
Balance
Bounce
Climb
Rules play
Sensory
Socialize
Sway
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)

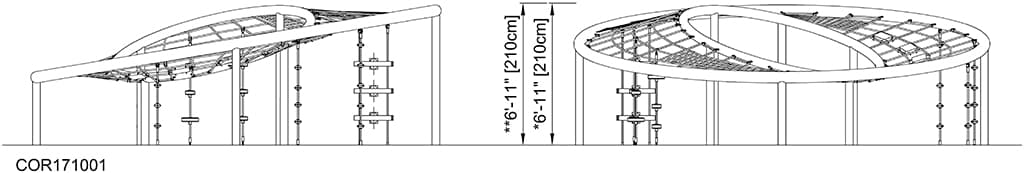

Dimensions
Length
20' 3"
Width
20' 6"
Height
6' 11"

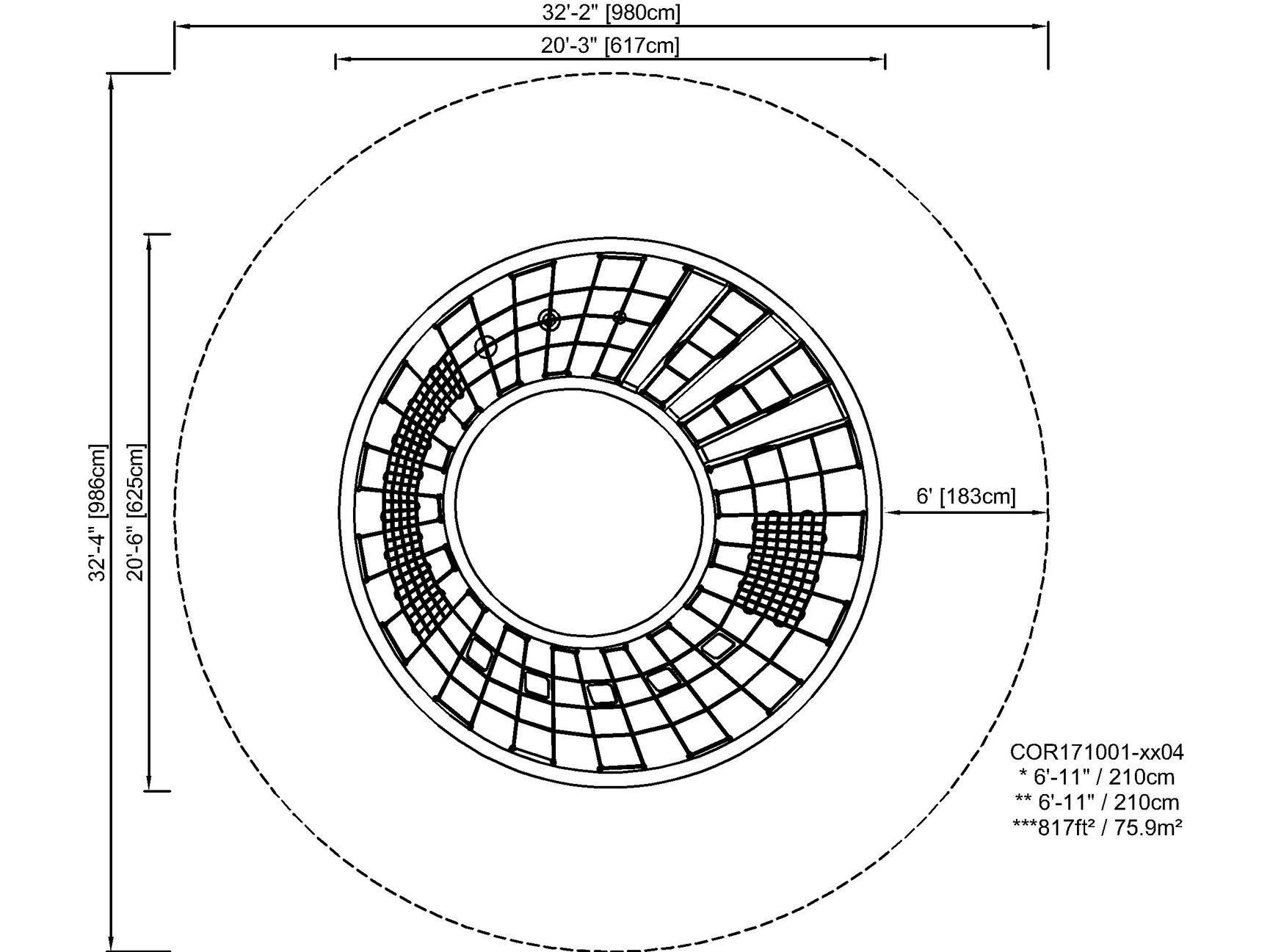

Safety Zone Length
32' 2"
Safety Zone Width
32' 4"
Warranties and certificates
Corocord Rope
10 Years
S-Clamps
10 Years
EPDM components
2 Years
Membrane
2 Years
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 - COMPLIANT
Installation information
Max. fall height
6' 11"
Safety surfacing area
817 ft²
Anchoring options
In-ground
Downloads
Tender specifications
Looking for tender specifications for this product?
