Height
Social-Emotional
children develop courage and self-regulation when being up high. This positively impacts self-confidence.
WOW! That's the reaction of children when they experience the Jellyfish: a transparent landmark with tentacles around its edges! The Jellyfish is guaranteed to deliver an unusually fun and challenging...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
23' 6"
Width
18' 5"
Height
14' 7"
WOW! That's the reaction of children when they experience the Jellyfish: a transparent landmark with tentacles around its edges! The Jellyfish is guaranteed to deliver an unusually fun and challenging climbing experience. The transparent construction gives a good view both from the outside and from the inside. Muscle strength, balance and cross-coordination are trained when children climb the greatly varied entries into the platform: swaying nets with or without climbing cleats, sturdy poles and rope ladders with bouncy rubber membranes. The spacious platform inside the Jellyfish is a desired meeting point for groups of children. The tilted floor makes it fun, as children need to adjust their muscle tension to stay in balance. Social-emotional skills such as self regulation are trained in the Jellyfish.
This product, Jellyfish (COR294002), is provided by KOMPAN United States.
Corocord ropes with 19mm diameter or more are special 'Hercules' - type with galvanized six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The steel structure are hot dip galvanized inside and outside with lead free zinc. The galvanization has excellent corrosion resistance in outside environments and requires low maintenance.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 7.5 mm.
A transparent PC bubble covers the top of the Jellyfish, allowing children to observe the sky.
Jellyfish ropes are equipped with small black EPDM ufos, which can be used as support for hands and feet when climbing the rope.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR294002-1102
2529.89
Total CO₂ emission (kg CO₂e)
2.82
CO₂e/kg (kg CO₂e/kg)
45.67%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
Corocord™ Rope Climbing Playground Equipment
Product line
COROCORD™ Play Towers
Product number
COR294002
Activities
Bounce
Climb
Crawl
Hang in arms
Sway
Socialize
Sensory
Wonder
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)

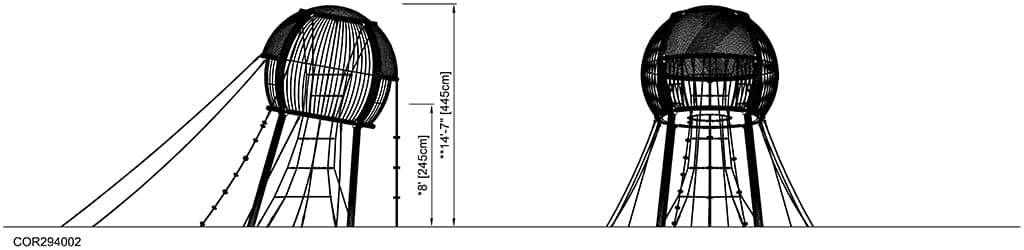

Dimensions
Length
23' 6"
Width
18' 5"
Height
14' 7"

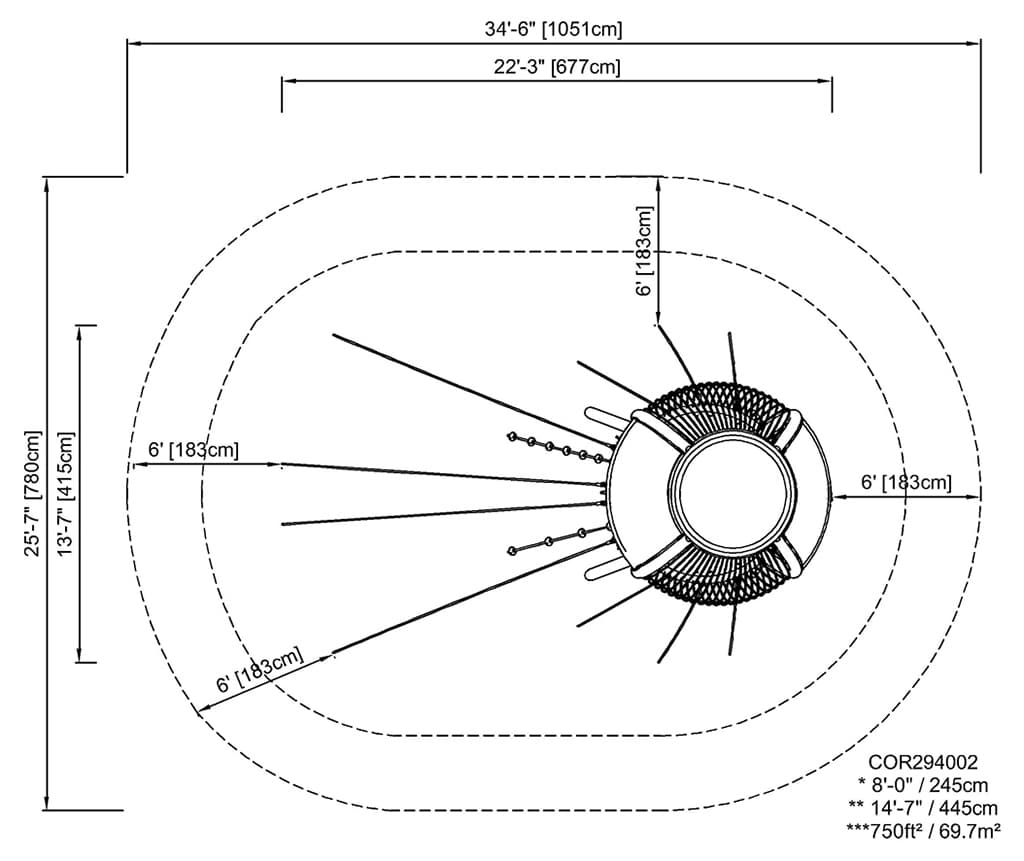

Safety Zone Length
34' 6"
Safety Zone Width
25' 7"
Warranties and certificates
Corocord Rope
10 Years
S-Clamps
10 Years
Aluminum clamps
10 Years
Membrane
2 Years
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 - COMPLIANT
Installation information
Max. fall height
8' 0"
Safety surfacing area
750 ft²
Anchoring options
Surface, In-ground
Downloads
Tender specifications
Looking for tender specifications for this product?
