Tube slide
Physical
sliding develops spatial awareness and a sense of balance. Furthermore, the core muscles are trained when sitting upright going down.
Social-Emotional
thrill when going down fast. Empathy stimulated by turn-taking.
WOW! The SkyTwister Physical is an activity-packed, intriguing play magnet for children. The twisted frame contains a rich variety of climbing, swaying play that makes children want to come back...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
18' 1"
Width
28' 3"
Height
16' 6"
WOW! The SkyTwister Physical is an activity-packed, intriguing play magnet for children. The twisted frame contains a rich variety of climbing, swaying play that makes children want to come back again and again. At ground level, the swaying loop invites a break, and the many suspended ropes offer moving seats and complex climbs. Combined with the inclined horizontal net, the lower level of the Twisted Tower offers an inviting, responsive meeting point for all. When swaying and climbing in the ropes and inclined nets of the SkyTwister, children develop their sense of balance and coordination. These crucial motor skills build the capability to move confidently and securely through the world. Additionally, climbing works all major muscle groups. On top of the Twisted Tower awaits a wildly fascinating destination: a view and a meeting point on bouncy membrane flooring with fascinating optic see-through panels that change the way the world looks. The transparency of the Twisted Tower, from bottom to top, makes it a play unit for intense cooperation, consideration and communication across levels and activities - a place to make friends.
This product, SkyTwister, Physical (COR29900), is provided by KOMPAN United States.
The graphic panels are made of high-quality polycarbonate with a thickness of 6mm. The graphic print consist of an inner layer is the image and outer transparent layer which function as protection. Both PC panel and the water-based lacquer are UV stabilized to prevent fading of the print.
Fully colored EPDM rubber discs with smooth surface. The moulded EPDM surrounds a hot dip galvanized steel core that ensures both the stability of the discs and durable fixation to the rope.
Hangout pod designed with a welded frame of two steel rings which are hot dip galvanized and powder coated. The membrane consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance.
The steel surfaces are hot dip galvanized inside and outside with lead free zinc. The galvanization has excellent corrosion resistance in outside environments and requires low maintenance.
Curved and straight tunnel slide of either PE or stainless-steel material and supported by muliple steel rods to a center steel post. The tunnel slides are designed with perfect curve and inclination for a playful ride.
Corocord ropes with 19mm diameter or more are special 'Hercules' - type with galvanized six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR299001-0405
4315.68
Total CO₂ emission (kg CO₂e)
2.92
CO₂e/kg (kg CO₂e/kg)
43.33%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
Corocord™ Rope Climbing Playground Equipment
Product line
COROCORD™ Play Towers
Product number
COR29900
Activities
Balance
Climb
Crawl
Sensory
Slide
Socialize
Sway
ADA
Elevated activities
0 (1 Required)
Accessible elevated activities
0 (1 Required)
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)

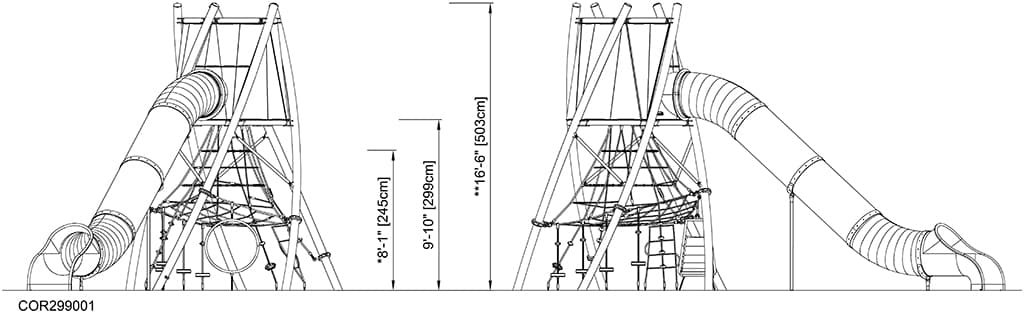

Dimensions
Length
18' 1"
Width
28' 3"
Height
16' 6"

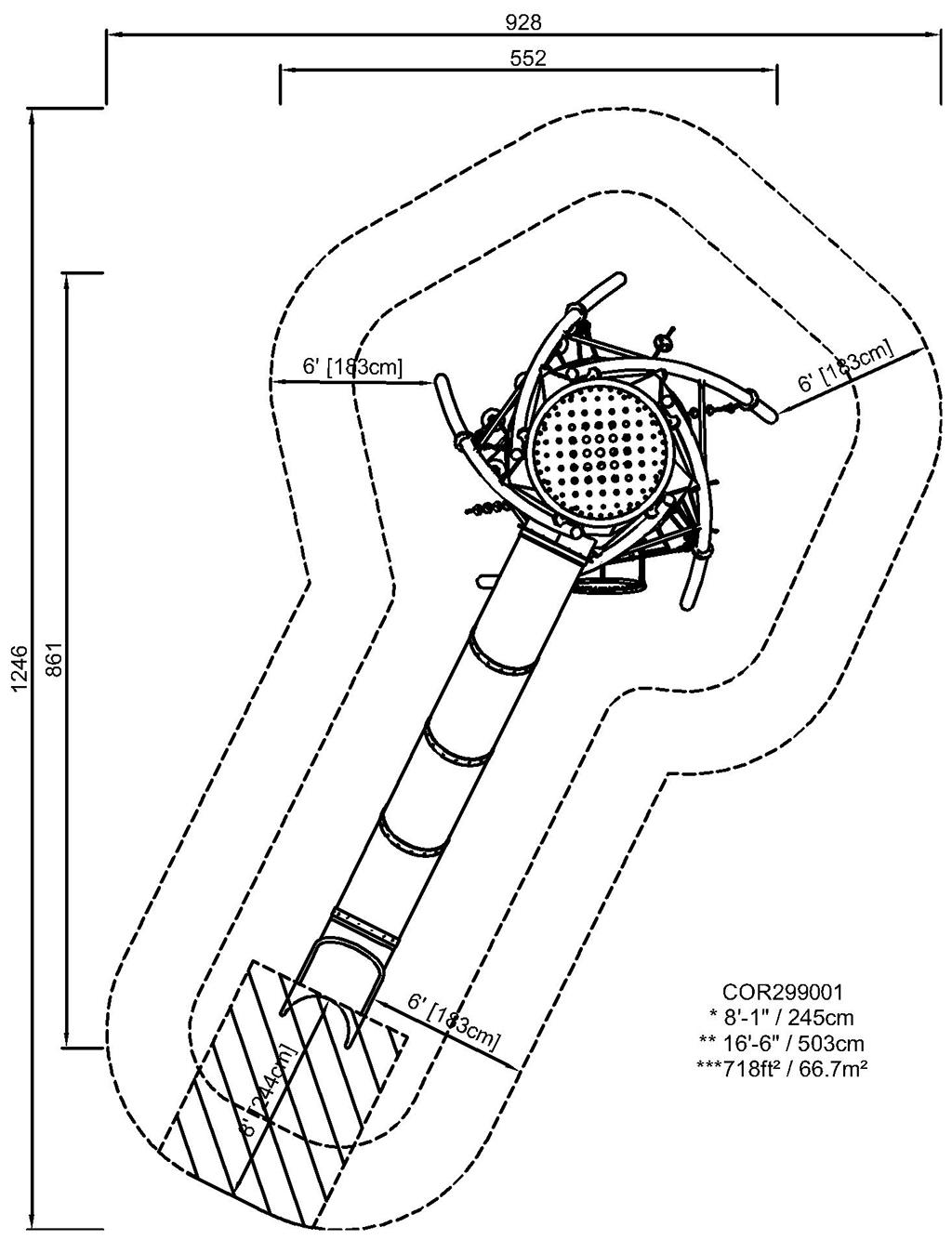

Safety Zone Length
30' 5"
Safety Zone Width
40' 11"
Warranties and certificates
Hot dip galvanized steel
Lifetime
Stainless steel components
Lifetime
Ropes & nets
10 Years
Painted toplayer
10 Years
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 – PLAY - CERTIFIED
Installation information
Max. fall height
8' 0"
Safety surfacing area
718 ft²
Anchoring options
In-ground
Downloads
