Highest rungs
Physical
spatial awareness is supported, arm muscles when holding tight.
Social-Emotional
children develop courage, self-confidence, consideration and turn-taking, all important life skills.
Wow! The Octa Net Large supports thrill, socializing, and physical development. Children will spend a good amount of time exploring the ways they can move their bodies, stretching and climbing...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
29' 6"
Width
29' 6"
Height
28' 7"
Wow! The Octa Net Large supports thrill, socializing, and physical development. Children will spend a good amount of time exploring the ways they can move their bodies, stretching and climbing on and around the structure. The carefully designed features support the development of physical skills such as agility, balance and coordination as well as spatial awareness when climbing and sitting in the net. The careful design of the nets is scaled to the size of children in this age group, maximizing their play experience, and encouraging children to stay and play longer. In addition to the physical benefits, this is an incredibly enjoyable social space, due to the transparent design. This will attract children and their parents, creating a space for healthy family fun, promoting healthy living through play.
This product, Octa Net L (COR43401), is provided by KOMPAN United States.
Corocord ropes with 19mm diameter or more are special 'Hercules' - type with galvanized six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The aluminium swages of the net are double conical with rounded ends and are as small as safety allows. The overall net design aims at keeping metal parts within the net to an absolute minimum, both in size and number, in order to provide the best possible rope climbing experience.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 7.5 mm.
In the center of the net is the mast, made of high quality seamless steel. The structure of the mast as an oscillating support is statically favorable and equalizes the oscillations in the net. The masts are hot dip galvanized as standard, with the design option of additional powder coating.
For installations using rubber surfacing the turnbuckle protectors are to be ordered separately.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR434011-1001
4890.07
Total CO₂ emission (kg CO₂e)
3.07
CO₂e/kg (kg CO₂e/kg)
54.61%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
Corocord™ Rope Climbing Playground Equipment
Product line
COROCORD™ Spacenet™
Product number
COR43401
Activities
Balance
Bounce
Climb
Crawl
Hang in arms
Sensory
Socialize
Wonder
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)
Dimensions
Length
29' 6"
Width
29' 6"
Height
28' 7"

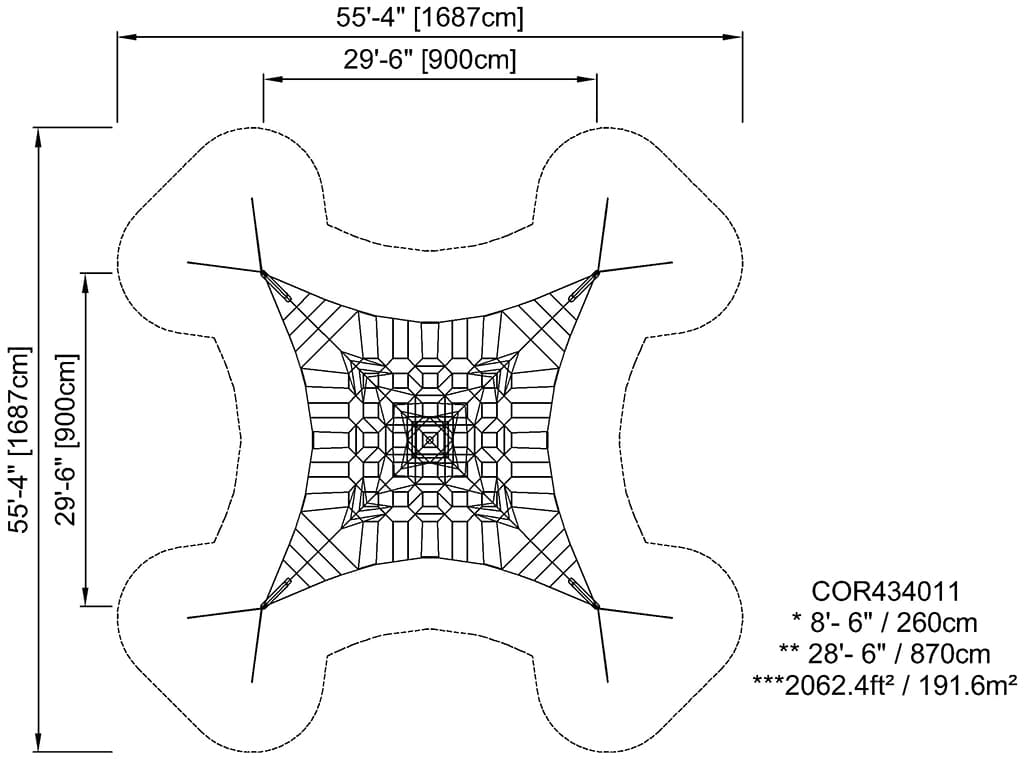

Safety Zone Length
55' 4"
Safety Zone Width
55' 4"
Warranties and certificates
Steel post HDG
Lifetime
Corocord Rope
10 Years
S-Clamps
10 Years
Membrane
2 Years
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 - COMPLIANT
Installation information
Max. fall height
8' 6"
Safety surfacing area
2062 ft²
Anchoring options
In-ground
Downloads
