Horizontal membrane
Physical
the bouncy membrane develops the sense of balance when the child stands, steps or sits here.
Social-Emotional
great point for a break or meeting with friends.
The Ocean Arch is an intriguing structure that will attract children to play on it. Due to the varied, bouncing, and slanting ropes and hammocks, children will stay for a long time, trying it all out. The transparency of the multiple levels supports social interaction throughout the structure. The membrane and net hammocks offer destination meeting points for smaller or bigger groups of children. The swaying adds to the training of balance and spatial awareness, which are fundamental for judging distances, e.g., in the street. Climbing the Ocean Arch helps with the development of cross-coordination skills, which help with the development of your left and right brain half. The many tactile details and varied materials are excellent areas for sensory play. The Ocean Arch ticks all the play value boxes.
Play Value
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Ropes with UFOs
Physical
the UFOs allow for both seated and standing swaying, climbing and turning. The sense of balance is developed when swaying. Climbing up strengthens arm and leg muscles.
Rope path with rubber and alu grips
Physical
the bounciness and sturdy rubber and aluminum points of the rope develops both the sense of balance and spatial awareness. These motor skills are fundamental for judging distances.
Social-Emotional
the swaying movement makes children consider one another and support them in developing cooperation and turn-taking.
Coconut rope
Physical
balance and coordination is supported when walking the swaying rope. A good sense of balance transfers to other skills such as sitting still on a chair. Bone density is developed when jumping off.
Social-Emotional
children swaying together on the rope experience their own and others' movements. This spurs cooperation and consideration, e.g. when passing others on the rope.
5 - 12 Years12 Users

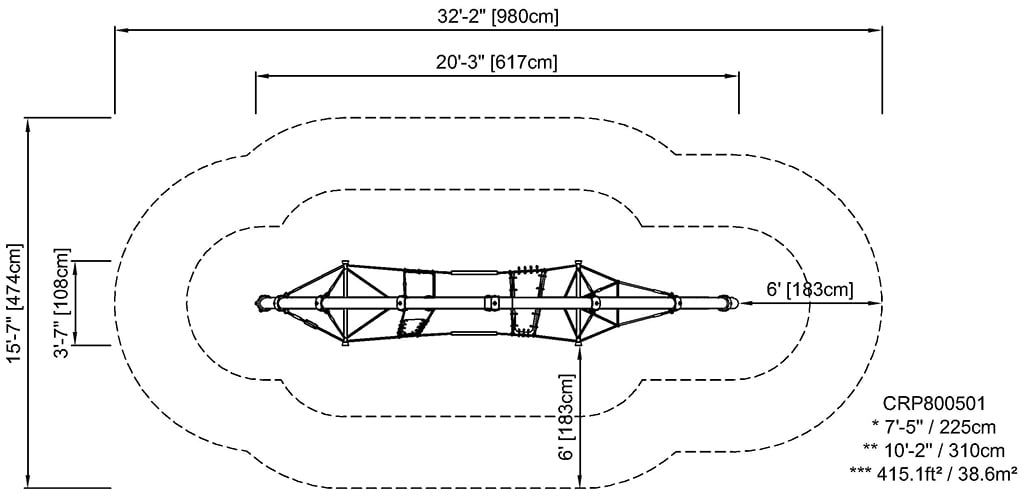

Length
20' 3"
Width
3' 7"

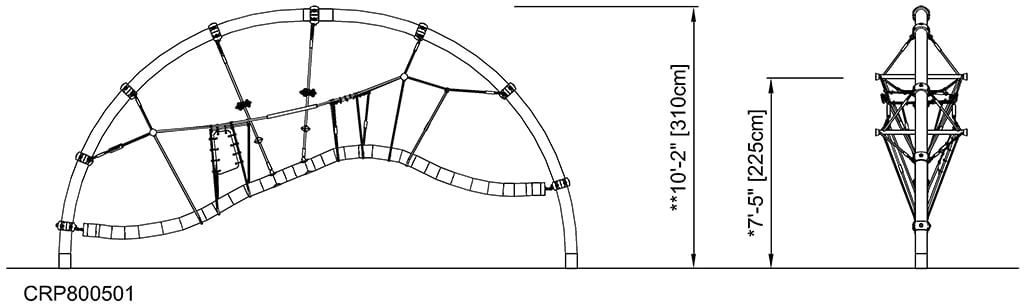

Height
10' 2"
Specifications
The Ocean Arch is an intriguing structure that will attract children to play on it. Due to the varied, bouncing, and slanting ropes and hammocks, children will stay for a long time, trying it all out. The transparency of the multiple levels supports social interaction throughout the structure. The membrane and net hammocks offer destination meeting points for smaller or bigger groups of children. The swaying adds to the training of balance and spatial awareness, which are fundamental for judging distances, e.g., in the street. Climbing the Ocean Arch helps with the development of cross-coordination skills, which help with the development of your left and right brain half. The many tactile details and varied materials are excellent areas for sensory play. The Ocean Arch ticks all the play value boxes.
This product, Explorer Arch (CRP800501), is provided by KOMPAN United States.
Key Features
The chain/ropes are attached to the Coconut rope by KOMPAN swivel bushings made of stainless steel with bronze bearings. The swivels have an outside cover of black PUR. The usage of side mounted swivels provides frictionless movement, eliminates fingers and feet entrapments and enlarges the standing surface on top of the rope.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 8mm.
Play activities like UFOs are made of injection moulded high quality PA6. PA6 has good wearing and impact strength.
The bended arches are holding the tensioned net structure without additional disturbing fasteners. The arches are produced from high quality stainless steel to allow movement of the net on the surface of the steel arches. The surface is treated to make it shiny.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The Corocord Smart Clamps are carefully designed to ensure superior flexibility in high-quality aluminum material. The smart clamps are attached around the post with four steel bolts. Unused attachment points are closed with PA caps.
CO₂ emission
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
CRP800501-0904
1307.53
Total CO₂ emission (kg CO₂e)
3.67
CO₂e/kg (kg CO₂e/kg)
45.49%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
