FAZ30401

Step, 32 in PU Steel

QR Code for Kompan EN/INT frontpage

Try our AR-app

Step, 32 in PU Steel

Color ORANGE

Loading Designer

FAZ30401

Step, 32 in PU Steel

  • Gallery
  • Specifications
  • Features
The step is one of the most simple yet highly versatile training tools. So many exercises can be done with it, from simple step ups to plyometric jumps. Regular sessions will provide both cardiovascular and muscular endurance. Incorporating upper and lower body movements will improve balance and agility, and the constant push up onto the step will increase leg strength.
13+ Years1 Users

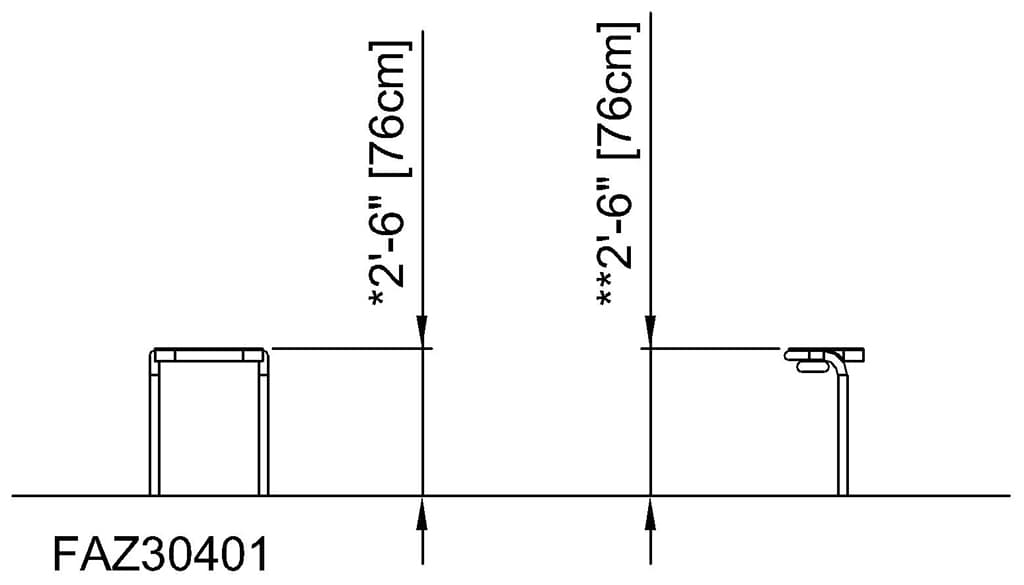

Side View (image)

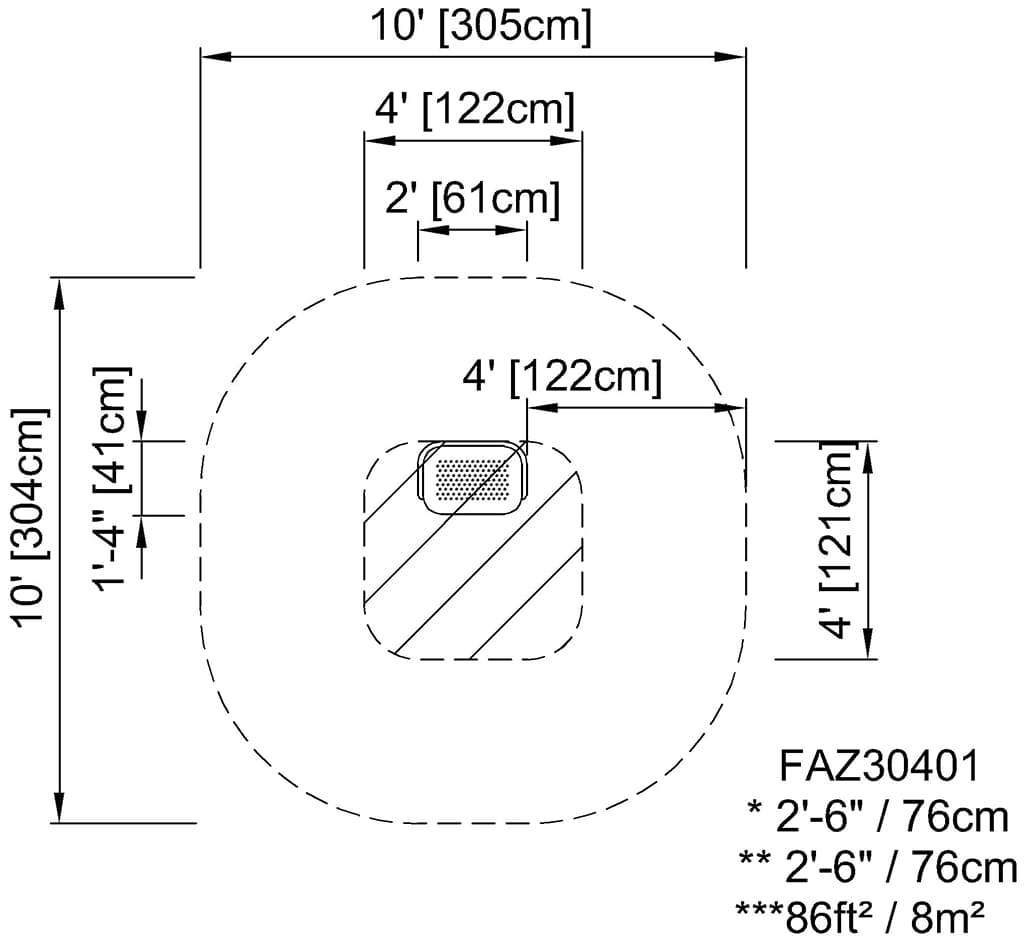

Foot Print (image)

Length

2' 0"

Width

1' 4"

Height

2' 6"

Specifications

The step is one of the most simple yet highly versatile training tools. So many exercises can be done with it, from simple step ups to plyometric jumps. Regular sessions will provide both cardiovascular and muscular endurance. Incorporating upper and lower body movements will improve balance and agility, and the constant push up onto the step will increase leg strength.

This product, Step, 32 in PU Steel (FAZ30401), is provided by KOMPAN United States.

Key Features

FAZ_Carbon steel step frame

The support frame is ø48.3 x 4mm, carbon steel, with a hot-dip galvanized surface according to ISO1461, and a powder coating corrosion class C3 according to ISO12944-2. Lead content for surfaces are below 90ppm.

FAZ_Polyrea coating

The Polyurea Coating, used on all grips, is highly durable against wear and tear, offers isolation and simultaneously gives users an outstanding grip during their workout.

FAZ_Step HDG steel plate

A 5 mm hot-dip galvanized carbon steel plate must is molded inside the SBR to offer optimal stability and optimize the mounting of the step to the frame.

General_Fitness standards

All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FAZ30401-0900

116.97

Total CO₂ emission (kg CO₂e)

2.59

CO₂e/kg (kg CO₂e/kg)

49.85%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
