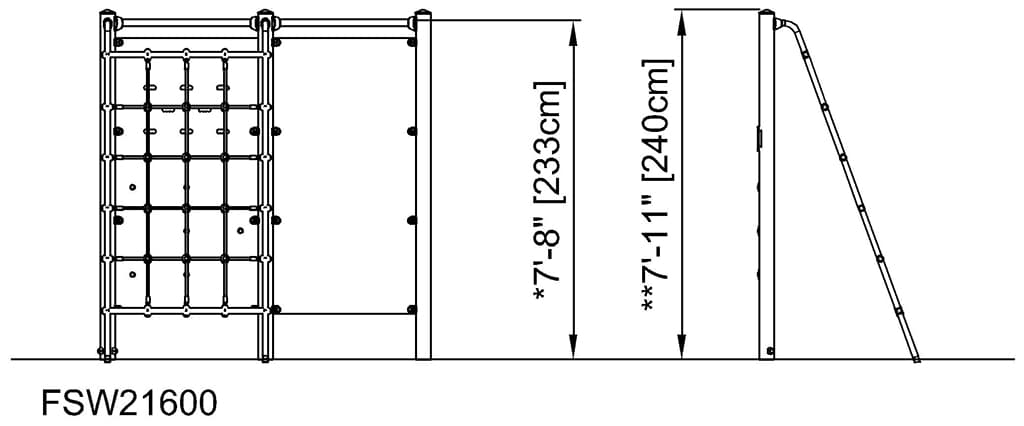

The wall consists of two segments. The left side is a flat wall of almost 7' 8'' high which can be conquered by the fittest. The right side has three steps to assist the feet and eight handles to help you get over the wall. The scalable Wall makes it fun for everyone to play or train together. The fit ones develop muscle strength and bone density when jumping over. Others develop their self-esteem if they dare to climb up. The Wall is standard available in Orange, RAL2010 and Grey, RAL7012. All other RAL colors are available on request. It will always be possible to match the surroundings or color theme!
The products might not be exactly as shown

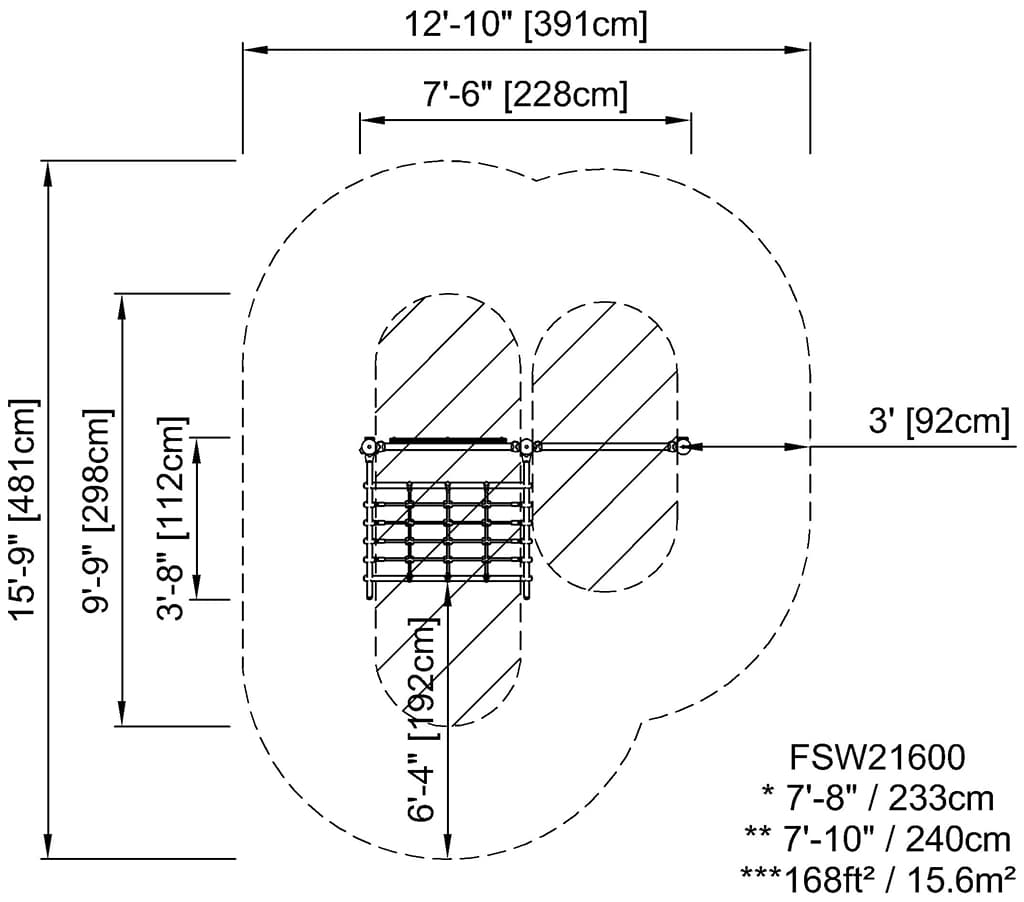

Length
7' 6"
Width
3' 8"
Height
7' 10"
Specifications
The wall consists of two segments. The left side is a flat wall of almost 7' 8'' high which can be conquered by the fittest. The right side has three steps to assist the feet and eight handles to help you get over the wall. The scalable Wall makes it fun for everyone to play or train together. The fit ones develop muscle strength and bone density when jumping over. Others develop their self-esteem if they dare to climb up. The Wall is standard available in Orange, RAL2010 and Grey, RAL7012. All other RAL colors are available on request. It will always be possible to match the surroundings or color theme!
This product, Vertical Net and Wall (FSW216), is provided by KOMPAN United States.
Key Features
Post are made of 101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.
The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
The wall surface are made of 17.8mm thick High Pressure Laminate (HPL) panels to ensure optimal strength and durability.
All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.
The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.
The ropes are made of UV-stabilised PES with inner steel cable reinforcement. The rope is induction treated in order to create a strong connection between steel and rope which leads to good wear resistance.
CO₂ emission
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
FSW21600-0900
400.09
Total CO₂ emission (kg CO₂e)
2.28
CO₂e/kg (kg CO₂e/kg)
32.59%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
