M174

Swan

QR Code for Kompan EN/INT frontpage

Try our AR-app

Swan

Color WHITE

Loading Designer
The amazing, graceful Swan should be in all playgrounds. Children seek it out to rock and play again and again. The Swan is truly universal design: the back, calf and foot supports, the shelter of the seat sides and the vertical handholds make it accessible and usable for all. Children rock the Swan using their leg, arm and core muscles to coordinate movements and set it into motion. Alternatively, the spring will move when children stem their back into the seat, without using leg muscles. The handholds support a relevant grip height for all. Rocking the Swan supports the senses of balance and space that are fundamental for body confidence and movement control. The springer’s response to movement builds an understanding of cause-and-effect. It supports logical thinking, a fundamental cognitive skill.
Photos

The products might not be exactly as shown

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Theme

Cognitive

suggests a theme and supports dramatic play, which stimulates language and communication skills.

Handhold

Physical

the vertical handgrips ensure a firm grip at different heights, necessary for rocking intensely. This trains hand and arm muscles.

Rocking spring

Physical

response to movement increases spatial awareness and sense of balance. These are fundamental motor skills that help the child's ability to sit still on a chair which takes a good sense of balance.

Cognitive

trains the understanding of cause and effect: when I move my body, the spring responds with movement.

Foot and back support

Physical

extra back and foot support for children with mobility challenges. Rocking promotes sense of balance and space, both important in navigating the body in space. Arms and leg muscles strengthened when holding tight and pushing with legs.

2 - 5 Years1 Users

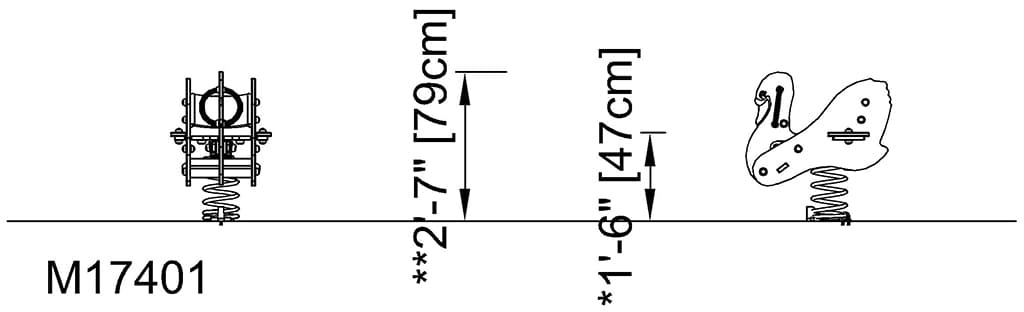

Side View (image)

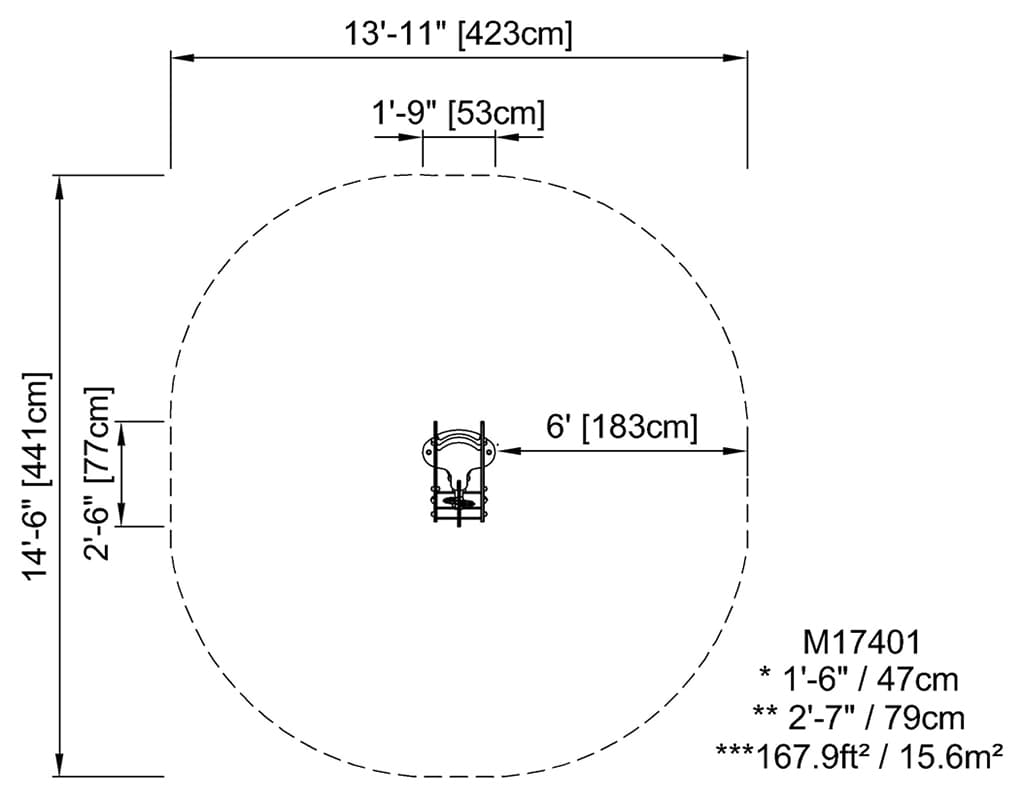

Foot Print (image)

Length

1' 9"

Width

2' 6"

Height

2' 7"

Specifications

The amazing, graceful Swan should be in all playgrounds. Children seek it out to rock and play again and again. The Swan is truly universal design: the back, calf and foot supports, the shelter of the seat sides and the vertical handholds make it accessible and usable for all. Children rock the Swan using their leg, arm and core muscles to coordinate movements and set it into motion. Alternatively, the spring will move when children stem their back into the seat, without using leg muscles. The handholds support a relevant grip height for all. Rocking the Swan supports the senses of balance and space that are fundamental for body confidence and movement control. The springer’s response to movement builds an understanding of cause-and-effect. It supports logical thinking, a fundamental cognitive skill.

This product, Swan (M174), is provided by KOMPAN United States.

Key Features

General_EcoCore

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of a core produced from 100% recycled material.

General_Spring

KOMPAN Springs are made of high quality spring steel according to EN10270. The springs are cleaned by phosphating before they are painted with an epoxy primer and a polyester powder coating as top finish. The springs are fixed by unique anti pinch fittings for maximum safety and long lifetime.

General_Spring Pinch fittings

The springs are fixed by unique anti pinch fittings for maximum safety and long lifetime.

General_Nylon handholds

Handholds are made of injection molded high quality nylon (PA6). PA6 has good wearing and impact strength.

M_HPL Foot support 17,8mm

Foot support is made of HPL with a thickness of 17.8mm with a very high wearing strength and a unique KOMPAN non-skid surface texture.

M_PUR back support

Back support is made of PUR. All components retain their properties in the temperature range of -30°C to 60°C. All materials are UV stabilised to a maximum without use of heavy metal stabilities.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

M17401-01P

93.8

Total CO₂ emission (kg CO₂e)

2.29

CO₂e/kg (kg CO₂e/kg)

50.32%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
