Handrails and side poles
Physical
pushing or pulling the carousel strengthens arm and leg muscles.
Social-Emotional
pushing and pulling others facilitates cooperation and empathy: when to stop, how to take turns etc.
WOW – this is play for everyone, no matter their abilities. The huge truly inclusive, universal design carousel attracts big groups of children and adults in for a spin. Due...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

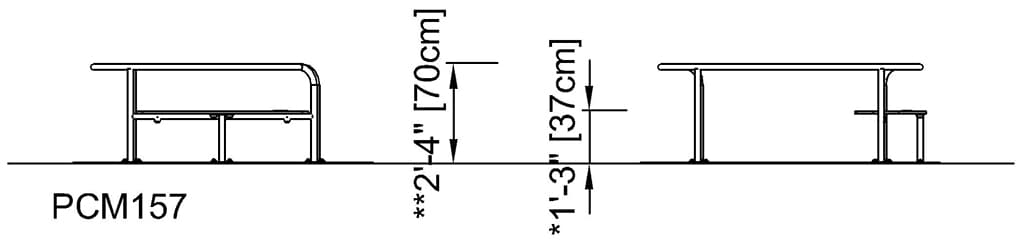

Length
6' 10"
Width
6' 10"
Height
2' 4"
WOW – this is play for everyone, no matter their abilities. The huge truly inclusive, universal design carousel attracts big groups of children and adults in for a spin. Due to its versatility, it appeals to children and adults again and again. The ground-level design makes the carousel accessible to everyone. The bench provides a comfortably seated spin. The handholds function from both sides. From the inside they offer good support, while from the outside they get the carousel moving. Spinning on this carousel develops the vestibular system, sense of balance and spatial awareness. The benefits trained through play also include social skills, such as cooperation and empathy, by assisting friends of all abilities to spin and helping others wanting to join or exit. It is play with a purpose for all.
This product, Universal Carousel (PCM157), is provided by KOMPAN United States.
Heavy duty designed welded carousel chassis of square steel pipes. The steel surfaces are hot dip galvanized inside and outside. The galvanization has excellent corrosion resistance in outside environments and is maintenance free.
The metal parts are made of high quality steel, hot dip galvanized inside and outside with lead free zinc. On the outside, there is an additional layer of powder coating. This ensures both excellent corrosion resistance and colorful design expression.
Deck plate of 3mm thick non skid aluminum or 17,8mm thick HPL plate.For warm locations KOMPAN recommends HPL deck plate as the aluminumwill get hot in sunny conditions.Both deck plate ensures safe play for all users and are maintenance free.
Seat is made of HPL with a thickness of 17.8mm with a very high wearing strength and a unique KOMPAN nonskid surface texture.
The roller system is designed with a fully closed lifetime lubricated center bearing supported by 10 wheels with a diameter of 125mm. The outer wheels ensures a smooth rotation under heavy load.
The outside hot dip galvanized steel ring makes a clear indication where the rotation deck begins.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
PCM157-0205
629.43
Total CO₂ emission (kg CO₂e)
2.75
CO₂e/kg (kg CO₂e/kg)
27.06%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
2 - 12 Years
Capacity
Product category
Freestanding Play Equipment
Product line
Supernova, Carousels & Spinners
Product number
PCM157
Activities
Balance
Pull
Push
Sensory
Socialize
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)
Dimensions
Length
6' 10"
Width
6' 10"
Height
2' 4"

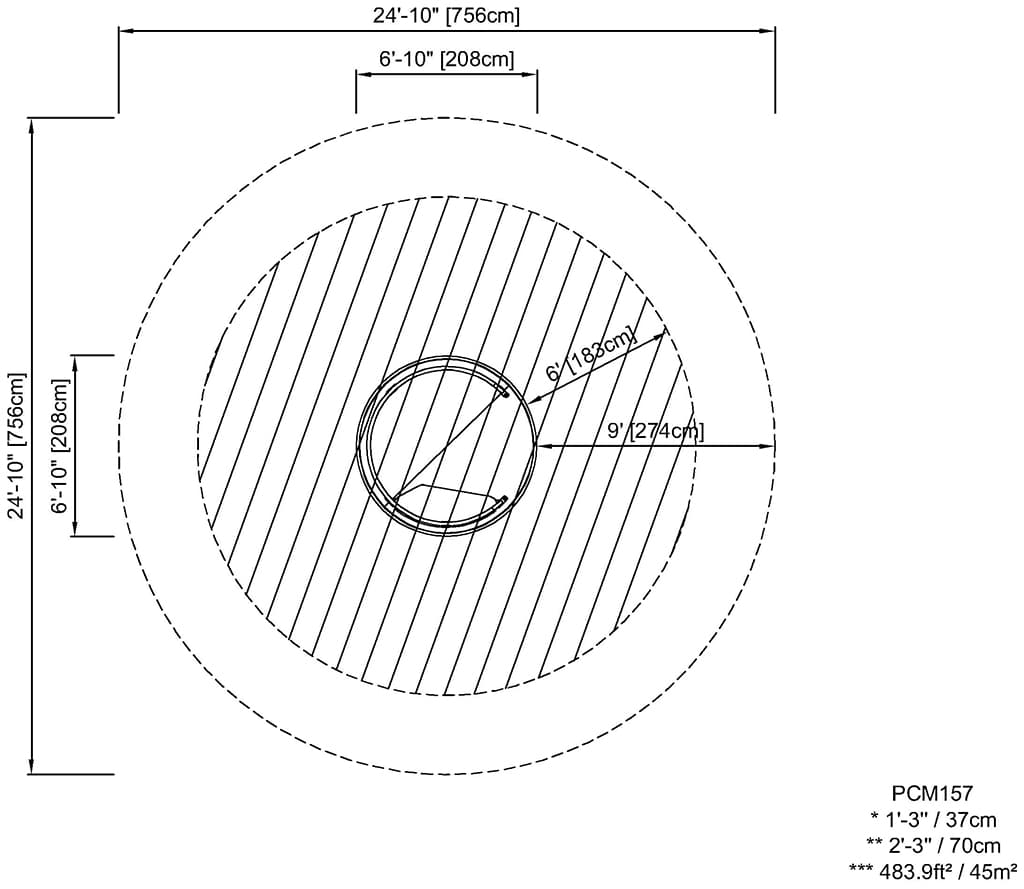

Safety Zone Length
24' 10"
Safety Zone Width
24' 10"
Warranties and certificates
Hot dip galvanized steel
Lifetime
Aluminum deck
15 Years
HPL seat
15 Years
Bearing construction
5 Years
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 – PLAY - CERTIFIED
Installation information
Max. fall height
1' 3"
Safety surfacing area
484 ft²
Anchoring options
In-ground
