Sway alley
Physical
passing the swaying bridge steps develops the sense of balance, which is fundamental in navigating the world securely.
Social-Emotional
passing others on the way supports consideration and turn-taking skills.
The Sway Alley hugely attracts children to try out their balancing skills. It will be a playground success, again and again, thanks to the responsive horizontal logs. For every step...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
4' 0"
Width
7' 6"
Height
4' 1"
The Sway Alley hugely attracts children to try out their balancing skills. It will be a playground success, again and again, thanks to the responsive horizontal logs. For every step the child takes, it trains important physical skills: use of the sense of balance, tensioning muscles in the feet, legs, core and arms to adjust equilibrium. For less trained bridge-walkers, the side beams add a welcomed support. Walking the Wobble bridge is a highly social experience also. Children feel the movements of all the other children on the bridge thanks to the interconnected horizontal and vertical carrier chains. This feature adds to the physical challenge of keeping the balance when passing the bridge. It additionally spurs cooperation, negotiation, turn-taking and consideration. These are important socio-emotional life skills, when making friends.
This product, Sway Alley (PCM80921), is provided by KOMPAN United States.
Main posts with hot-dip galvanized steel footing are available in different materials: Pressure impregnated pinewood posts. Pre-galvanized inside and outside with powder-coated top finish steel posts. Lead-free aluminum with color anodized top finish. Greenline TexMade posts of 100% post-consumer recycled PE and textile waste.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of a core produced from 100% recycled material.
The steel surfaces are hot-dip galvanized inside and outside with lead-free zinc. The galvanization has excellent corrosion resistance in outside environments and requires minimal maintenance.
TexMade™ posts used as stepping bars are made of 100% post-consumer recycled PE and textile waste.
Chains are made of high-quality stainless-steel to ensure durability of the product.
KOMPAN GreenLine versions are constructed with the most environmentally friendly materials with the lowest possible CO2e emission factor. TexMade posts, EcoCoreTM panels of 100% post-consumer recycled ocean waste, and molded PP decks.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
PCM80921-0950
204.91
Total CO₂ emission (kg CO₂e)
1.2
CO₂e/kg (kg CO₂e/kg)
79.44%
Recycled materials
CO₂ friendly
PCM80921-0901
232.7
Total CO₂ emission (kg CO₂e)
1.49
CO₂e/kg (kg CO₂e/kg)
74.61%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
Freestanding Play Equipment
Product line
Balancing and Climbing
Product number
PCM80921
Activities
Balance
Sensory
Socialize
Sway
ADA
Accessible ground level activities
1
Accessible ground level play types
1
Dimensions
Length
4' 0"
Width
7' 6"
Height
4' 1"

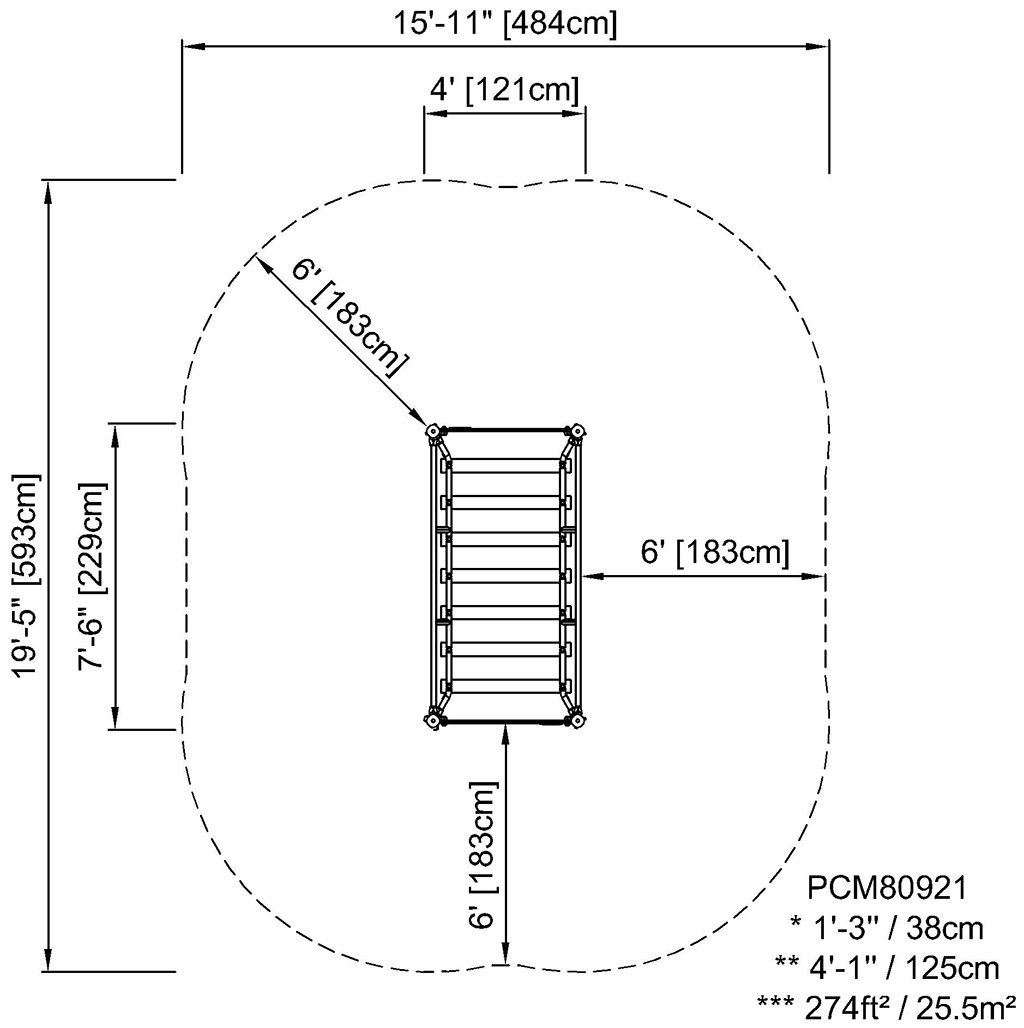

Safety Zone Length
15' 11"
Safety Zone Width
19' 5"
Warranties and certificates
Hot dip galvanized steel
Lifetime
EcoCore HDPE
Lifetime
Post
10 Years
Chains
10 Years
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 - COMPLIANT
Installation information

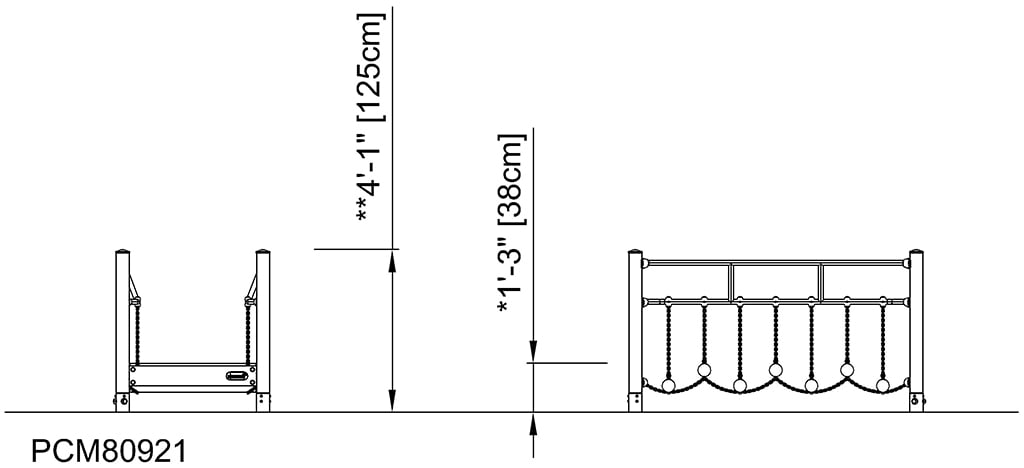

Max. fall height
1' 3"
Safety surfacing area
274 ft²
Anchoring options
Surface, In-ground
