An innovative magnetic breaking system allows the user to increase the resistance by increasing the speed of movement. The patented system also functions as a brake when someone drops the magnetic bells and will reduce the impact significantly. The option to choose between a light, medium or heavy training weight offers a scalable training and it makes the Magnetic Bells an accessible piece of equipment for both the trained and the untrained. The Magnetic bells move freely up and down and can spin 360° allowing, users to do undertake similar workouts that one would complete with either medicine balls or kettlebells.
Photos are for conceptual purpose only. Deviations can occur.

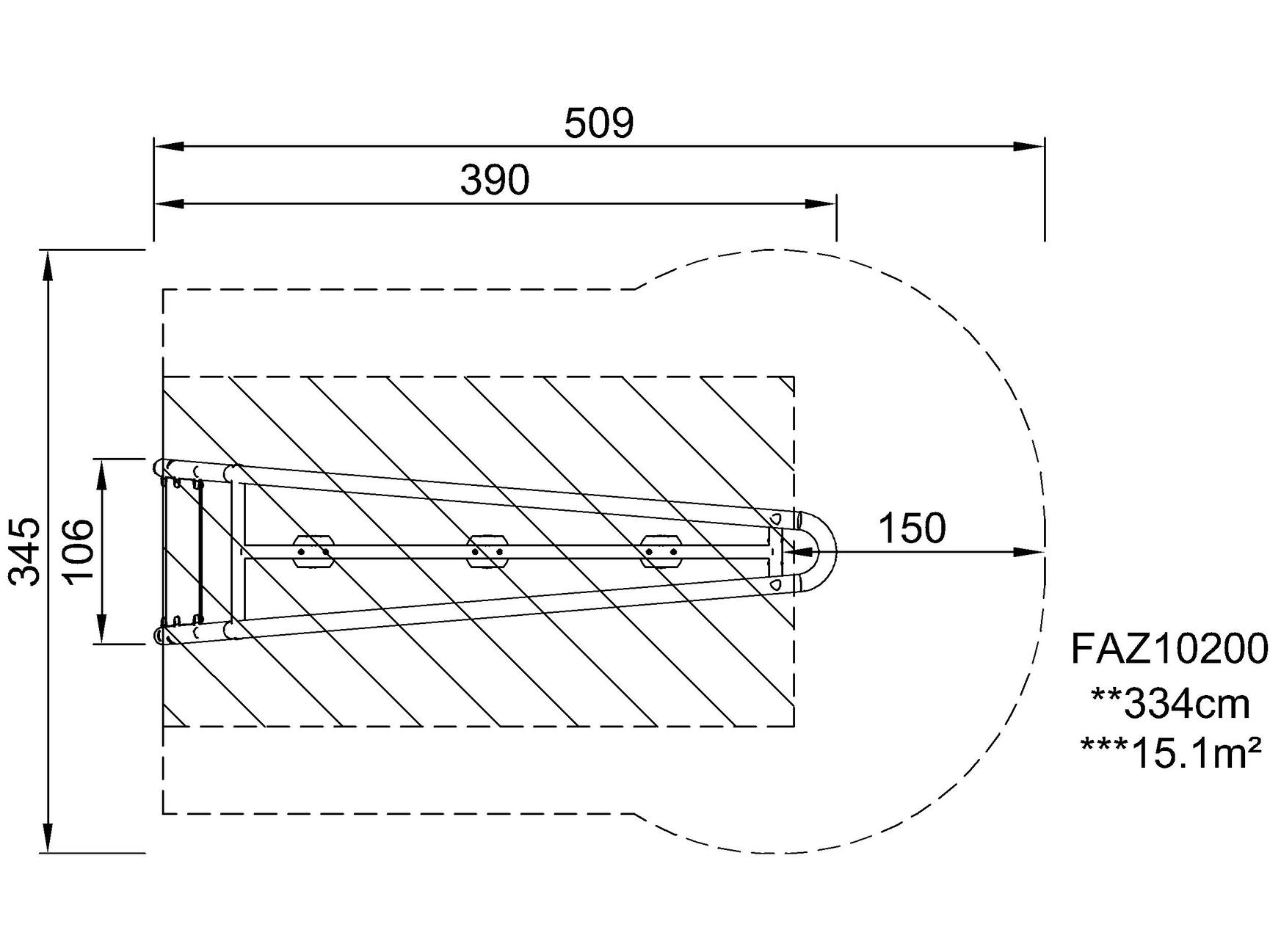

Length
390 cm
Width
106 cm

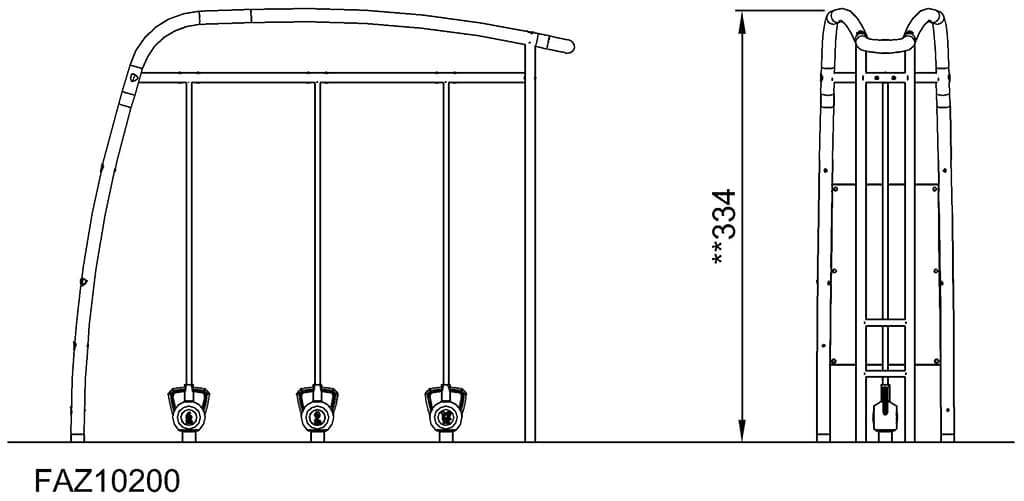

Height
334 cm
Specifications
An innovative magnetic breaking system allows the user to increase the resistance by increasing the speed of movement. The patented system also functions as a brake when someone drops the magnetic bells and will reduce the impact significantly. The option to choose between a light, medium or heavy training weight offers a scalable training and it makes the Magnetic Bells an accessible piece of equipment for both the trained and the untrained. The Magnetic bells move freely up and down and can spin 360° allowing, users to do undertake similar workouts that one would complete with either medicine balls or kettlebells.
This product, Magnetic Bells Pro (FAZ102), is provided by KOMPAN Australia.
Quality that lasts
The uniquely designed magnetic bells are made of PUR and a reinforced aluminium steel frame that ensures a strong design. The ergonomically shaped handles guarantee a good and comfortable grip for all users.
The big instruction signs are made as a sandwich construction consisting of 2 x 6mm polycarbonate sheets with clear instructions printed on the inside of the panels. This provides a vandalism proof solution.
The magnets which are used are high strength neodymium magnets. The magnetic radiation is under strict control, the radiation level never exceeds 5 Gauss (0.5mT), which makes them perfectly safe to use as a training item.
The tubes on which the magnetic bells move on are ø40mm, made of grade AW 6082-T6 aluminium and have an anodized layer of 20µm. The tube has a full steel core for structural integrity.
To ensure the integrity of the mainframe is maintained, the orange coloured main posts are made of ø101.6 x 3mm steel posts, which are hot-dip galvanised and powder coated in a variety of colours options. The supportive posts receive the same surface treatment and are made of ø76.1 x 3.6mm steel tubes and finished with coloured powder coating.
All of KOMPAN's fitness products are compliant with AS 4685:2021, ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed to the specified load of 78kg per user. A product intended for one user is loaded with 420kg.
CO₂ emission
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
FAZ10200-0900
993.4
Total CO₂ emission (kg CO₂e)
3.38
CO₂e/kg (kg CO₂e/kg)
41.78%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
