FAZ50201

Sport Bike Pro Touchscreen

QR Code for Kompan EN/INT frontpage

Try our AR-app

Sport Bike Pro Touchscreen

Colour ORANGE

Loading Designer
The Sport Bike is an adjustable and interactive piece of cardio equipment, with the same quality and effectiveness you would expect at an indoor fitness centre. The Sport bike is all about an active riding style, with the frame in a forward leaning position for optimized riding performance, and an adjustable height for the sport bike saddle so that everyone can use the bike in the right position. The patented, self-powered resistance units create a real road cycle experience, where resistance can automatically adapt depending on the pedalling speed. Alternatively, by using the 7'' touchscreen or KOMPAN App, users can choose to manually change the resistance.
Photos
Photos
Photos

Photos are for conceptual purpose only. Deviations can occur.

13+ Years1 Users

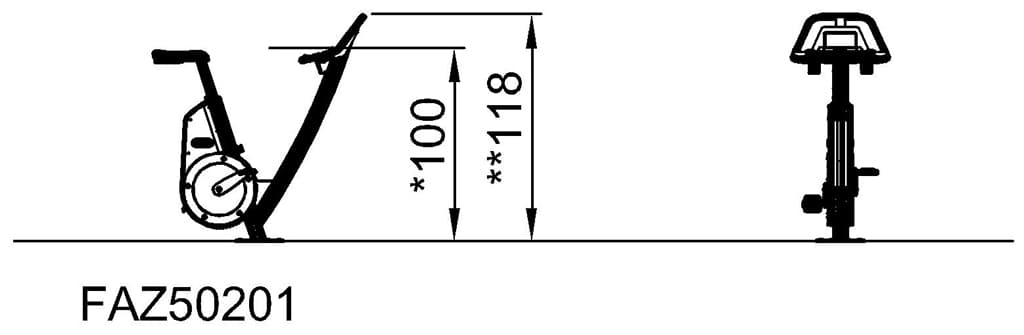

Side View (image)

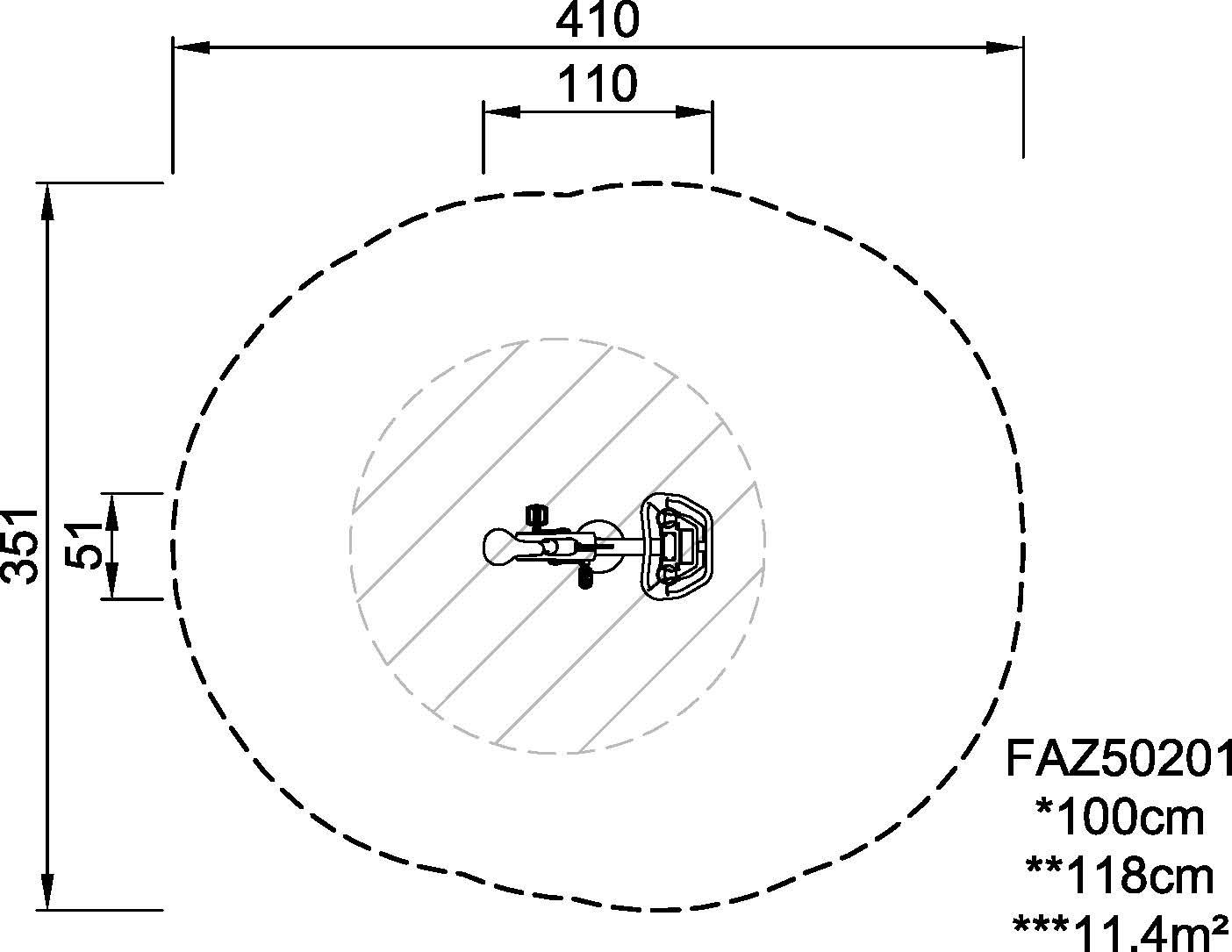

Foot Print (image)

Length

110 cm

Width

51 cm

Height

118 cm

Specifications

The Sport Bike is an adjustable and interactive piece of cardio equipment, with the same quality and effectiveness you would expect at an indoor fitness centre. The Sport bike is all about an active riding style, with the frame in a forward leaning position for optimized riding performance, and an adjustable height for the sport bike saddle so that everyone can use the bike in the right position. The patented, self-powered resistance units create a real road cycle experience, where resistance can automatically adapt depending on the pedalling speed. Alternatively, by using the 7'' touchscreen or KOMPAN App, users can choose to manually change the resistance.

This product, Sport Bike Pro Touchscreen (FAZ50201), is provided by KOMPAN Australia.

Quality that lasts

FAZ_Polyurethane saddle

The saddle is made of polyurethane rubber and is provided with a steel insert plate that connects it to the aluminium seat post. The saddle can be adjusted to 13 different heights with the help of a stainless steel pop pin

FAZ_Lexan cover

The cover is 4mm thick and made of Lexan ™ Copolymer EXL9330, which is one of the toughest materials available in the world.

FAZ_Q Factor arm bike

The Q factor of the bike is 175 mm. The crank is made of 18 mm stainless steel and connects the pedal arms, which are cast from stainless steel (grade 304). The length of the pedal arms is 170 mm. The pedals are connected to standard bicycle fittings.

FAZ_Self powered electrical motor 26 - Watts

The innovative self-powered electrical motor and gear are providing a virtual flywheel to give real road cycle experience. The resistance works as an automatic drive and adapts automatically to the pedalling speed. The users can overwrite the automatic drive manually by changing the resistance in steps (26-750 Watts) through KOMAPN's free fitness application.

FAZ_Handle bars with screen

The handle bars are designed with multiple hand positions to accommodate different postures and riding styles. The handle bars is manufactured from a casted aluminium part with polyurea coating for good grip and insulation. The bike has a 7'' colour LCD connected console with real-time feedback. The screen has an IK8 and IP65 protection.

FAZ_Bluetooth connection

Users can connect their mobile phones or tablets to the cardio machines via bluetooth. This will provide instant feedback on speed, distance, cadence, watts, calories burnt. Through the KOMPAN Fitness App users can also use their smart devices to adjust resistance (10 levels) manually, and view instructional and motivational videos, store and share activity data online.

CO₂ emission

Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.

FAZ50201-0801

336.97

Total CO₂ emission (kg CO₂e)

4.47

CO₂e/kg (kg CO₂e/kg)

34.79%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
