Get an intense upper body workout with KOMPAN's award-winning Arm Bike cardio machine. Designed to be inclusive, the Cycle Bike is highly versatile as it offers wheelchair accessibility and functions from a standing or seated position. The function of the Arm Bike is familiar to users as the design holds similarities to indoor equivalent products. In addition, ergonomic-shaped handles have been included to accommodate multiple exercising positions and provide good grip, ensuring users can operate the system efficiently. The patented, self-powered resistance units create a real road cycle experience. Users can adapt their workouts across ten resistance levels with KOMPAN's award-winning cardio app, or the cycle bike can adjust automatically, depending on the pedalling speed, which ultimately makes every workout effective.
Photos are for conceptual purpose only. Deviations can occur.

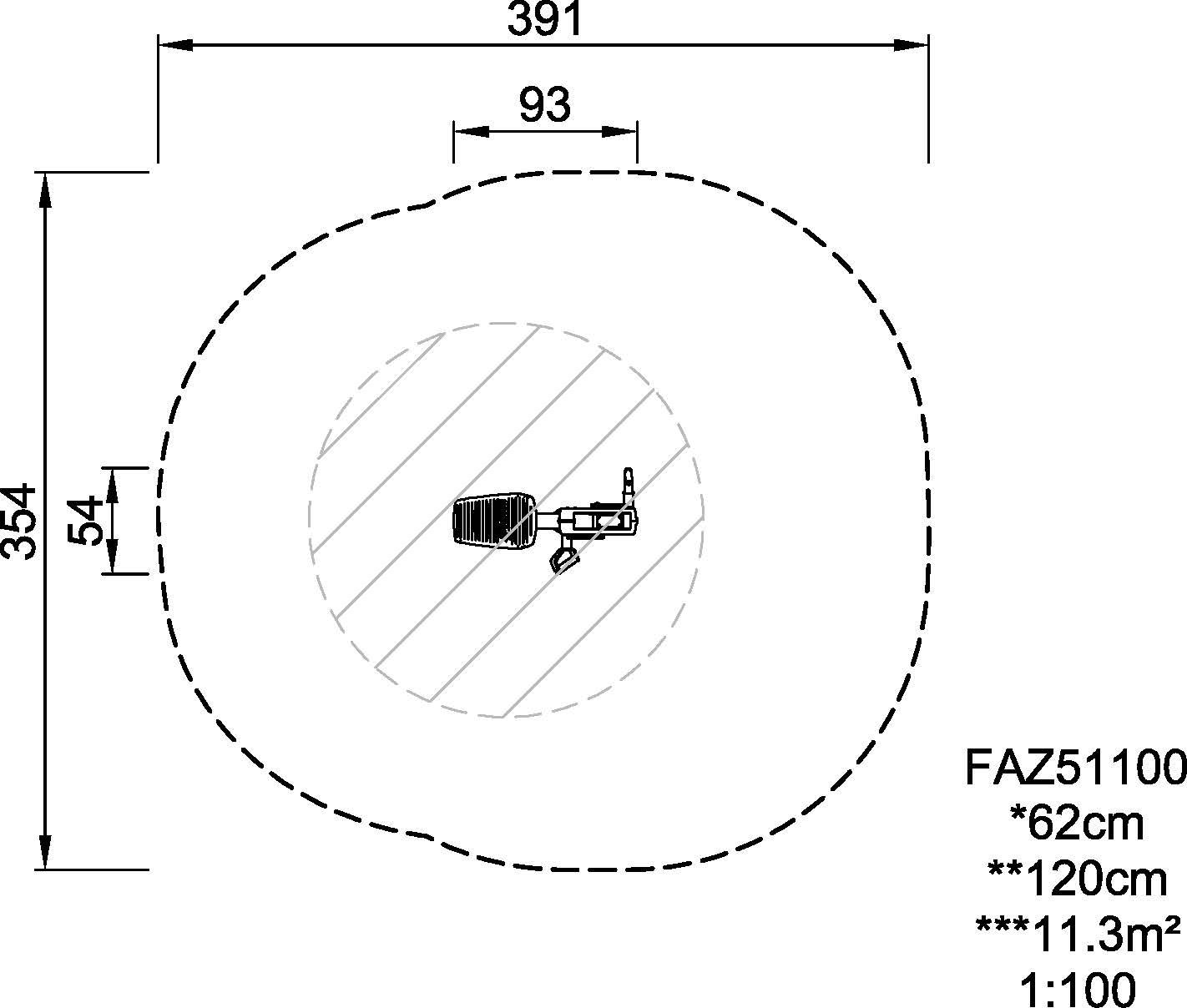

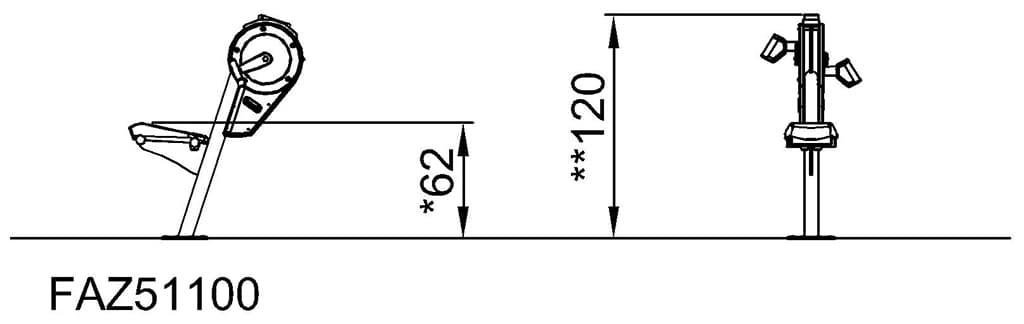

Length
93 cm
Width
54 cm
Height
120 cm
Specifications
Get an intense upper body workout with KOMPAN's award-winning Arm Bike cardio machine. Designed to be inclusive, the Cycle Bike is highly versatile as it offers wheelchair accessibility and functions from a standing or seated position. The function of the Arm Bike is familiar to users as the design holds similarities to indoor equivalent products. In addition, ergonomic-shaped handles have been included to accommodate multiple exercising positions and provide good grip, ensuring users can operate the system efficiently. The patented, self-powered resistance units create a real road cycle experience. Users can adapt their workouts across ten resistance levels with KOMPAN's award-winning cardio app, or the cycle bike can adjust automatically, depending on the pedalling speed, which ultimately makes every workout effective.
This product, Arm Bike Pro (FAZ51100), is provided by KOMPAN Australia.
Quality that lasts
The seat is made of a Polyurethane Rubber and has a steel insert plate which provides a connection point to the steel frame. The seat is positioned under a 12-degree angle, accommodating for seated heights from 550-620mm.
The cover is 4mm thick and made of Lexan ™ Copolymer EXL9330, which is one of the toughest materials available in the world.
The Q factor of the bike is 175 mm. The crank is made of 18 mm stainless steel and connects the pedal arms, which are cast from stainless steel (grade 304). The length of the pedal arms is 170 mm. The pedals are connected to standard bicycle fittings.
The innovative self-powered electrical motor and gear are providing a virtual flywheel to give real road cycle experience. The resistance works as an automatic drive and adapts automatically to the pedalling speed. The users can overwrite the automatic drive manually by changing the resistance in steps (26-750 Watts) through KOMAPN's free fitness application.
The ergonomically shaped handles accommodate for three exercising positions; standing, seated in a wheelchair or seated on the seat. The handles have a diameter of ø36mm and are placed under a 30-degree angle. The top coat is polyurea provides good protection, grip and isolation.
Users can connect their mobile phones or tablets to the cardio machines via bluetooth. This will provide instant feedback on speed, distance, cadence, watts, calories burnt. Through the KOMPAN Fitness App users can also use their smart devices to adjust resistance (10 levels) manually, and view instructional and motivational videos, store and share activity data online.
CO₂ emission
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
FAZ51100-0801
267.14
Total CO₂ emission (kg CO₂e)
4.11
CO₂e/kg (kg CO₂e/kg)
37.24%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
