FSW103

Combi 3

QR Code for Kompan EN/INT frontpage

Try our AR-app

Combi 3

Colour ORANGE

Loading Designer

FSW103

Combi 3

  • Gallery
  • Specifications
  • Features
The Combi 3 is the complete street workout experience, featuring all essential elements while inviting users to creatively find their way from one side to the other. The Combi 3 is also perfect for parkour, allowing for an infinite range of movement. The Pull Up Bar is made from solid steel and has a diameter of Ø32 mm, an ideal size for both men and women to have a good grip. As the Bar hangs at a height of 233 cm everyone will be able to hang freely and use the bar for a variety of Pull Ups. The overhead ladder is wide and high to ensure anyone can hang and move freely with four stepping pods at different heights to ensure that everyone can reach the overhead ladder
13+ Years8 Users

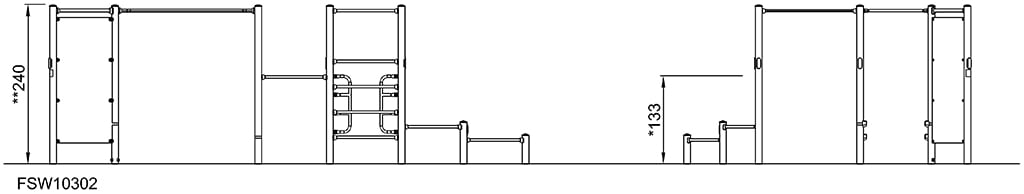

Side View (image)

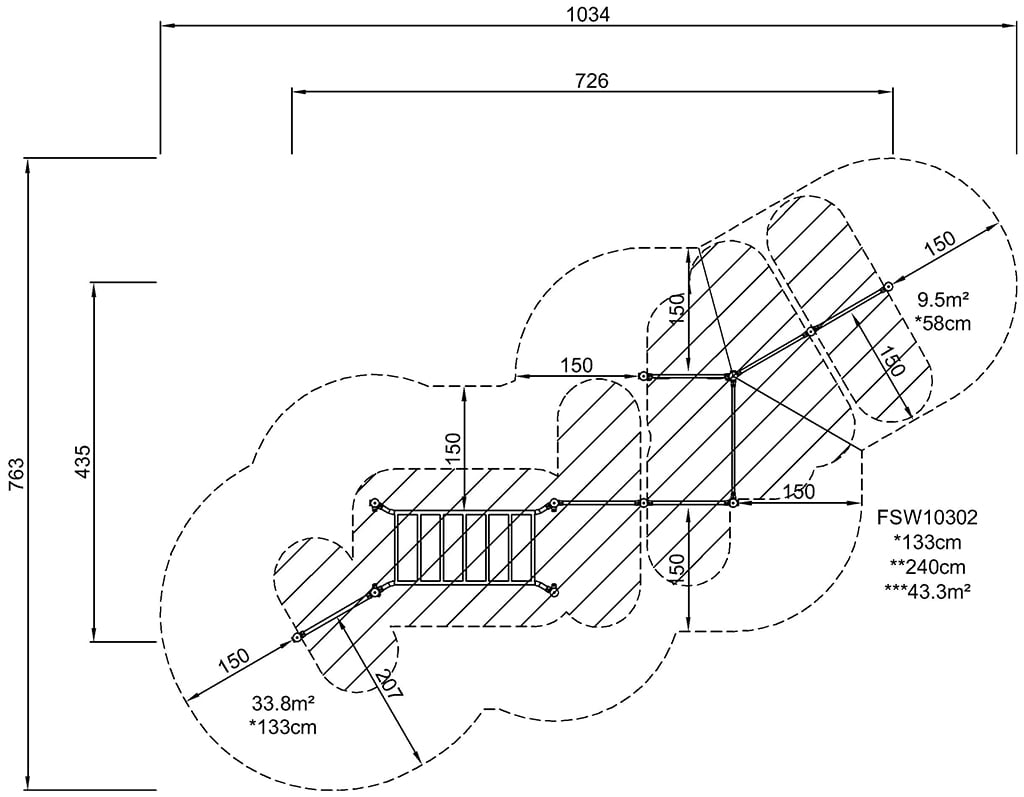

Foot Print (image)

Length

726 cm

Width

434 cm

Height

240 cm

Specifications

The Combi 3 is the complete street workout experience, featuring all essential elements while inviting users to creatively find their way from one side to the other. The Combi 3 is also perfect for parkour, allowing for an infinite range of movement. The Pull Up Bar is made from solid steel and has a diameter of Ø32 mm, an ideal size for both men and women to have a good grip. As the Bar hangs at a height of 233 cm everyone will be able to hang freely and use the bar for a variety of Pull Ups. The overhead ladder is wide and high to ensure anyone can hang and move freely with four stepping pods at different heights to ensure that everyone can reach the overhead ladder

This product, Combi 3 (FSW103), is provided by KOMPAN Australia.

Quality that lasts

FSW_Post

The post is made of Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated which is a great protection solution for all climate conditions.

FSW_Connectors

The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.

FSW_Pull up bars 32mm

All bars intended for pull ups are made of solid, ø32mm x 138m, hot-dip galvanised, S235JR steel bars. This diameter gives the right grip for all users.

FSW_Handles in four hights

The handles offer four different heights to place the hands or feet; 48cm, 76cm, 104cm and 132cm, creating the opportunity to scale the difficulty of the exercise.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercises. When users scan the QR code, this will link them to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN Fitness App, which is programmed with many more exercise alternatives.

FSW rope

The ropes are made of UV-stabilised PES with inner steel cable reinforcement. The rope is induction treated in order to create a strong connection between steel and rope which leads to good wear resistance.

CO₂ emission

Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.

FSW10301-0901

484.27

Total CO₂ emission (kg CO₂e)

2

CO₂e/kg (kg CO₂e/kg)

67.77%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
