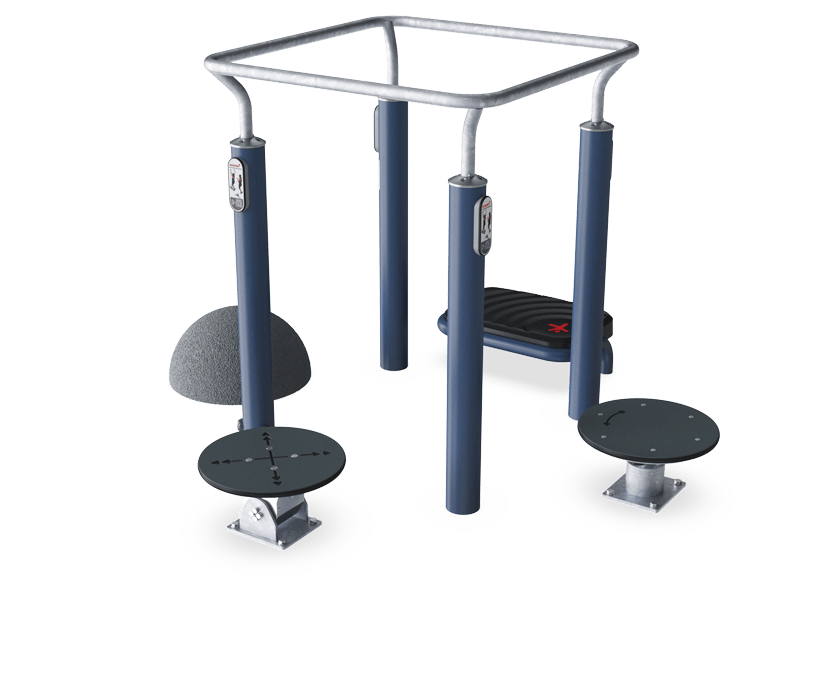

The Balance station trains ankle strength and stability with the four items in the station having different difficulty levels that allow for progression and a challenge for every user type. At the same time, the placement of the four stations around the ring promotes moderate social interaction. The wobble boards train ankle control and flexibility and is present in two difficulty levels. One that is stable and limited in its range of motion and one that is livelier and more dynamic. Rotation can be used for rotational flexibility of the torso and for lower limb balance and control standing on one or two feet. The half ball provides a fixed and stable platform to train ankle strength and flexibility.
Photos are for conceptual purpose only. Deviations can occur.

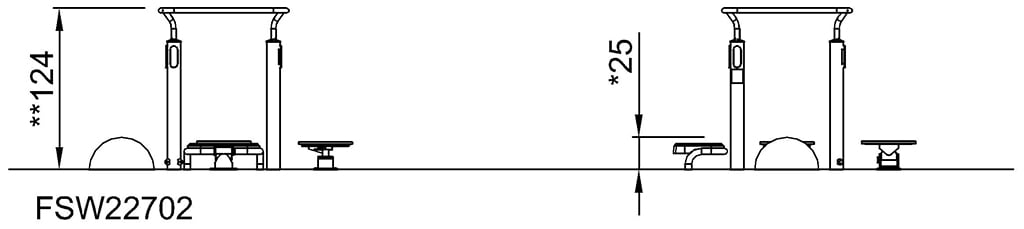

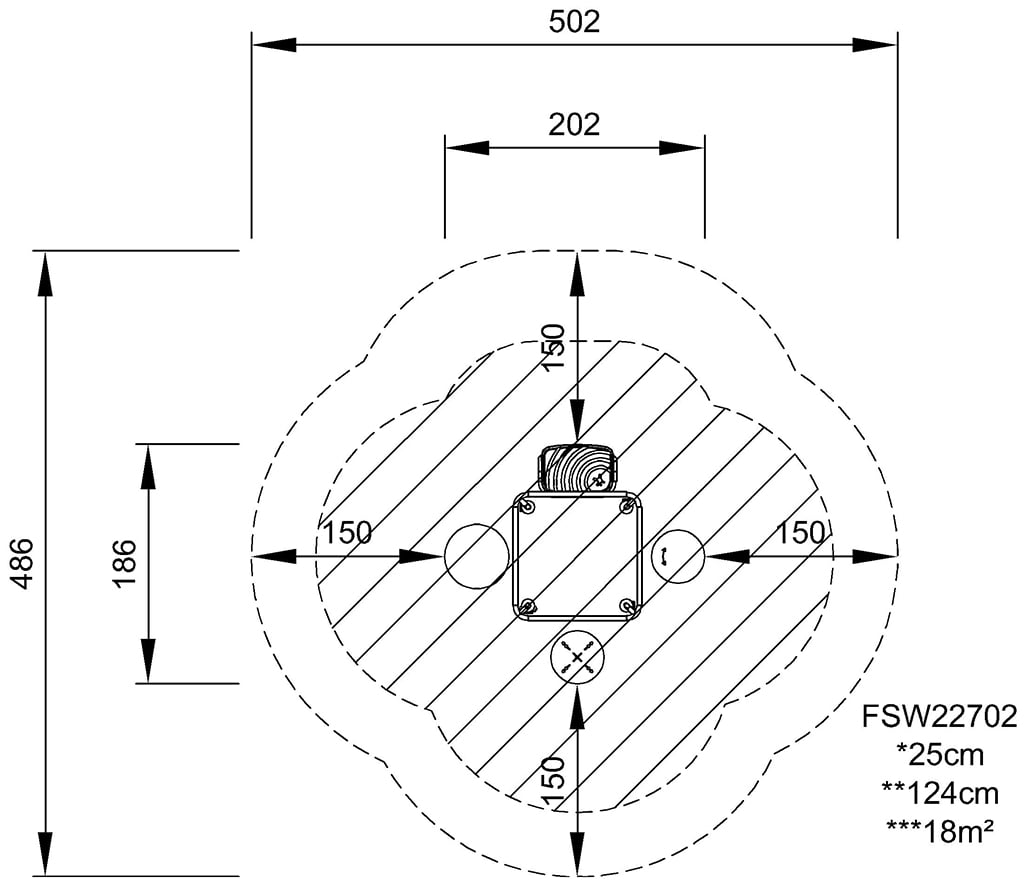

Length
202 cm
Width
198 cm
Height
124 cm
Specifications
The Balance station trains ankle strength and stability with the four items in the station having different difficulty levels that allow for progression and a challenge for every user type. At the same time, the placement of the four stations around the ring promotes moderate social interaction. The wobble boards train ankle control and flexibility and is present in two difficulty levels. One that is stable and limited in its range of motion and one that is livelier and more dynamic. Rotation can be used for rotational flexibility of the torso and for lower limb balance and control standing on one or two feet. The half ball provides a fixed and stable platform to train ankle strength and flexibility.
This product, Balance Station (FSW227), is provided by KOMPAN Australia.
Quality that lasts
The double ROSTA element is made of casted iron and hot-dip galvanised before being painted. This ensures that the ROSTA element is a maintenance-free, elastic joint which can move in 250 degrees in any direction. Both wobbles have different stiffness and differences of 45%.
The bearings used in the twist are slide bearings. These are made from extremely strong polyoxymethylene which is low wearing, highly mechanical, moisture absorbant and provides high abrasion resistance.
The half ball is ø500x250. The material is SBR granular rubber, recycled SBR (Styrene Butadiene Monomer, Synthetic Rubber) UV stabilised to a maximum without the use of heavy metal stabilities, for optimal grip during jumping and stepping exercises under all weather circumstances.
The ø414mm top plate is made from 15mm Ekogrip®, a 15mm PE plate with a 3mm top-layer of thermoplastic rubber with non-skid effect. The height is 217mm and the range of motion is +/- 90˚, with a EPDM rubber stop at each end.
Handrail intended as grips during exercises are made of hot-dip galvanised steel ø38mm, a great diameter for a good grip and to support the wrist. The height of the handrail is 940mm from the top of the HPL plate. The distance between the rails is 900mm.
The information sign is made of a PA6 (Polyamide) and shows the most relevant exercises. When users scan the QR code, this will link them to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN Fitness App, which is programmed with many more exercise alternatives.
CO₂ emission
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
FSW22700-0902
333.58
Total CO₂ emission (kg CO₂e)
2.05
CO₂e/kg (kg CO₂e/kg)
62.1%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
