Physical
the rotation develops the sense of balance and space, children use their muscle strength and strengthen their cardio.
Social-Emotional
listening and negotiating how slow or fast to go, children develop empathy and cooperation skills.
When playing on this large overhead rotating carousel with 4 seats, you need to use your strength and hold your balance! This seems to be the best way to describe...
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
316 cm
Width
316 cm
Height
253 cm
When playing on this large overhead rotating carousel with 4 seats, you need to use your strength and hold your balance! This seems to be the best way to describe the kind of play that takes place on the Saturn Carousel. This play equipment includes both physical skills like muscle and cardio whilst strengthening bone density when you jump off and arm, leg, and core muscles when helping friends to spin. It also supports social skills through cooperation and teamwork as well as providing a hang-out place for chatting while gently spinning.
This product, Saturn Carousel, 4 seats (GXY958), is provided by KOMPAN Australia.
Saturn ropes are manufactured from a with a six-stranded steel wire core that is tightly wrapped with PES yarn which is melted onto each strand. A second surface coat of harder PES is also applied, to ensure the rope is highly durable and vandalism-resistant.
The specially designed seat is made from a stainless-steel insert covered with a soft layer of PUR rubber. The seat is impact tested to comply with global playground standards, and the rope has an ergonomic handhold of a 100cm long moulded on PUR rubber handle.
The two angled top handles are made of a moulded PP insert with a soft outer layer of TPV rubber. The handle is attached to the pipe with a galvanised steel inlay to ensure strength and durability.
The steel surfaces are hot-dip galvanised inside and outside with lead-free zinc. The galvanisation has excellent corrosion resistance in outside environments and requires low maintenance.
Heavy-duty engineered bearing system with single row deep groove ball bearings with rubber seals. The fully closed bearing has lifetime lubricated and maintenance free.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
GXY958000-3817
585.81
Total CO₂ emission (kg CO₂e)
2.77
CO₂e/kg (kg CO₂e/kg)
45.44%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
6+ Years
Key user group
6 - 15 Years
Capacity
Inclusive
No
Product category
Freestanding Play Equipment
Product line
Spinners & Carousels
Product number
GXY958
Activities
Balance
Hang in arms
Jump
Pull
Push
Rotate
Sensory
Socialise
Sway

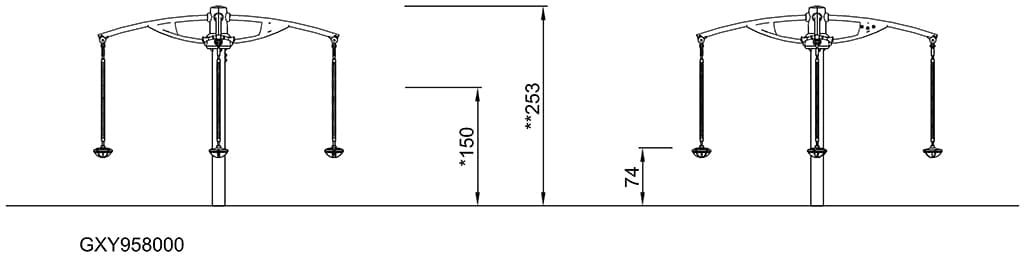

Dimensions
Length
316 cm
Width
316 cm
Height
253 cm
Fall Space Length
1540 cm
Fall Space Width
1540 cm
Warranties and certificates
Galvanised Steel
Lifetime
PUR Components
10 years
Bearing Construction
5 years
Ropes & Nets
10 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Max. fall height
150 cm

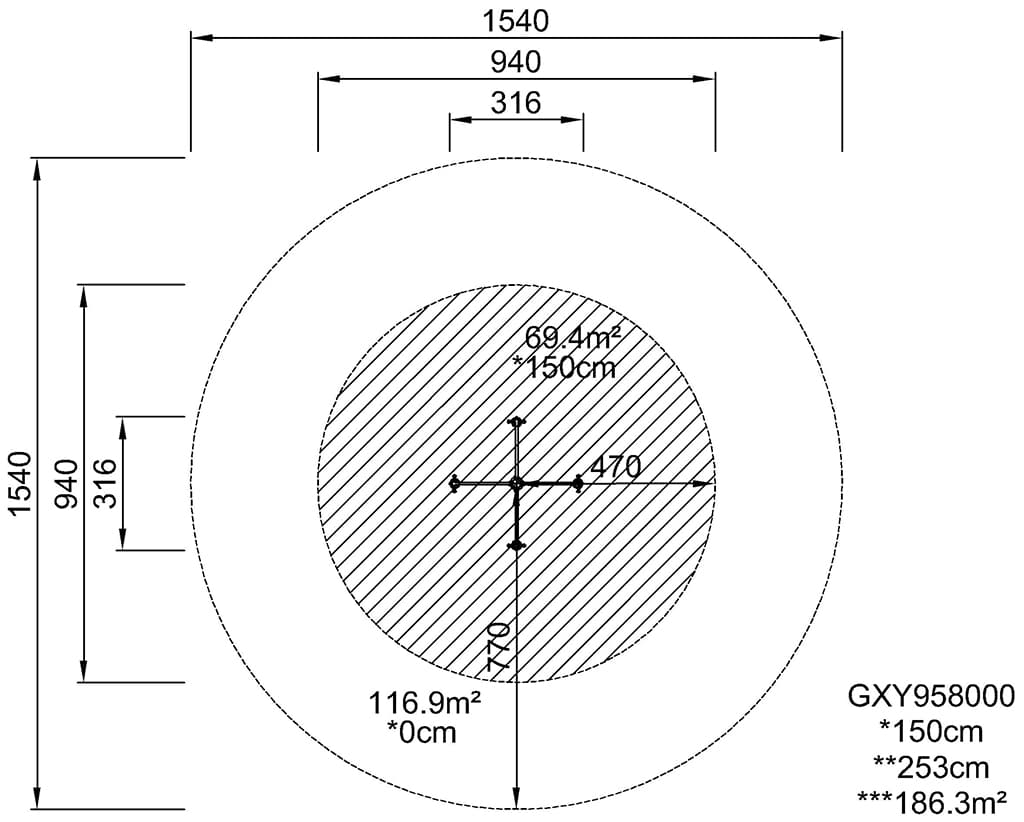

Fall space area
186.3 m²
Anchoring options
In-ground, Surface
Downloads
Tender specifications
Looking for tender specifications for this product?
