Bell
Cognitive
understanding cause and effect when ringing bell.
Creative
leaving a mark in creating a sound rhythm when ringing or knocking the bell.
The Home and Garden is loaded with play and is guaranteed to promote longer playtimes with numerous benefits for children's physical, social-emotional, cognitive, and creative development. The structure has numerous...
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
153 cm
Width
120 cm

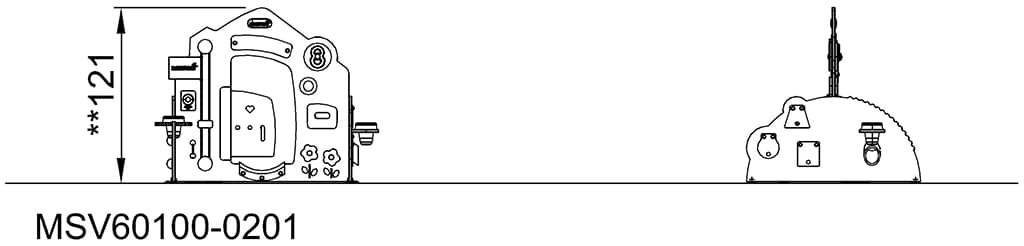

Height
121 cm
The Home and Garden is loaded with play and is guaranteed to promote longer playtimes with numerous benefits for children's physical, social-emotional, cognitive, and creative development. The structure has numerous features to engage the child's senses and to support social play and cooperation as well. With interaction on all sides, children will play together to enjoy the fun together. Special features such as the tubes and the pulley fascinate young children because of the cause and effect relationship between what the child does the effect on the moving parts. Pulling and turning activities support fine motor skills, and the structure as a whole supports large motor movement and development. This is an amazing piece that children will return to again and again.
This product, Home & Garden (MSV601), is provided by KOMPAN Australia.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of a core produced from 100% recycled material.
The sand pipe is made from rotomoulded PE, which is a durable material which is suitable for high-temperature span climates.
Pots are made of pressure moulded high-quality nylon (PA6) which has good wearing and impact strength.
Membranes consist of friction-proof rubberised material of conveyor belt quality with excellent UV resistance. Embedded is a four-layered armouring made of woven polyester. The armouring and the two surface layers result in a total thickness of 7 mm.
The flag is made of polyester, which is a strong and durable solution.
Edge protection is made of PUR. It retains its properties in the temperature range of -30°C to 60°C. Material is UV stabilised.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
MSV60100-0201
52.69
Total CO₂ emission (kg CO₂e)
1.2
CO₂e/kg (kg CO₂e/kg)
79.9%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
Order a Catalogue
Talk To An Expert´
Past Projects
The Research Behind Great Playgrounds
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised solution just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
6m+ Years
Key user group
1 - 4 Years
Capacity
Inclusive
Yes
Product category
Freestanding Play Equipment
Product line
Toddler Stations
Product number
MSV601
Activities
Construct
Dramatic play
Sensory
Socialise
Wonder
Dimensions
Length
153 cm
Width
120 cm
Height
121 cm

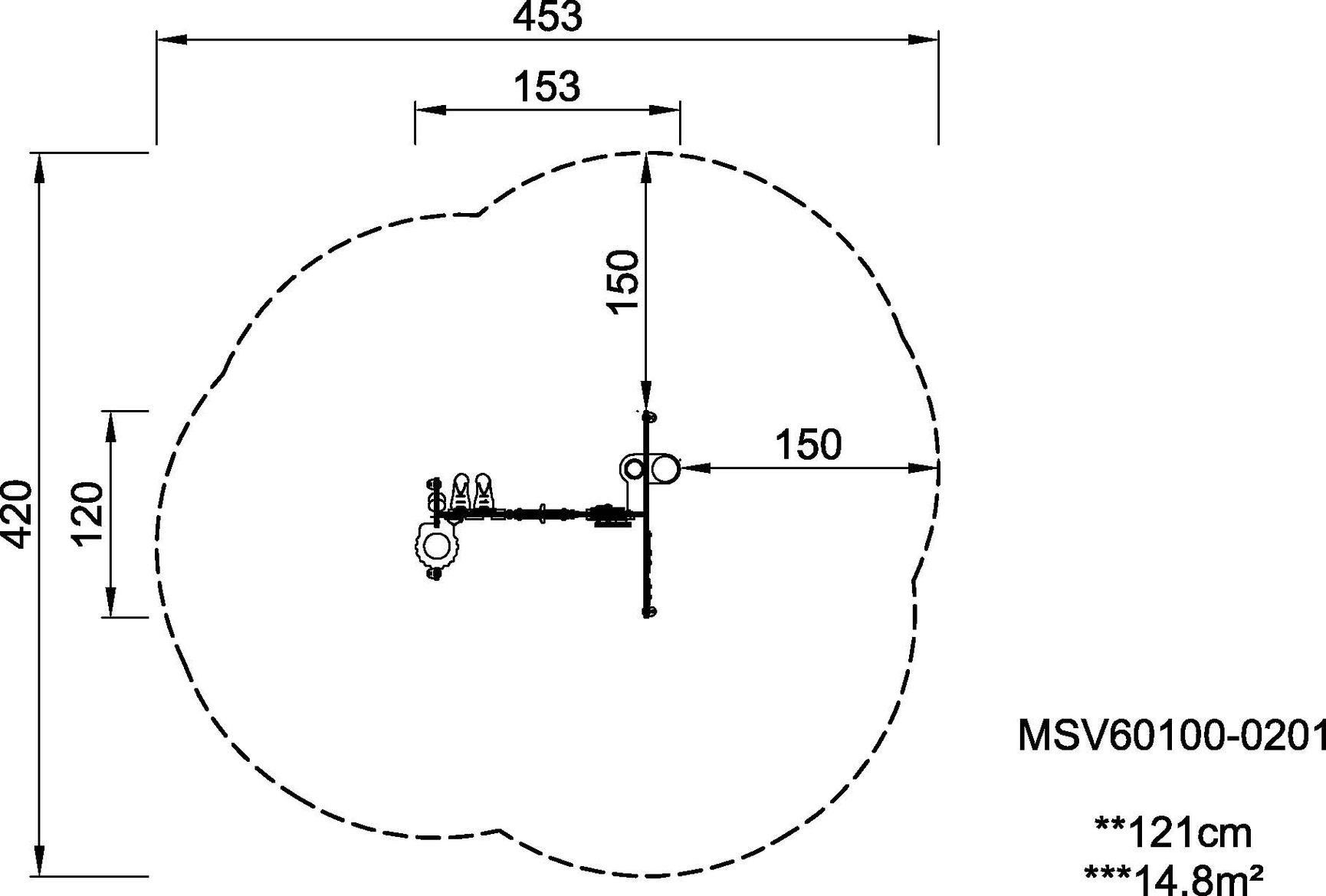

Fall Space Length
453 cm
Fall Space Width
420 cm
Warranties and certificates
EcoCore HDPE
Lifetime
Movable Parts
2 years
PUR Components
10 years
Membrane
2 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Fall space area
14.8 m²
Anchoring options
Surface
