Jacob's ladder
Physical
cross coordination and spatial awareness as well as upper body muscles when hanging with arms.
Social-Emotional
turn-taking and cooperation.
Cognitive
logical thinking when going from 2nd to 3rd step, changing feet.
The Rainer, with its impressive height, attracts children again and again. The wide array of fun activities ensures hours of play. The variety of climbing, sliding and swaying play events...
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
656 cm
Width
626 cm
Height
572 cm
The Rainer, with its impressive height, attracts children again and again. The wide array of fun activities ensures hours of play. The variety of climbing, sliding and swaying play events trains cross-body coordination and balance, which are both important for life skills like traffic safety. The sturdy climbing wall panel adds the opportunity to take a break with friends on the way up or down. The swaying shells under the platform offer a nice meeting spot. The inclined net brings climbers up to the banister bar and slide platforms offers soft-cross body coordination training. The banister bars and the tall slide are thrilling rewards for the climb. The Rainier is irresistibly climbable all over, inside out, meaning play opportunities everywhere, for many levels of development. It is a compact play experience with loads of challenges.
This product, Rainier (PCE210221), is provided by KOMPAN Australia.
The Curved ELEMENTS panels are moulded of UV stabilised recyclable PE with multiple options for in-build play features that also ensures a strong panel solution. Straight panels are made of KOMPAN 19mm PE EcoCore™ which is a highly durable, eco-friendly and recyclable material.
The climbing elements displayed are moulded in one piece with a minimum 5mm wall thickness. The climbing elements are made of recyclable PE, which has a high impact resistance across a wide temperature span and is also vandal resistance.
The ELEMENTS roofs are made of recyclable PE with a minimum wall thickness of 5 mm to ensure high durability in all climates around the world. The steel pipes are hot-dip galvanised inside and outside for maximum durability.
The main posts are made of high quality pre-galvanized steel with powder coated top finish. Post tops are closed with caps of UV stabilized nylon (PA6). The grey colored moulded decks are made of 75% post-consumer ocean waste PP material with a non-skid pattern and textured surface. All decks are supported by uniquely designed, low-carbon aluminum profiles with multiple attachment options.
ELEMENTS rubber membranes are conveyer belt made of layers of rubber mixed of natural rubber and SBR rubber and embedded with layers of armouring made of woven PE and PA. The thickness 8mm ensures high durability in any environment.
ELEMENTS ropes have six-stranded steel wires and a steel wire core. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. After initial friction has removed the surface fibres, a harder PES coating remains to protect each strand, making the ropes highly wear and vandalism resistant.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
PCE210221-0901
1823.86
Total CO₂ emission (kg CO₂e)
2.42
CO₂e/kg (kg CO₂e/kg)
52.97%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
6+ Years
Key user group
6 - 12 Years
Capacity
Inclusive
No
Product category
Play Systems
Product line
ELEMENTS™
Product number
PCE210221
Activities
Balance
Climb
Crawl
Glide
Hang in arms
Jump
Pull
Sensory
Slide
Socialise
Sway
Wonder

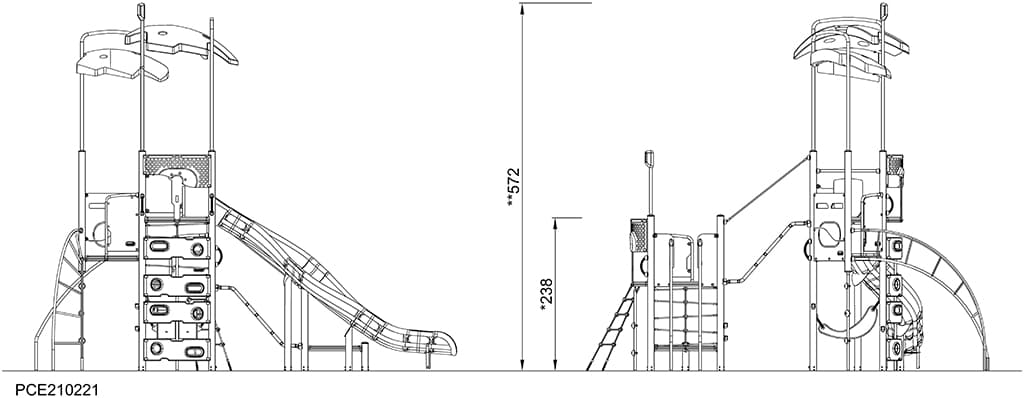

Dimensions
Length
656 cm
Width
626 cm
Height
572 cm

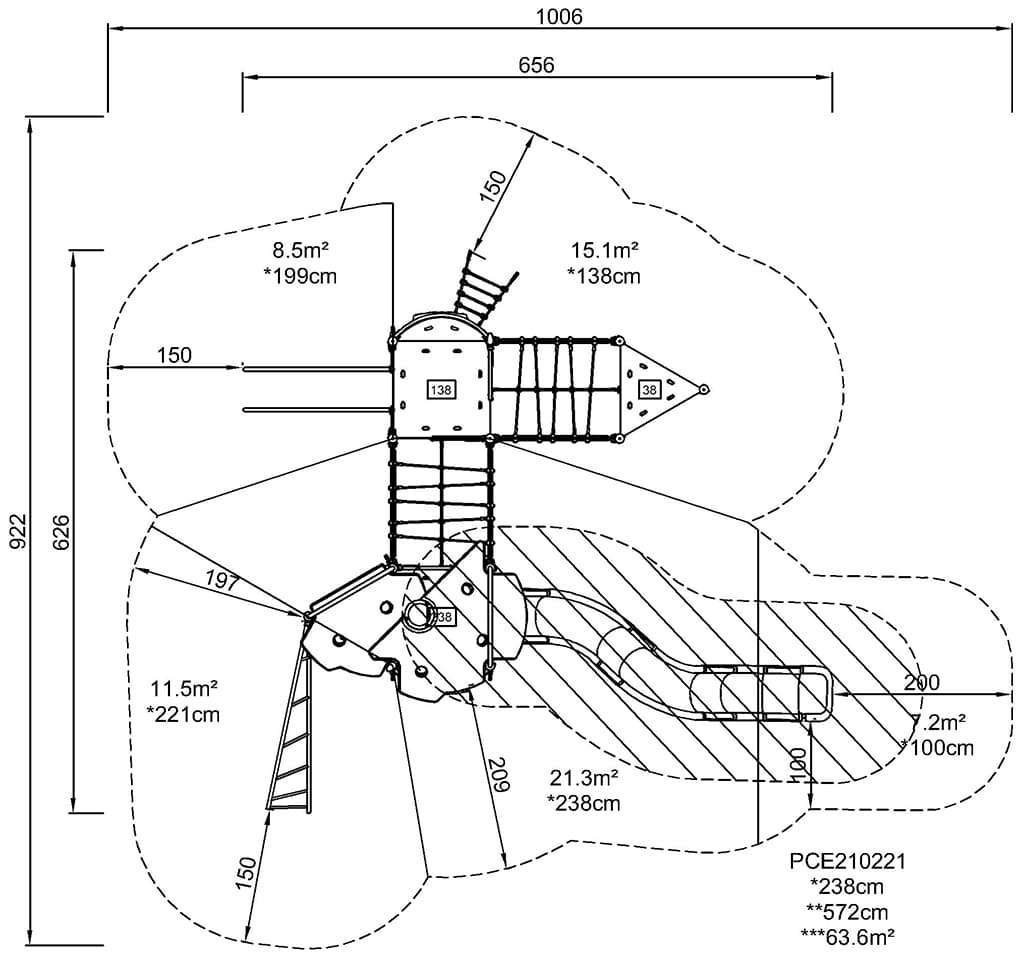

Fall Space Length
1006 cm
Fall Space Width
922 cm
Warranties and certificates
EcoCore HDPE
Lifetime
Post
10 years
Curved Panels
10 years
Membrane
2 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Max. fall height
238 cm
Fall space area
63.6 m²
Anchoring options
Surface, In-ground
Downloads
Tender specifications
Looking for tender specifications for this product?
