Curved slide
Physical
develops spatial awareness, sense of balance and trains core muscles when sitting upright going down.
Social-Emotional
empathy stimulated by turn-taking.
The curved embankment slide motivates fun for all children and those childish at heart. Due to the embankment run loop, children will run up and slide down again and again....
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

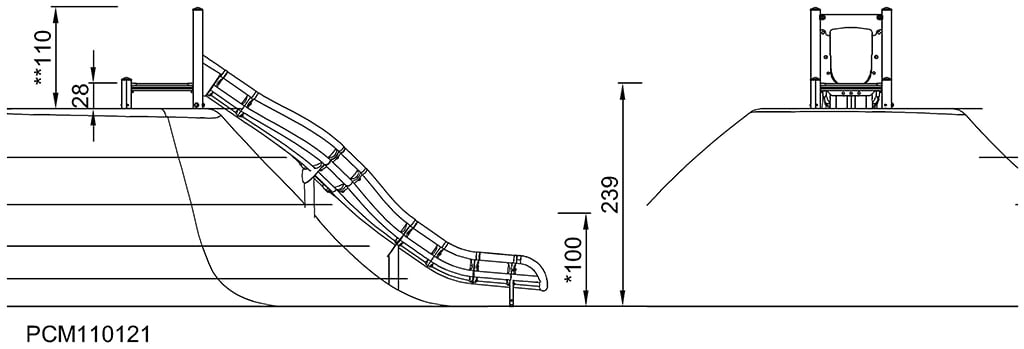

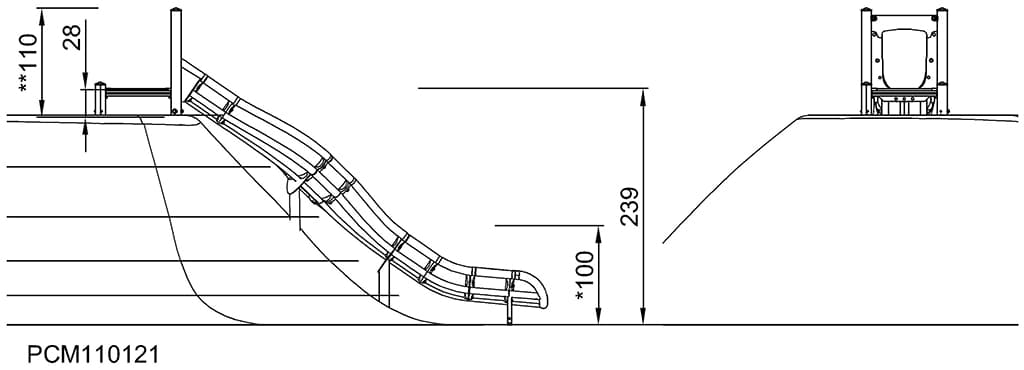

Length
463 cm
Width
161 cm
Height
110 cm
The curved embankment slide motivates fun for all children and those childish at heart. Due to the embankment run loop, children will run up and slide down again and again. Sliding on the embankment slide is a great fun experience as friends can run up or down next to the sliding child. There is room for many children and for different ages and abilities to play together. The embankment hill is a great place for rolling or running too. When children slide they train their core muscles, sitting upright while sliding down. This stimulates their trunk stability, important for avoiding back and neck pains – a growing problem in children due to sedentary lifestyles. Running uphill or downhill they can train their balance and coordination as well as their muscle strength. They can train risk taking in holding back or letting go downhill.
This product, Embankment Slide (PCM110121), is provided by KOMPAN Australia.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of a core produced from 100% recycled material.
Main posts with hot dip galvanized steel footing are available in different materials: Pressure impregnated pine wood posts. Pre-galvanized inside and outside with powder coated top finish steel posts. Lead free aluminum with color anodized top finish. Greenline TexMade posts of 95% post-consumer recycled PE and textile waste.
All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options. The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.
The slides can be chosen in six different colours and three materials: Straight or curved one-piece moulded PE slides, made from 33% recycled post-consumer materials in different colours. Combined EcoCore™ sides and stainless-steel. Full stainless steel in one piece design for more vandalism proof solutions.
KOMPAN GreenLine versions are designed with ultimate environmentally friendly materials with lowest possible CO2e emission factor. TexMade post, EcoCoreTM panels of 95% post-consumer recycled waste and molded PP decks.
Wood version of FSC®-certified (FSC®C004450) pine wood with pressure impregnated base treatment and brown painted top finish. Vertical boards and top ends protected by a unique aluminum profile for high outdoor durability.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
PCM110121-0951
344.42
Total CO₂ emission (kg CO₂e)
2.14
CO₂e/kg (kg CO₂e/kg)
49.39%
Recycled materials
CO₂ friendly
PCM110121-0905
364.09
Total CO₂ emission (kg CO₂e)
2.38
CO₂e/kg (kg CO₂e/kg)
44.64%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
4+ Years
Key user group
4 - 12 Years
Capacity
Inclusive
Yes
Product category
Freestanding Play Equipment
Product line
Slides
Product number
PCM110121
Activities
Balance
Sensory
Slide
Dimensions
Length
463 cm
Width
161 cm
Height
110 cm

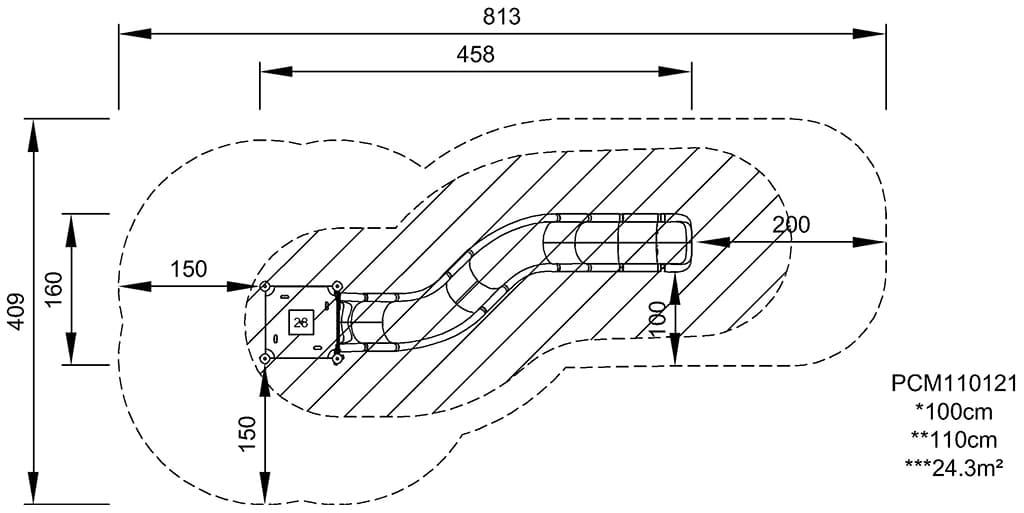

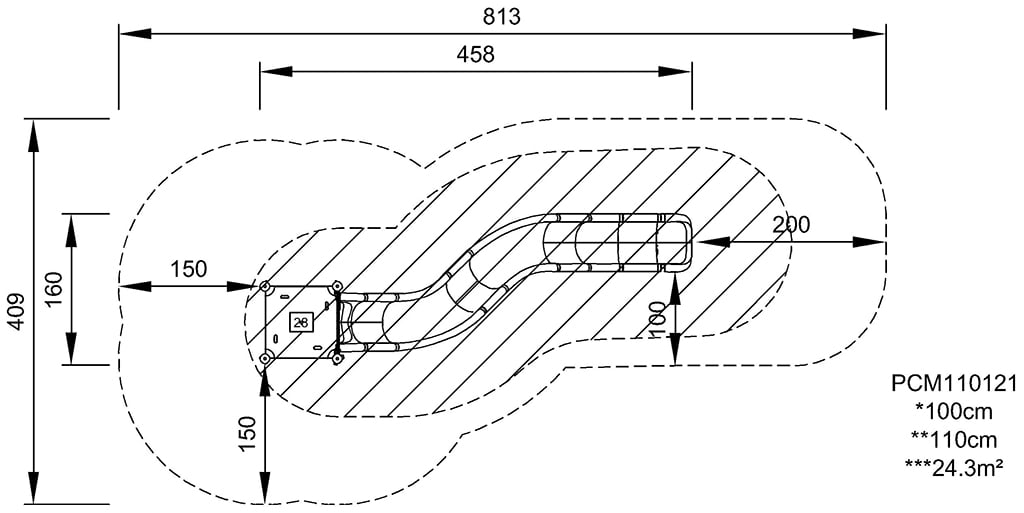

Fall Space Length
813 cm
Fall Space Width
409 cm
Warranties and certificates
EcoCore HDPE
Lifetime
Post
10 years
PP Decks
10 years
PE Slide
10 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Max. fall height
100 cm
Fall space area
24.3 m²
Anchoring options
Surface, In-ground
