Ladder
Physical
cross coordination and muscle strength are developed when children climb the ladder. The climbing also supports leg and arm muscles.
The Mega Frisbee is an awesome structure for any playground. It sets new play standards with its unique, curved form and rich variety of climbing. It will attract children and...
The products might not be exactly as shown
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
26' 8"
Width
27' 1"
Height
9' 4"
The Mega Frisbee is an awesome structure for any playground. It sets new play standards with its unique, curved form and rich variety of climbing. It will attract children and families again and again. On top of the Mega Frisbee there is ample room for socializing and exchange – or just for enjoying the view. Climbing to the top along with being great fun stimulates important social-emotional skills such as courage and self regulation. The transparency of the nets affords a stomach-tickling feeling of height. The varied climbing activities train muscle strength and motor skills: cross-body coordination, proprioception and spatial awareness. These positively affect children's ability to judge distances, which is crucial in navigating the body through space. The swaying ropes on ground level offer a way of climbing, sitting and socializing on ground level also – an asset for younger users.
This product, Mega Frisbee (COR17200), is provided by KOMPAN United States.
Corocord ropes with 19mm diameter or more are special 'Hercules' - type with galvanized six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The metal parts are made of high quality steel, hot dip galvanized inside and outside with lead-free zinc. On the outside, there is an additional layer of powder coating. This ensures both excellent corrosion resistance and colorful design expression.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 7.5 mm.
Fully colored EPDM rubber discs with smooth surface. The moulded EPDM surrounds a hot dip galvanized steel core that ensures both the stability of the discs and durable fixation to the rope.
The aluminium swages of the net are double conical with rounded ends and are as small as safety allows. The overall net design aims at keeping metal parts within the net to an absolute minimum, both in size and number, in order to provide the best possible rope climbing experience.
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR172001-1102
5497.49
Total CO₂ emission (kg CO₂e)
2.67
CO₂e/kg (kg CO₂e/kg)
48.59%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalized offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Belgium
Looking for additional support? Need to request a quote? We are here for you! Please fill out the form below and we will get back to you as soon as possible!
Product details
Age Group
5 - 12 Years
Capacity
Product category
Corocord™ Rope Climbing Playground Equipment
Product line
COROCORD™ Loops
Product number
COR17200
Activities
Balance
Bounce
Climb
Crawl
Sensory
Socialize
Sway
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)

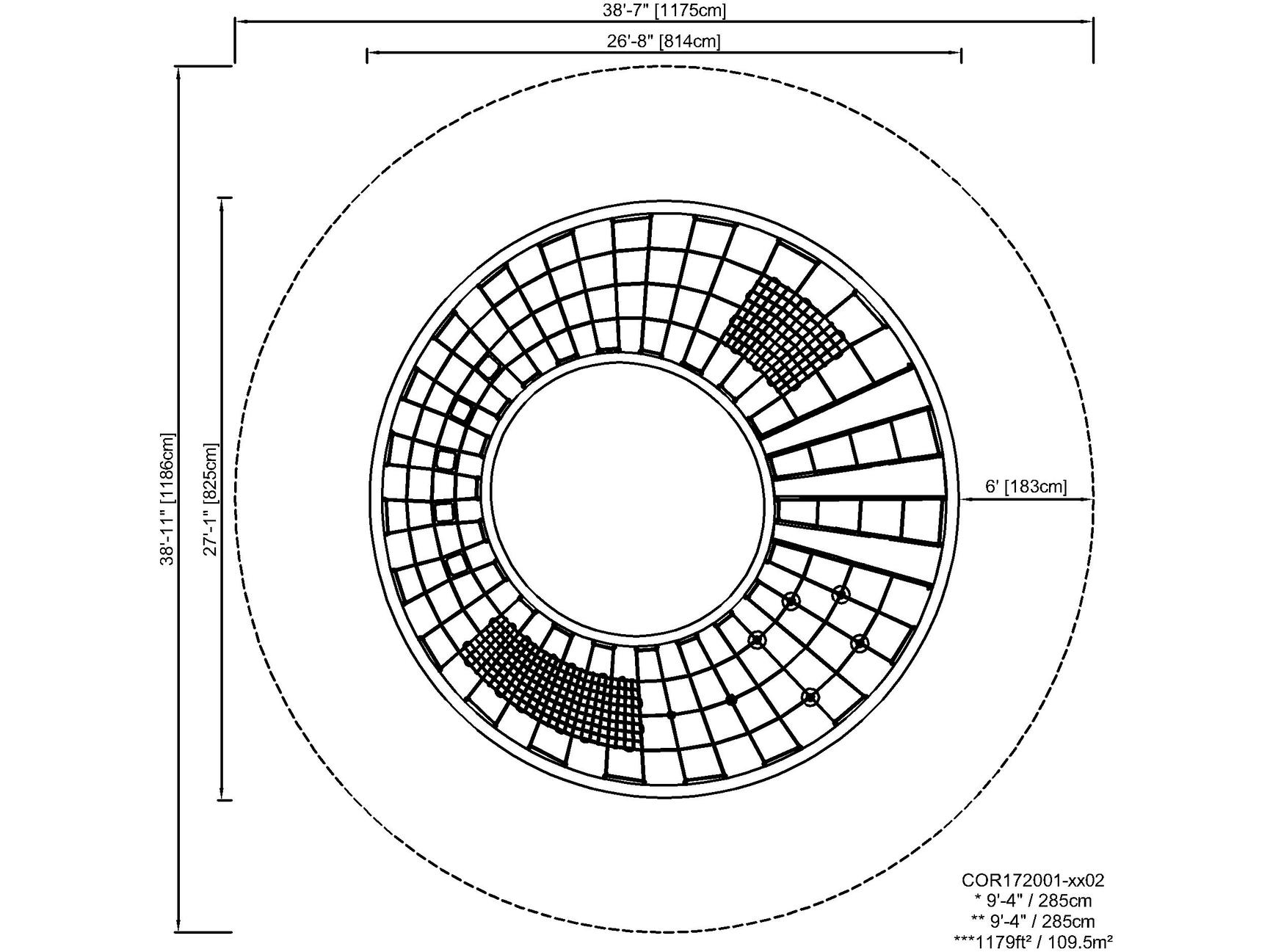

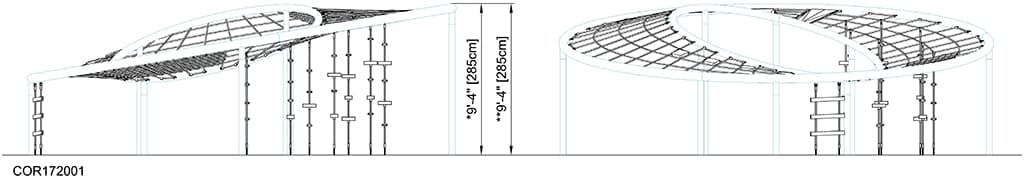

Dimensions
Length
26' 8"
Width
27' 1"
Height
9' 4"
Safety Zone Length
38' 7"
Safety Zone Width
38' 11"
Warranties and certificates
Corocord Rope
10 Years
S-Clamps
10 Years
Aluminum clamps
10 Years
EPDM components
2 Years
Spare Parts Availability
10 Years
Certificates
(ASTM) ASTM F1487 - COMPLIANT
Installation information
Max. fall height
9' 4"
Safety surfacing area
1179 ft²
Anchoring options
In-ground
Downloads
Tender specifications
