Banister bars
Physical
supports coordination, arm and core muscles. Landing strengthens bone density
Social-Emotional
turn-taking and risk-taking.
This four tower structure creates a fun environment that inspires play, encourages movement, and sets the challenges that children in this age group love. For school age children, there is...
Photos are for conceptual purpose only. Deviations can occur.
Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Length
726 cm
Width
660 cm
Height
396 cm
This four tower structure creates a fun environment that inspires play, encourages movement, and sets the challenges that children in this age group love. For school age children, there is nothing like varied, physical and challenging play to make them happy and attracted to this structure. The closed courtyard of play on more levels provides balancing, climbing and sliding activities. A whole world of social interaction goes on in the hammocks, puzzles and hour glass with timer knobs on ground level. The variation in activities makes children play for a long time, again and again. Apart from being great fun for lots of children, this play structure trains arm, leg and core muscles when they climb and hang from their knees on the net rungs. Gross motor skills are stimulated through climb, balance and slide movements on towers, bridges and nets.
This product, Four Tower with Rooves (PCM410121), is provided by KOMPAN Australia.
Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of a core produced from 100% recycled material.
All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options. The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.
Main posts with hot dip galvanized steel footing are available in different materials: Pressure impregnated pine wood posts. Pre-galvanized inside and outside with powder coated top finish steel posts. Lead free aluminum with color anodized top finish. Greenline TexMade posts of 95% post-consumer recycled PE and textile waste.
Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand.
The slides can be chosen in six different colours and three materials: Straight or curved one-piece moulded PE slides, made from 33% recycled post-consumer materials in different colours. Combined EcoCore™ sides and stainless-steel. Full stainless steel in one piece design for more vandalism proof solutions.
Wood version of FSC®-certified (FSC®C004450) pine wood with pressure impregnated base treatment and brown painted top finish. Vertical boards and top ends protected by a unique aluminum profile for high outdoor durability.
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
PCM410121-0951
1850.64
Total CO₂ emission (kg CO₂e)
1.78
CO₂e/kg (kg CO₂e/kg)
70.41%
Recycled materials
CO₂ friendly
PCM410121-0905
1993.08
Total CO₂ emission (kg CO₂e)
2.43
CO₂e/kg (kg CO₂e/kg)
58.75%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
If you have any questions regarding this specific product or your project, we are here to help!
We can create a personalised offer just for you. Please fill out the questionnaire below and we will contact you as soon as possible!
Thank you for reaching out. We will get back to you as soon as possible.
Let's Play!
Looking for support or a quote? We are here to help! Please fill out the form below and we will get back to you as soon as possible.
Product details
Age Group
4+ Years
Key user group
4 - 12 Years
Capacity
Inclusive
No
Product category
Play Systems
Product line
MOMENTS™ Play Systems
Product number
PCM410121
Activities
Balance
Climb
Construct
Crawl
Glide
Hang in arms
Jump
Pull
Sensory
Slide
Socialise
Sway
Wonder
Dimensions
Length
726 cm
Width
660 cm
Height
396 cm

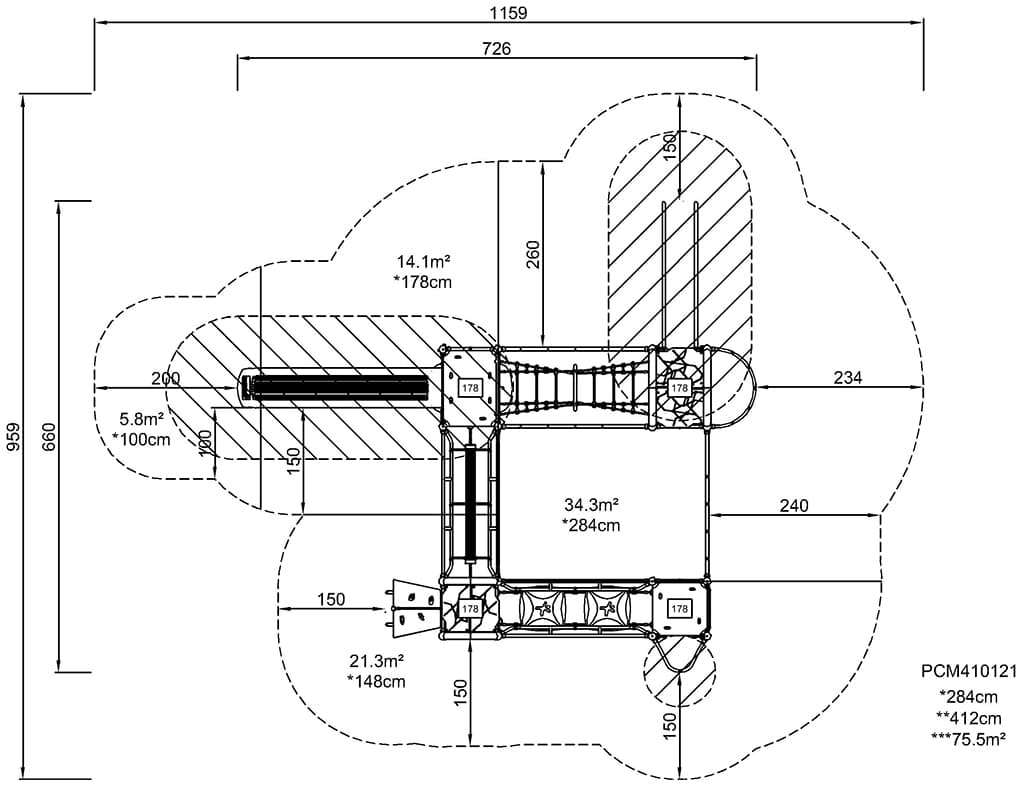

Fall Space Length
1159 cm
Fall Space Width
959 cm
Warranties and certificates
EcoCore HDPE
Lifetime
PP Decks
10 years
Post
10 years
Ropes & Nets
10 years
Spare Parts Guarantee
10 years
Certificates
(AS) AS4685 – PLAY - CERTIFIED
Installation information
Max. fall height
284 cm
Fall space area
75.5 m²
Anchoring options
Surface, In-ground
Downloads
Tender specifications
