The stair and ramp resemble some common everyday obstacles for example walking on an inclining slope and overcoming stairs. The simplest use is just walking back and forth on the module, but with variations in the task, specific skills can be trained. For example, focusing on balance by walking without hand support or focusing on strength and mobility by deliberately using as a long step as possible. The stairs are available in two different versions: normal stairs or steep stairs. These can also be used for simple effective exercises like step-ups and lunges. The ability to walk safely on an inclining or declining slope is very important for the elderly. If body posture is not correctly aligned with the surface, the risk of falling is increased. With support from the rails, this skill can be trained in a safe environment.
Photos are for conceptual purpose only. Deviations can occur.

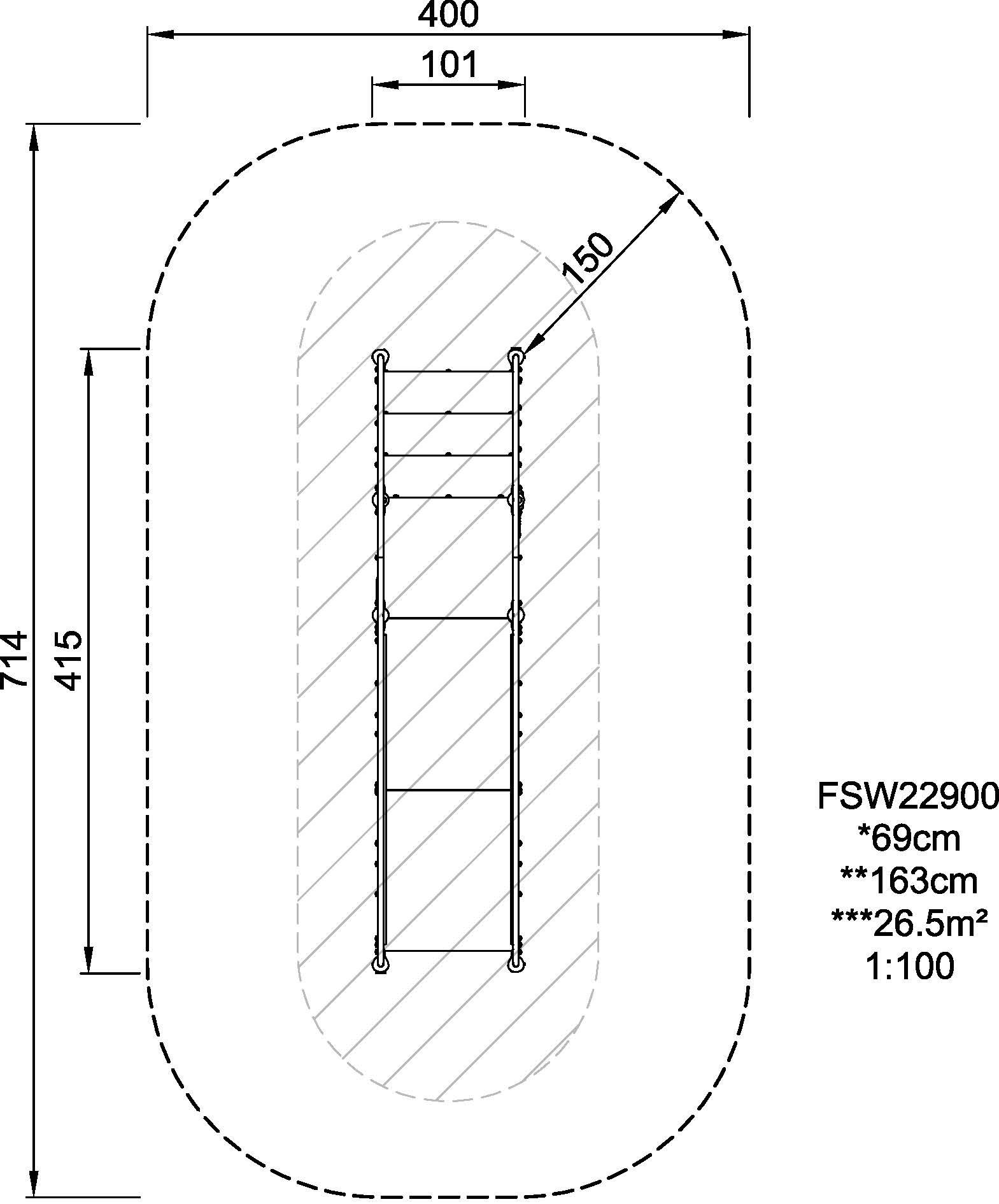

Length
101 cm
Width
415 cm
Height
163 cm
Specifications
The stair and ramp resemble some common everyday obstacles for example walking on an inclining slope and overcoming stairs. The simplest use is just walking back and forth on the module, but with variations in the task, specific skills can be trained. For example, focusing on balance by walking without hand support or focusing on strength and mobility by deliberately using as a long step as possible. The stairs are available in two different versions: normal stairs or steep stairs. These can also be used for simple effective exercises like step-ups and lunges. The ability to walk safely on an inclining or declining slope is very important for the elderly. If body posture is not correctly aligned with the surface, the risk of falling is increased. With support from the rails, this skill can be trained in a safe environment.
This product, Stairs & Ramp (FSW229), is provided by KOMPAN Australia.
Quality that lasts

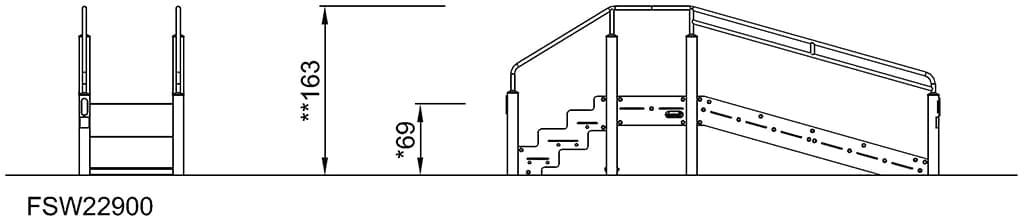

The four-steps are 900x280mm and have a height of 171mm.
The ramp is mounted under a 15 degree angle and has a length of 2300mm. The ramp is made from 5mm aluminium plate with an anti-slip pattern.
The belt seat is made of PUR. All components retain their properties in the temperature range of -30°C to 60°C. and materials are durable without the use of heavy metal stabilities. All decks are supported by unique designed aluminium profiles with multiple attachment options by the usage of pressure moulded aluminium connectors. The HPL decks have a thickness of 17.8mm which has a very high wearing strength and a unique KOMPAN nonskid surface texture.
The railing height is 930mm, and the distance between the railing is 900mm The material used for the railing is hot-dip galvanised steel ø38 mm, a great diameter for a good grip and wrist support.
The information sign is made of a PA6 (Polyamide) and shows the most relevant exercises. When users scan the QR code, this will link them to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN Fitness App, which is programmed with many more exercise alternatives.
The post is made of Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated which is a great protection solution for all climate conditions.
CO₂ emission
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
FSW22900-0902
759.7
Total CO₂ emission (kg CO₂e)
2.91
CO₂e/kg (kg CO₂e/kg)
47.91%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
