The stair is a very common everyday obstacle and maintaining the ability to safely overcome any stairs is very important for elderly people to safely move around in urban environments. The stairs are available in two different versions: normal stairs or steep stairs. This allows for progression in exercise that can fit everyone – for example going from the normal stairs with hand support to the steep stairs without support. The stairs can also be used for simple effective exercises like step-ups, lunges, and even jumping.
Photos are for conceptual purpose only. Deviations can occur.

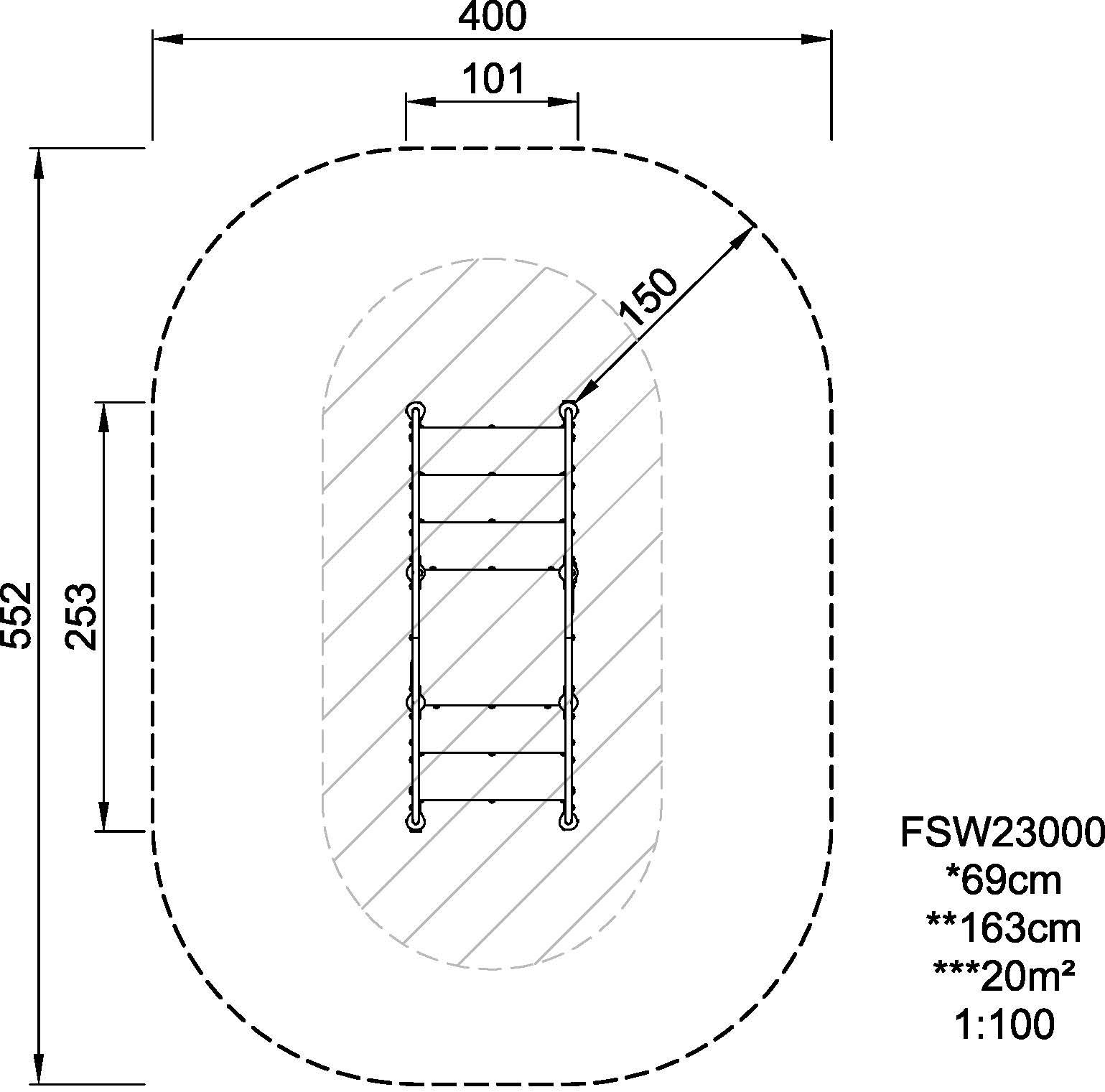

Length
101 cm
Width
253 cm

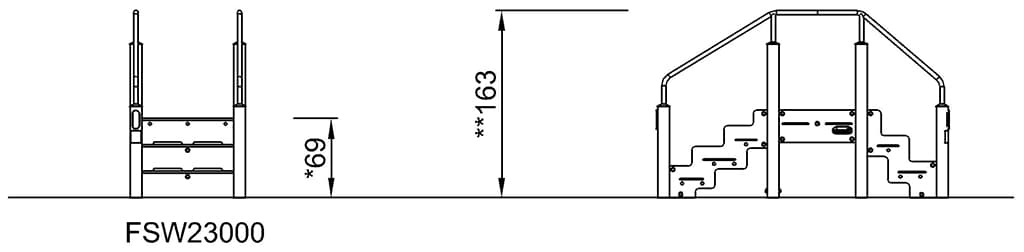

Height
163 cm
Specifications
The stair is a very common everyday obstacle and maintaining the ability to safely overcome any stairs is very important for elderly people to safely move around in urban environments. The stairs are available in two different versions: normal stairs or steep stairs. This allows for progression in exercise that can fit everyone – for example going from the normal stairs with hand support to the steep stairs without support. The stairs can also be used for simple effective exercises like step-ups, lunges, and even jumping.
This product, Double Stairs (FSW230), is provided by KOMPAN Australia.
Quality that lasts
The bar is 1400mm long, with a height of 940mm and is intended as a grip during exercises. The bar is made of hot-dip galvanised steel ø38mm, a great diameter for a good grip and to support the wrist.
The belt seat is made of PUR. All components retain their properties in the temperature range of -30°C to 60°C. and materials are durable without the use of heavy metal stabilities. All decks are supported by unique designed aluminium profiles with multiple attachment options by the usage of pressure moulded aluminium connectors. The HPL decks have a thickness of 17.8mm which has a very high wearing strength and a unique KOMPAN nonskid surface texture.
The post is made of Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated which is a great protection solution for all climate conditions.
The information sign is made of a PA6 (Polyamide) and shows the most relevant exercises. When users scan the QR code, this will link them to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN Fitness App, which is programmed with many more exercise alternatives.
The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
KOMPAN fitness products are available in Orange, RAL2010 and Grey, RAL7012 as standard. All other RAL colours are available on upon request to meet your project's vision and to match the natural surroundings.
CO₂ emission
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
FSW23000-0902
438.19
Total CO₂ emission (kg CO₂e)
2
CO₂e/kg (kg CO₂e/kg)
54.56%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
